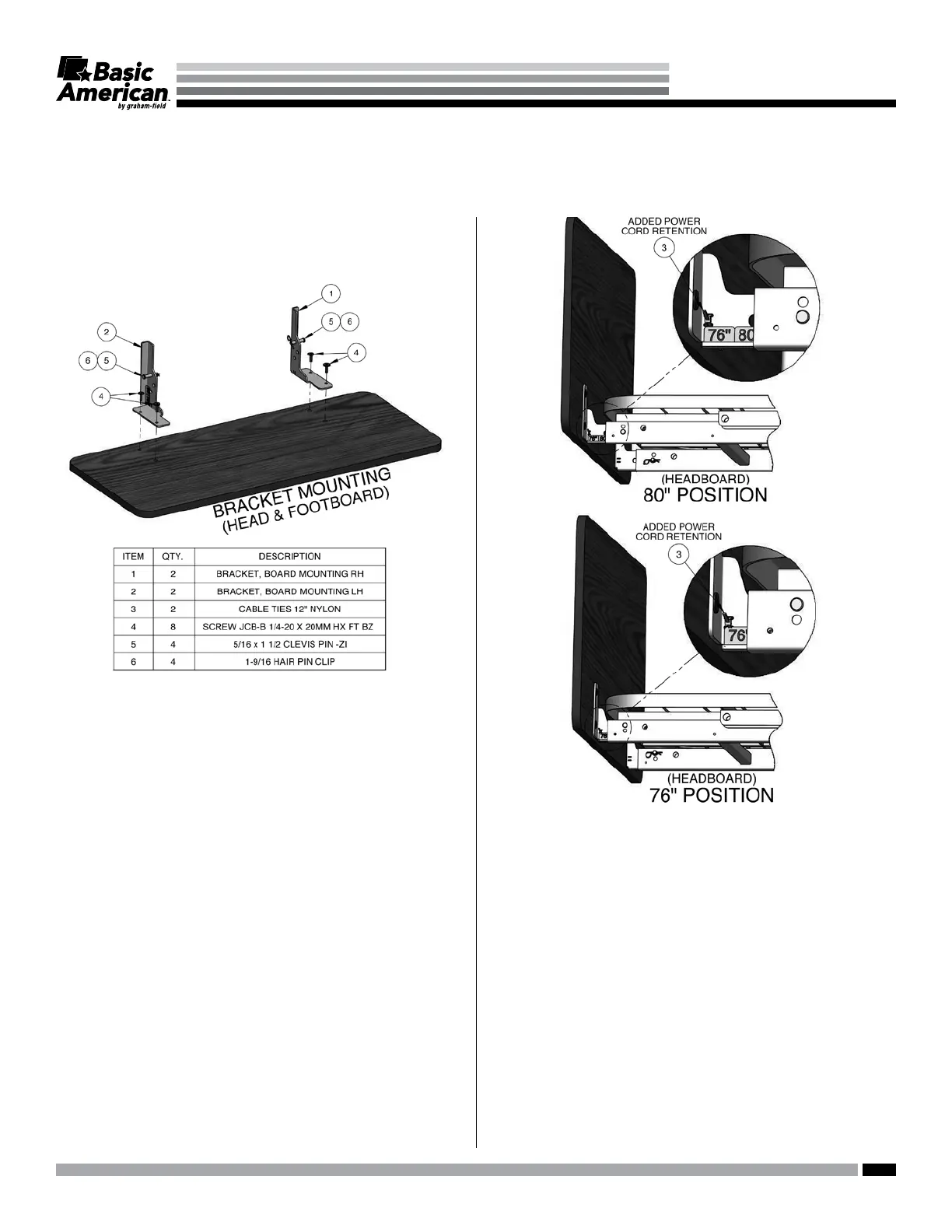

HEADBOARD AND FOOTBOARD ASSEMBLY / INSTALLATION
MATRIX 4000 SERIES
MATRIX 4000 SERIES HEADBOARD
INSTALLATION *
1.
The headboard may come with four
pre-installed
inserts - if not already installed,
assemble the four inserts into the outside of
the headboard as shown above.
2. Position a right (#1) and left (#2) mounting
bracket on the inside of the headboard with
headboard mounting holes facing outward
as shown above.
3. Align the bracket top holes with the
headboard top holes.
4. Insert a screw (#4) through each of the top
holes and bottom holes and screw into each
insert. Tighten loosely (hand tight) until after
brackets are fastened to the bed frame.
5. At the head deck end, slide the brackets into
the main frame rail hollow ends.
6. FOR 80" BEDS: Slide the brackets in until
the bracket hole aligns with the lower rail hole
as shown above. 76" and 80" bracket labels
will be visible. Pin brackets to frame with
Clevis Pins and Hair Pins provided.
7. FOR 76" BEDS: Slide the mounting brackets
in until the bracket hole aligns with the upper
rail hole as shown above. Only 76" bracket
label will be visible. Pin brackets to frame
with Clevis Pins and Hair Pins provided.
8. Tighten screws with the hex key included in
the kit.
GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999.0908-190C
11
