PLUGGING IN THE FOOTBOARD STAFF CONTROL
STEP 1 - ATTACHING THE FOOTBOARD
The Matrix series bed features a footboard Staff Control; however, the footboard is ordered separately
with your bed because of the variety of board styles available. If ordered at the same time as the bed, the
Staff Control Assembly and Shroud Cover will be pre-installed to the Footboard at the factory.
STEP 2 - CONNECTING THE CABLES: REFER
TO DETAIL A AT RIGHT
a) Insert the T-Cable end (extending out the foot
end with phone jack) into the round plug, making
sure the phone jack is seated correctly inside the
female plug (arrow to arrow – see DETAIL A at
right and photos below).

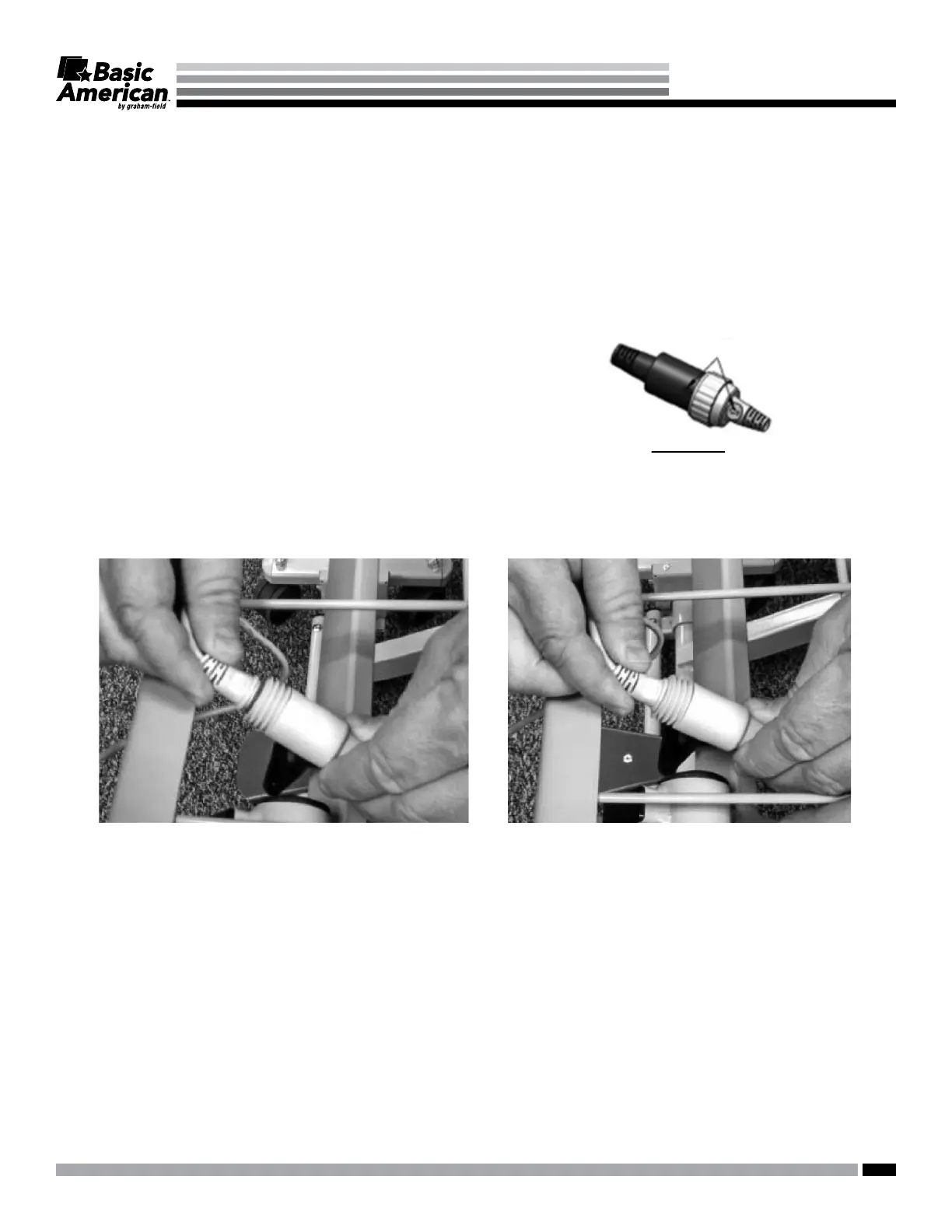

Improper Connection
(not completely seated)
Proper Connection
(completely seated)
b) Screw on the round lock cap onto the Staff Control female plug to secure as shown above.
DETAIL A:
Ensure lock end caps
are screwed on securely
Align
Arrows
GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999.0908-190C
