MATRIX 5000 SERIES WIREFORM WALLSAVER INSTALLATION
WALLSAVER ASSEMBLY

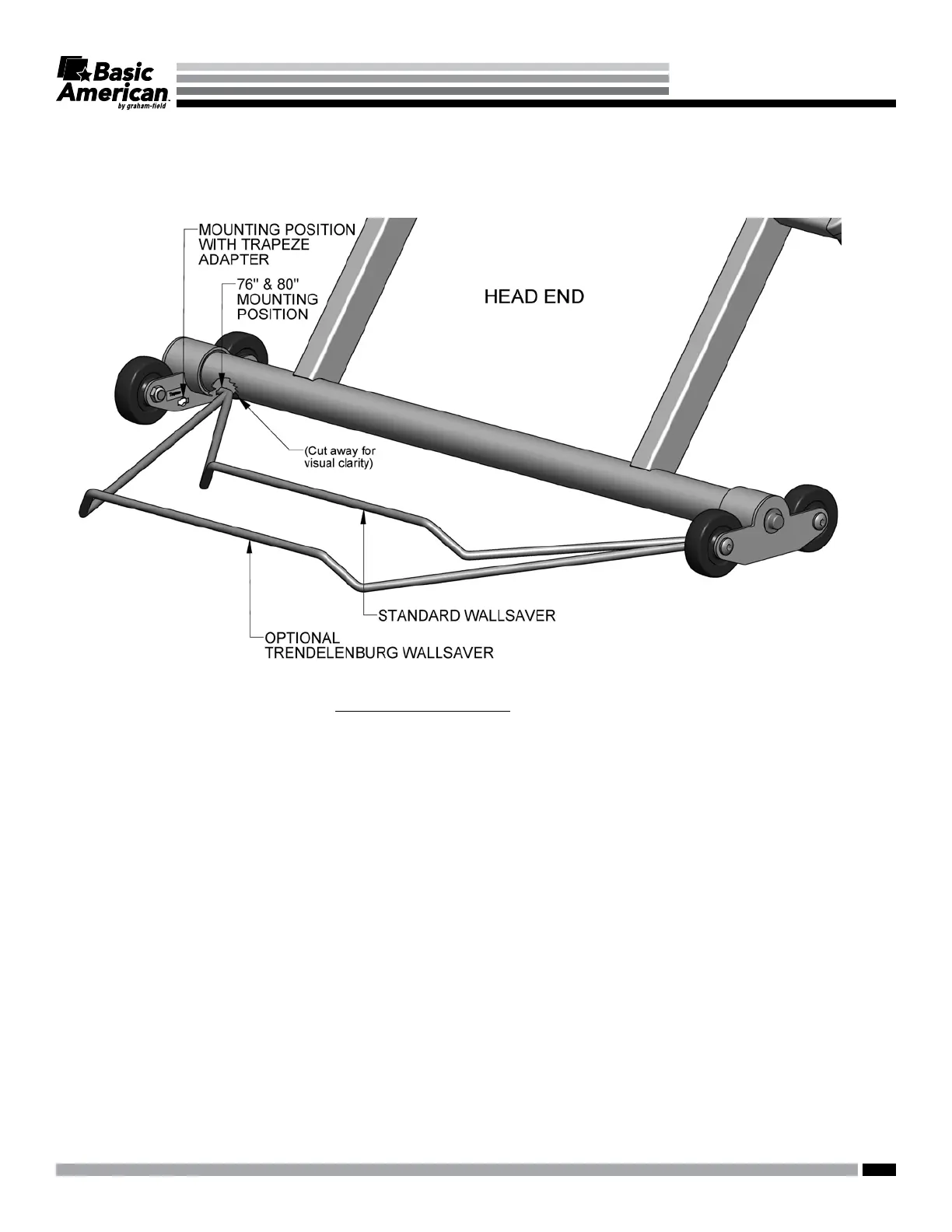

1. Position the Wireform Wallsaver with bent end facing upward and tab ends facing inward as shown above.
2. Determine the position desired (see WALLSAVER POSITIONS below).
3. Gently squeeze the wallsaver tab ends inward toward the center of the wallsaver and, holding the tabs parallel with the
caster base holes, slide the tabs into the slots while letting the wallsaver gently expand outward.
4. Turn the wallsaver downward until it rests on the oor.
WALLSAVER REMOVAL
1. To remove or move the wallsaver to a new position, raise the wallsaver off the oor until the end tabs are horizontal.
2. Squeeze the ends toward the center of the wallsaver until the end tabs slide out of the caster base slots.
WALLSAVER POSITIONS
1. The Matrix 5000 Series wallsaver features two standard positions for easy bed / mattress length recongurations - 76"
and 80".
2. For 76" beds, position the wallsaver ends in the BACK caster base slots (toward the foot end). For 76" beds using an
optional Trapeze unit, position the wallsaver ends in the FRONT caster base slots (toward the head end.)
3. For 80" beds, position the wallsaver ends in the FRONT caster base slots (toward the head end).
4. If you plan to use an optional Trapeze unit for an 80" length bed conguration, you will need to order a separate
“custom wallsaver” in order to have the correct depth to protect your walls.
GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999.0908-190C
17
