Graham Field Basic American MATRIX Series User Manual

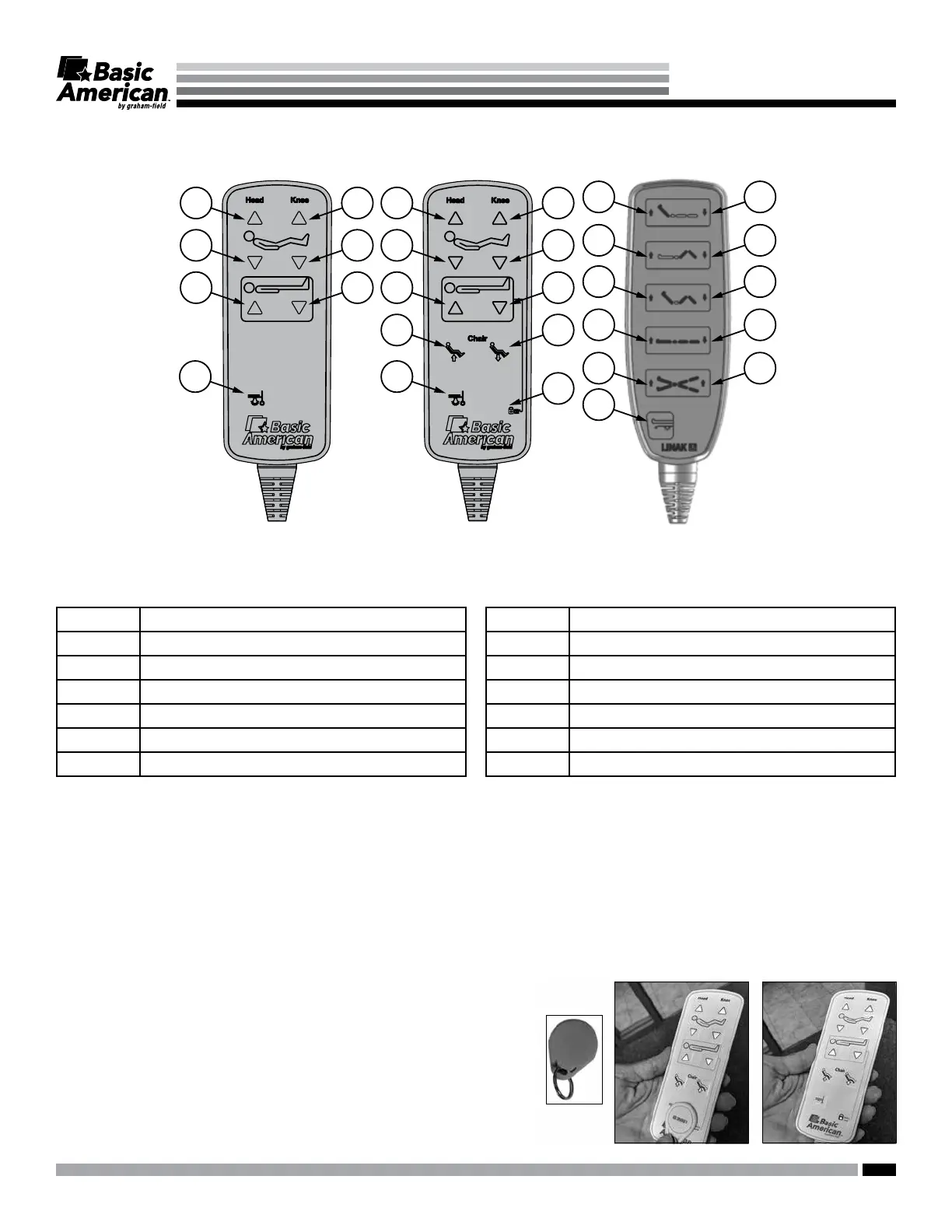

MATRIX SERIES HAND CONTROL PENDANT OPERATION
HAND CONTROL PENDANTOPERATION
BUTTON FUNCTION
1 HEAD DECK ANGLE UP
2 HEAD DECK ANGLE DOWN
3 HI/LO UP (RAISE ENTIRE BED)
4 HI/LO DOWN (LOWER ENTIRE BED)
5 KNEE AND FOOT DECK ANGLE UP
6 KNEE AND FOOT DECK ANGLE DOWN
7 SET TO CHAIR POSITION
8 UNDO CHAIR POSITION
9 REVERSE TRENDELENBURG POSITION
10 TRENDELENBURG POSITION
11 OPTIONAL UNDERBED LIGHT
12 OPTIONAL HI/LO FUNCTION LOCKOUT
MATRIX SERIES WITH
ADVANCED POSITIONING
HAND CONTROL PENDANT
OPTIONAL ACCESSORY:
MATRIX SERIES WITH
TRENDELENBURG /
REVERSE TRENDELENBURG
HAND CONTROL PENDANT
MATRIX SERIES WITH
STANDARD POSITIONING
HAND CONTROL PENDANT
5
6
4
1
2
3
5
6
4
1
2
3
8
12
7
2
6
8
1
5
7
4
10
3
9
1111
11
BUTTON FUNCTION
1 HEAD DECK ANGLE UP
2 HEAD DECK ANGLE DOWN
3 HI/LO UP (RAISE ENTIRE BED)
4 HI/LO DOWN (LOWER ENTIRE BED)
5 KNEE AND FOOT DECK ANGLE UP
6 KNEE AND FOOT DECK ANGLE DOWN
BUTTON FUNCTION
7 SET TO CHAIR POSITION
8 UNDO CHAIR POSITION
9 REVERSE TRENDELENBURG POSITION
10 TRENDELENBURG POSITION
11 OPTIONAL UNDERBED LIGHT
12 OPTIONAL HI/LO FUNCTION LOCKOUT
NOTE: The MATRIX Series Hand Control Pendant can be plugged into the T-Cable plugs on either
side of the bed for easy access. The opposite side of the T-Cable should always have the provided
cap attached for safety.
The two vertical ends of the double T-Cable run toward the foot end of the bed, with one vertical end
plugging directly into the control box (or optional Underbed Light if your bed has that feature) and the
other longer end runs along the tie rod and extends out the foot end and plugs into the Staff Control cable.
Optional HI/LO Function Lockout (Hand Control Pendant with Advanced Positioning ONLY,
shown at above center)
A Lockout Key, shown at right, is used to activate/
deactivate the HI/LO Function Lockout by holding it over
the center bottom portion of the hand control as shown
at center right. The Lockout LED indicator will turn on/off
when activated/deactivated.
Lockout
Key
GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999.0908-190C
25
