Graham Field Basic American MATRIX Series User Manual

MECHANICAL AND ELECTRICAL INFORMATION
MATRIX SERIES-MECHANICAL
NOTE: All dimensions are ±0.25 inches
Specication 4100 (35") 4100 (42") 5100 (35") 6100 (35")
Overall Bed Length (with boards and wallsaver) 76" 81.2" 81.2" 82.7" 81.2"
80" 83.1" 83.1" 83.9" 83.1"
Sleep Deck Width 35" 42" 35" 35"
Bed Width Including Boards 36" 42" 36" 36"
Maximum Height (oor to top of mattress support deck) 27" 27" 27" 27"
Minimum Height (oor to top of mattress support deck) 8.95" 8.95" 8.95" 8.95"
Maximum Head / Back Deck Angle 68° 68° 68° 68°
Maximum Knee / Foot Deck Angle 25° 25° 25° 25°
Maximum Trendelenburg / Reverse Trendelenburg Angle 12° 12° 13° 12°
Maximum Safe Working Load WITH WEIGHT EVENLY
DISTRIBUTED - includes bedding, resident / patient,
support surface, and accessories
450 lb
(204.1 kg)
450 lb
(204.1 kg)
450 lb
(204.1 kg)
450 lb
(204.1 kg)
Bed Mass (without assist devices or boards) 150 lb
(68.0 kg)
157 lb
(71.2 kg)
157 lb
(71.2 kg)
157 lb
(71.2 kg)
MATRIX SERIES-ELECTRICAL (ALL MODELS)
Power / Frequency 120 Volt / 50/60 Hz
Output Rating 24Vdc
Maximum Amperage 4.0 Amps
Classication Class 1, Type B
Power (Electrical) Cord #18 AWG 3 Conductor Type SJT
Mode of Operations 10% Max. Duty Cycle (2 minutes on / 18 minutes off)
Battery Pack and Charger can be purchased separately as accessories.

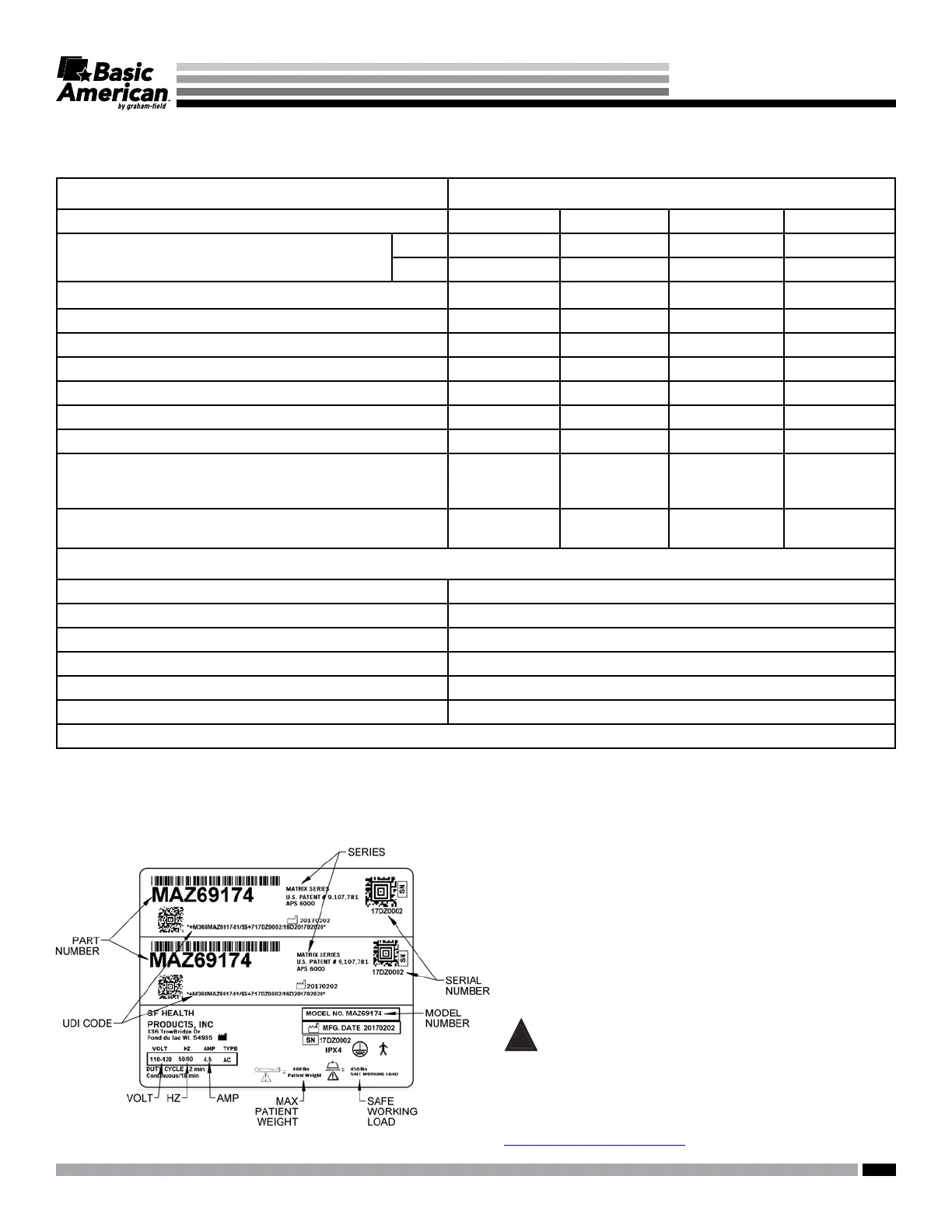

TYPICAL MATRIX SERIES BED IDENTIFICATION LABELS
with Grounded Electrical Cable
Bed labels are an important part of identifying the bed’s
make and model when ordering replacement parts. The
Serial Number is essential if you are claiming parts or
service under warranty. These helpful labels can be
located on the main frame rails, immediately below the
sleep decks on either side of the bed.
Have this IMPORTANT information ready when calling
our Customer Service or Technical Support staff at
1.770.368.4700; it will allow us to better assist you and
quickly answer your questions and concerns.
!
WARNING: Do not modify this equipment without
authorization from GF Health Products, Inc.
NOTE: For Matrix Series Service Parts, Technical
Assistance, and Information, call our Customer
Service Department at 1.770.368.4700. For a
list of Matrix Series bed service parts, visit
www.grahameld.com.
GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999.0908-190C
MATRIX SERIES
8
