On PLUS, TWIN and EURO products the pipe ends for connecting to a remote system are in the top
compartment (shown on the below fig. 1 – 3). Both pipes are clearly marked in order to avoid connecting the
cabinet wrongly. Both connection pipes coming out of the cabinet are 3/8”.
The pressure transmitter, which must be connected to the suction line, by the installer, is lying in the top
compartment. This transmitter is connected to a detachable connection wire, which is connected inside the
controller box. (length approx. 1,5 meter out of the controller box)
Fig. 1 Fig. 2

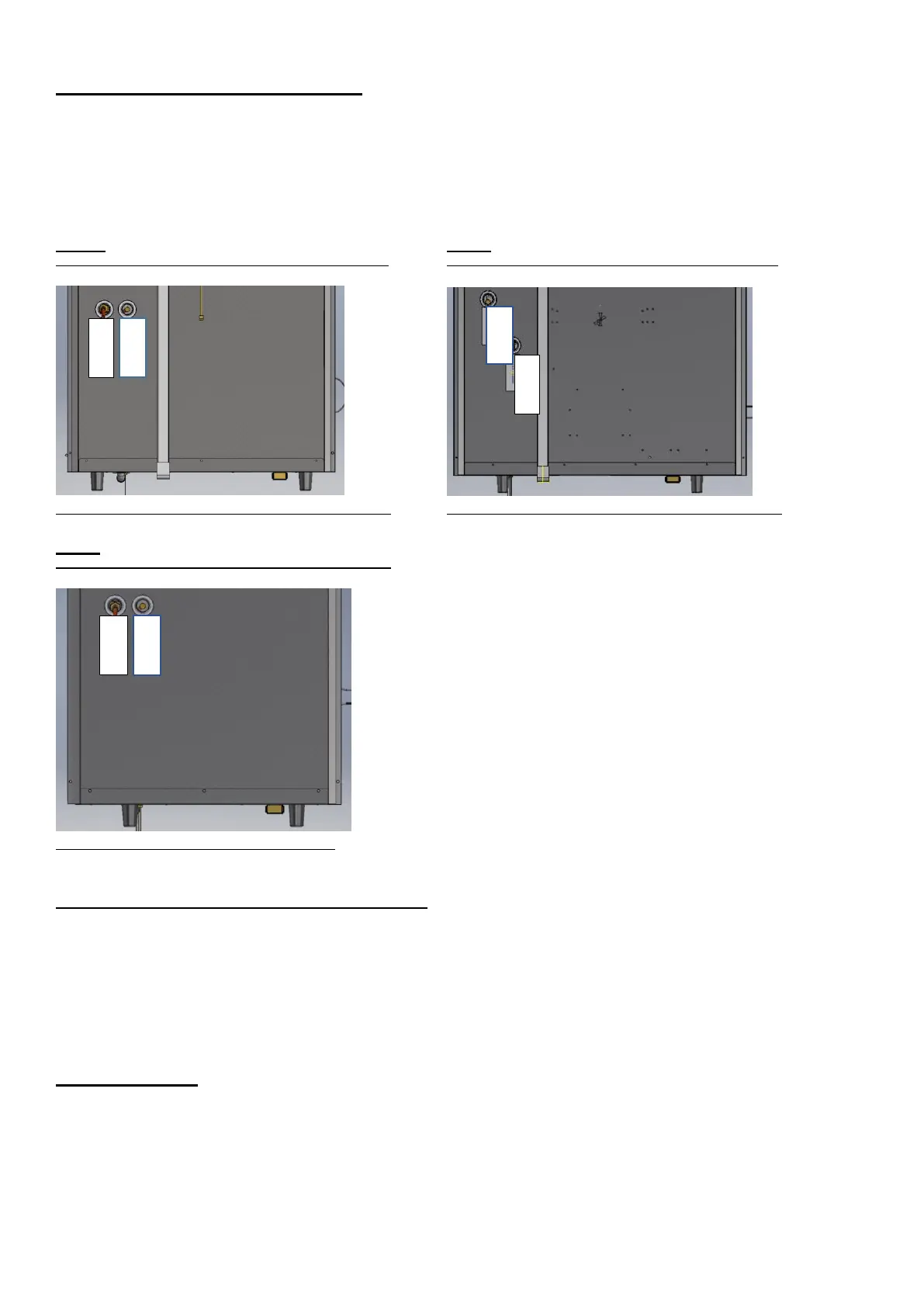

Top view showing pipe connections on ECO PLUS cabinets Top view showing pipe connections on ECO TWIN cabinets
BACK OF CABINET BACK OF CABINET
Fig. 3
Top view showing pipe connections on ECO EURO cabinets
BACK OF CABINET
Drain water on PLUS, TWIN and EURO products
These cabinets are delivered with a re-evaporation tray with an electrical heater (100 Watt), positioned
underneath the cabinet. The heaater is controlled by the main controller. This is done so that the cabinets
can be used where there is no external drain available. If there is an external drain available or there is a
possibility of connecting the cabinet drain outlet to an external drain pump, one of these solutions is always
recommendable in order to save energy. If the cabinet drain water outlet can be connected to one of the two
alternative solutions, the tray and the 100 Watt heater should be removed prior to installing the cabinet. As a
minimum the heater must be disconnected in the controller box.
On MIDI products the pipe ends for connecting to a remote system are on the rear of the cabinet (shown on
the below fig. 4). Both pipes are clearly marked in order to avoid connecting the cabinet wrongly. Both
connection pipes coming out of the cabinet are 3/8”.
The pressure transmitter, which must be connected to the suction line, by the installer, is lying in the bottom
compartment. This transmitter is connected to a detachable connection wire, which is connected inside the
controller box. (length approx. 2,5 meter out of the controller box).
