Grammer MSG45/421 - Removing;Installing Backrest Cushion

GRAMMER repair manual for seat MSG45/421 – February 2020
Material No. 1 447 263

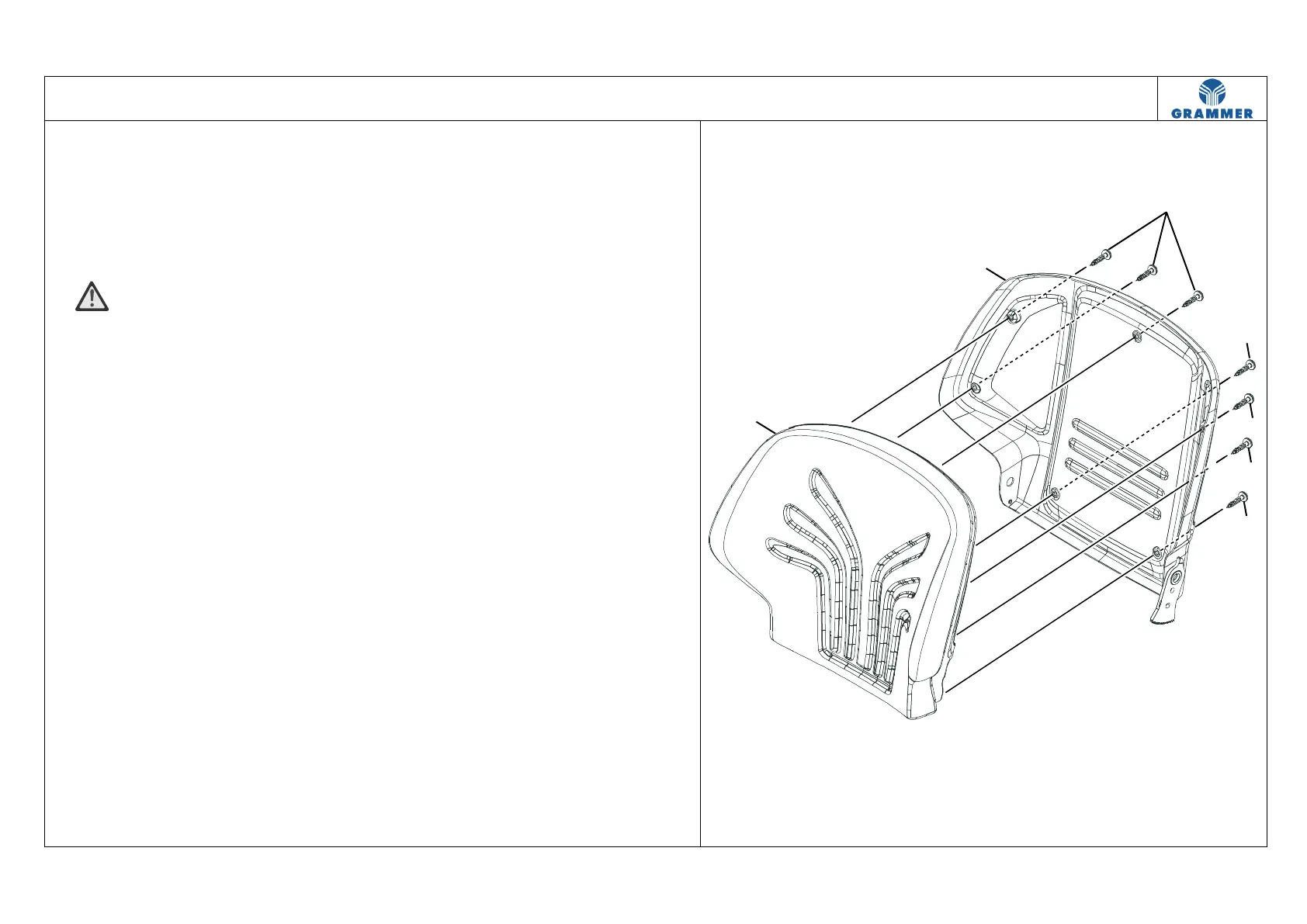

3.1 Removing/installing backrest cushion
Page 1 of 1
Removal, installation
1 Open the document box.
2 Unscrew the seven cup head screws (3).
Installation instruction:
Cup head screw (3), 3.5 ± 0.5 Nm.
3 CAUTION danger of injury
caused by the back plate (2) jerking
forward!
If the backrest cushion (1) has been
removed, the back plate (2) must be
supported when activating the handle
for backrest angle adjustment.
4 Remove the backrest cushion (1) from
the back plate (2).
5 Installation is carried out in reverse
order.
3505
3
3
3
2
1
3
3
