Grammer MSG45/421 - Component Overview

GRAMMER repair manual for seat MSG45/421 – February 2020
Material No. 1 447 263
2.1 Component overview
Page 1 of 2

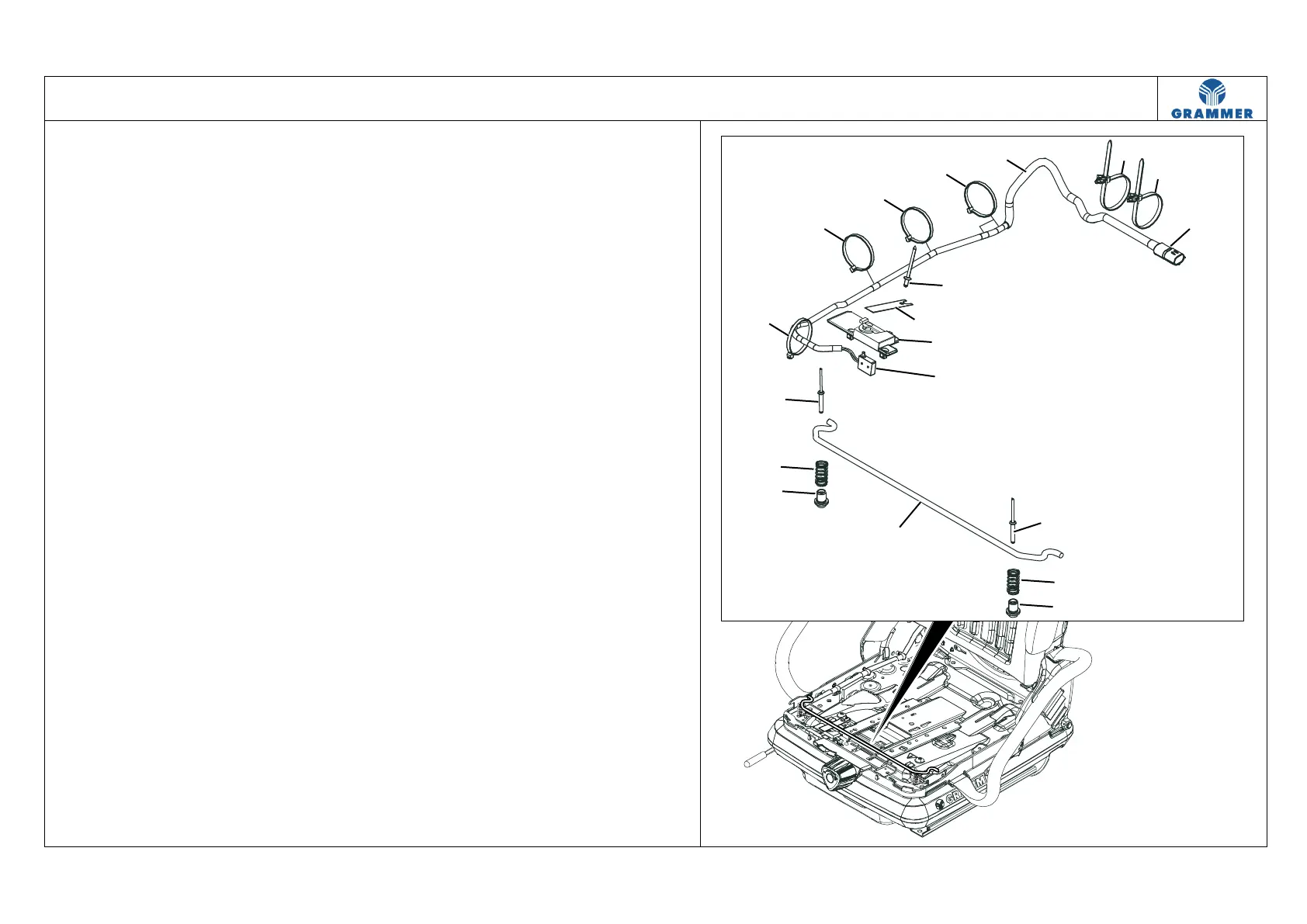

Seat switch installation overview
(1) Seat switch cable harness
(2) Cable tie with plug-in anchor
(3) On-board power supply connector
(4) Blind rivet
(5) Pressure spring
(6) Bushing
(7) Switch bracket
(8) Cable ties
(9) Seat switch
(10) Cover
(11) Switch plate
(12) Blind rivet
3507
1
11
3
7
4
2
2
5
6
5
6
4
10
9
12
8
8
8
8
