Grammer MSG45/421 - Removing;Installing Back Plate with Backrest Bearing Completely

GRAMMER repair manual for seat MSG45/421 – February 2020
Material No. 1 447 263
3.4 Removing/installing back plate with backrest bearing completely
Page 1 of 2
Removal, installation
1 Remove the backrest cushion
(Chap. 3.1).
2 Remove the seat cushion (Chap. 3.2).
3 Remove the lap belt and buckle
(Chap. 3.6).
4 Remove the right-hand and left-hand
cover (Chap. 3.3).

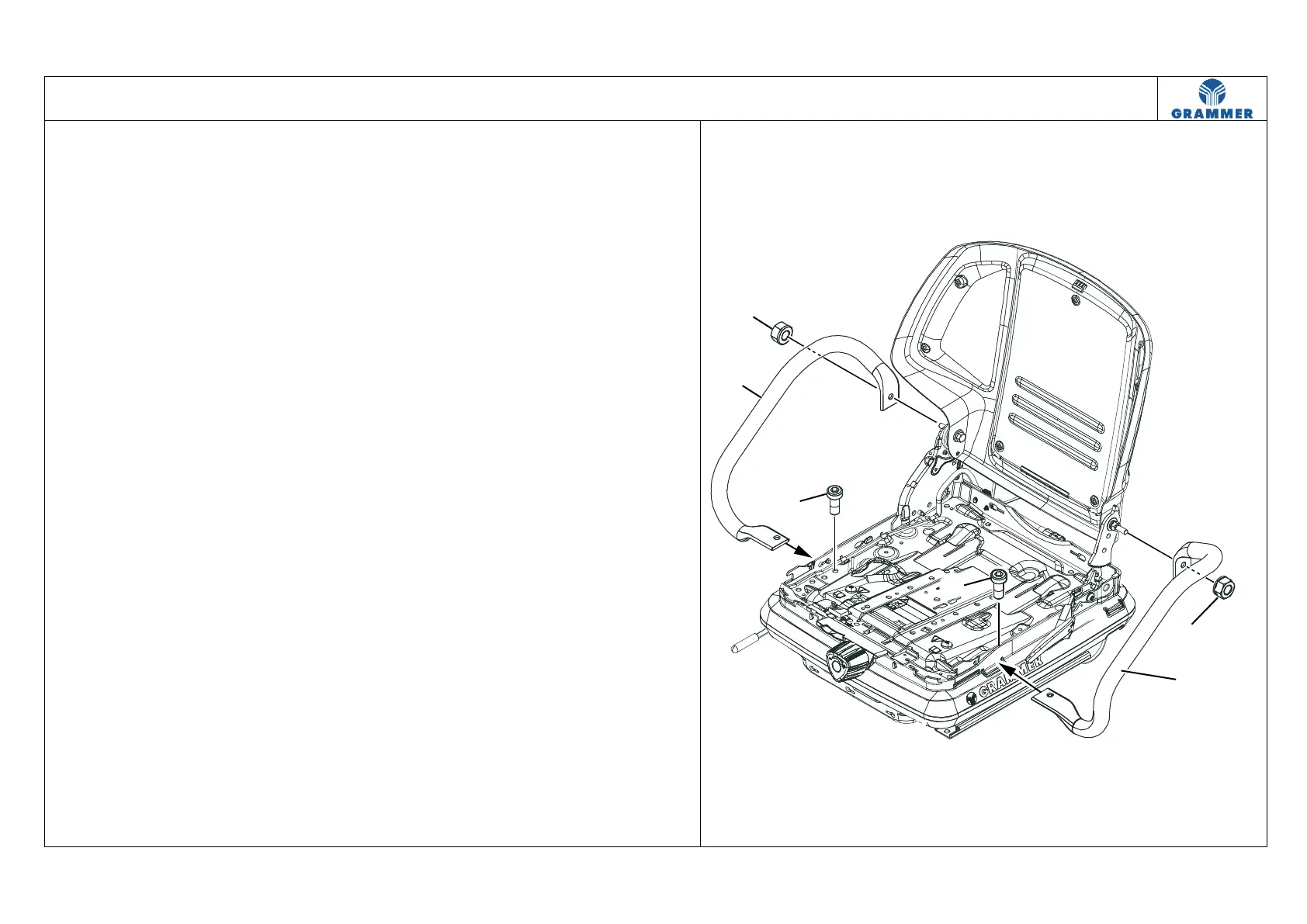

5 Unscrew the right-hand and left-hand
flange nut (2).
Installation instruction:
Flange nuts (2), 25 ± 5 Nm.
6 Unscrew the right-hand and left-hand
socket head screw (4) and remove the
right-hand (1) and left-hand holder (3)
from the seat.
Installation instruction:
Socket head screws (4), 25 ± 5 Nm.
3511
1
3
4
2
2
4
