Grammer MSG45/421 - Removing;Installing Lap Belt and Buckle

GRAMMER repair manual for seat MSG45/421 – February 2020
Material No. 1 447 263
3.6 Removing/installing lap belt and buckle
Page 1 of 1

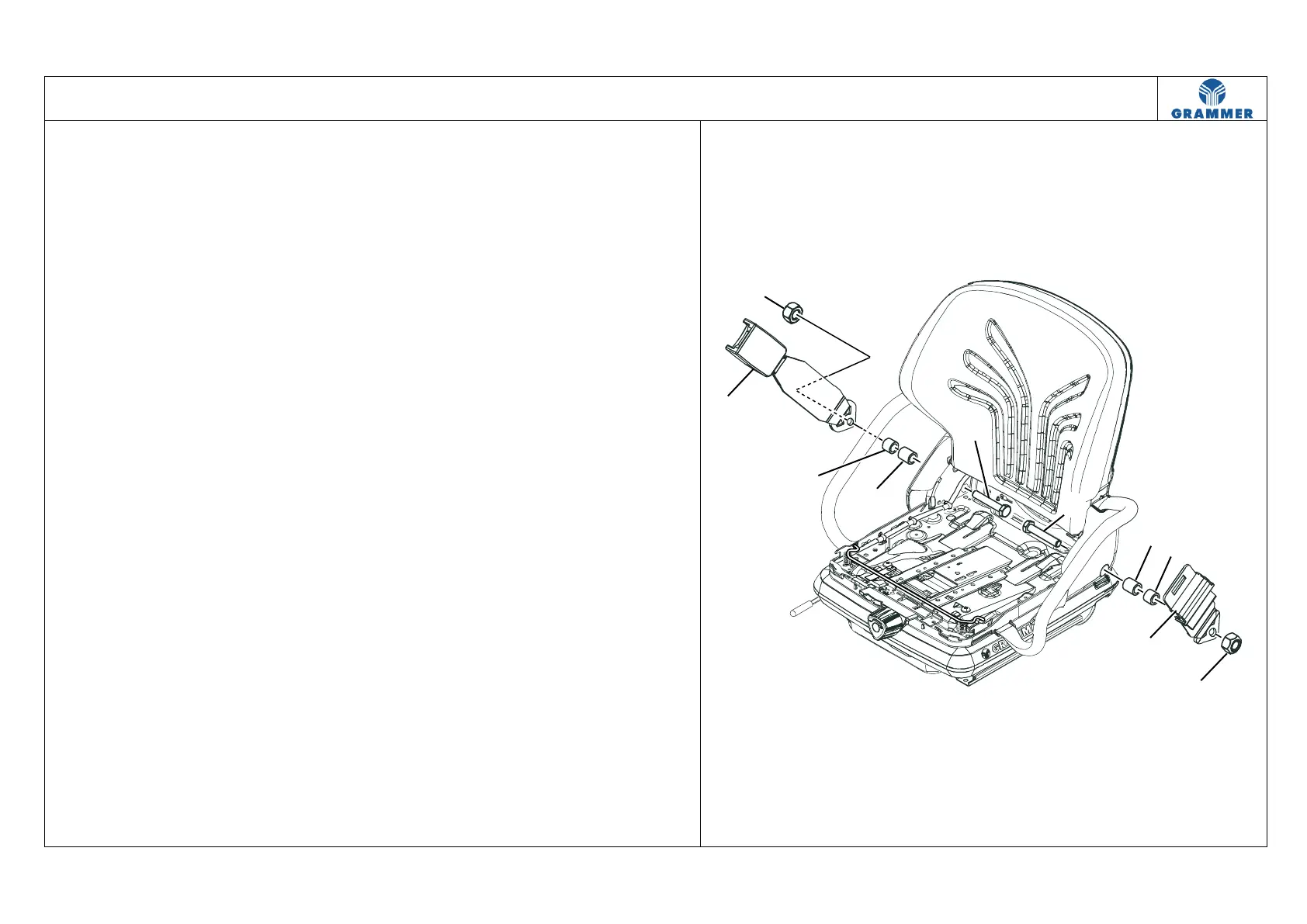

Removal, installation
1 Remove the seat cushion (Chap. 3.2).
2 Unscrew the hexagon nut (2).
Installation instruction:
Hexagon nut (2), 50 Nm.
3 Pull the buckle (1) and short (3) and long
(4) bushings off the hexagon bolt (5).
4 Unscrew the hexagon nut (9).
Installation instruction:
Hexagon nut (9), 50 Nm.
5 Pull the lap belt (10) and short (8) and
long (7) bushings off the hexagon
bolt (6).
6 Remove two hexagon head bolts
(5 and 6).
7 Installation is carried out in reverse
order.
3513
4
6
2
1
9
3
5
7
8
10
