Automated Operation
Page 7
BONDING THE BURNER
NOTE: The Burner insert contains a bonding lug under the bottom of the
burner. See Figure 2.
1. Loosen the setscrew.
2. Insert the bond wire into the hole.
3. Tighten the setscrew until the bond wire is secured into place.
Bonding Lug /
Bond Wire Insert
Setscrew

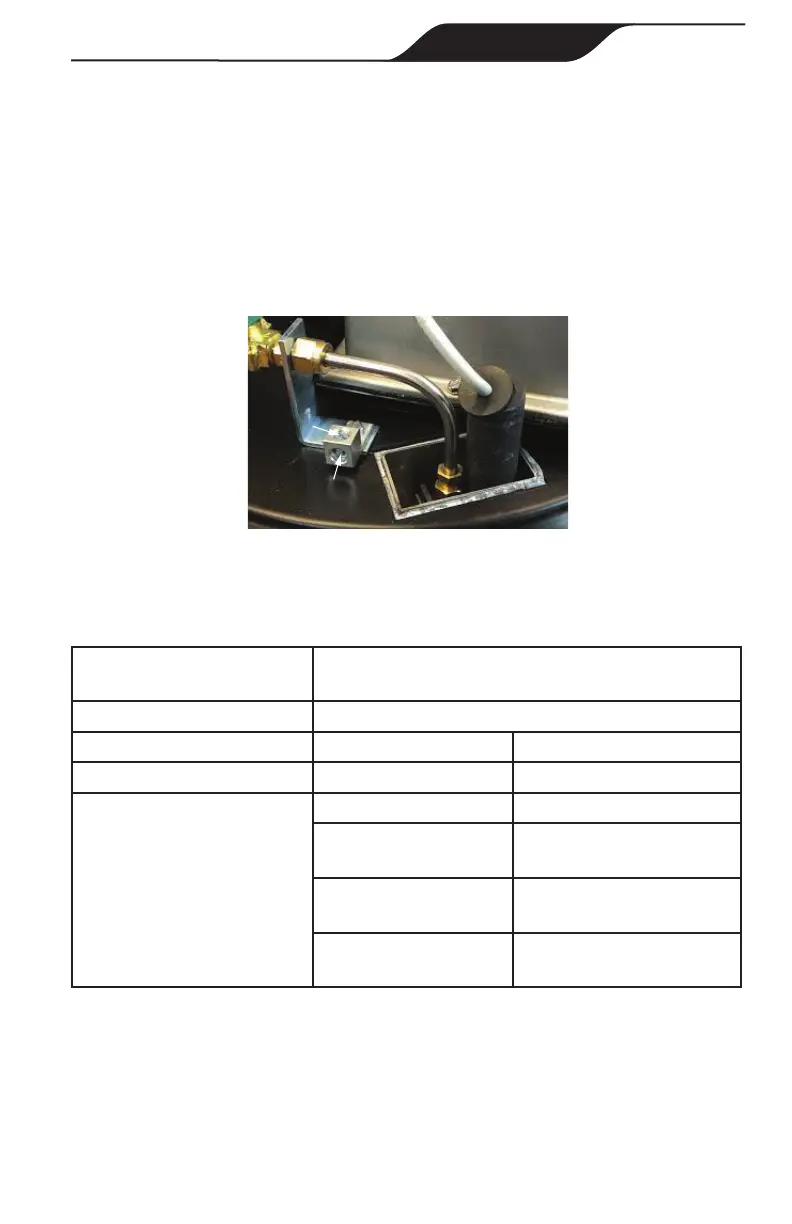

Figure 2. Bonding Lug on Burner Assembly
3.2 Gas and Electric Requirements
Input Voltage
120 VAC / 60 Hz to Grand Effects
®
Control
Panel
Output Voltage 12 VAC
Gas Type Natural Propane
Gas Pressure (Nominal) 7” wc 11” wc
Gas Flow
1 Bowl System 60,000 - 80,000 btu/hr
2 Bowl System
120,000 - 160,000 btu/
hr
3 Bowl System
180,000 - 240,000 btu/
hr
4 Bowl System
240,000 - 320,000 btu/
hr
Note: Check with your gas supplier to verify gas ows and pressures
available at the location of your installation. In many cases utility
companies will install larger meters at no charge to accommodate
larger ows.
