INSTALLATION, CONNECTIONS, AND ADJUSTMENTS

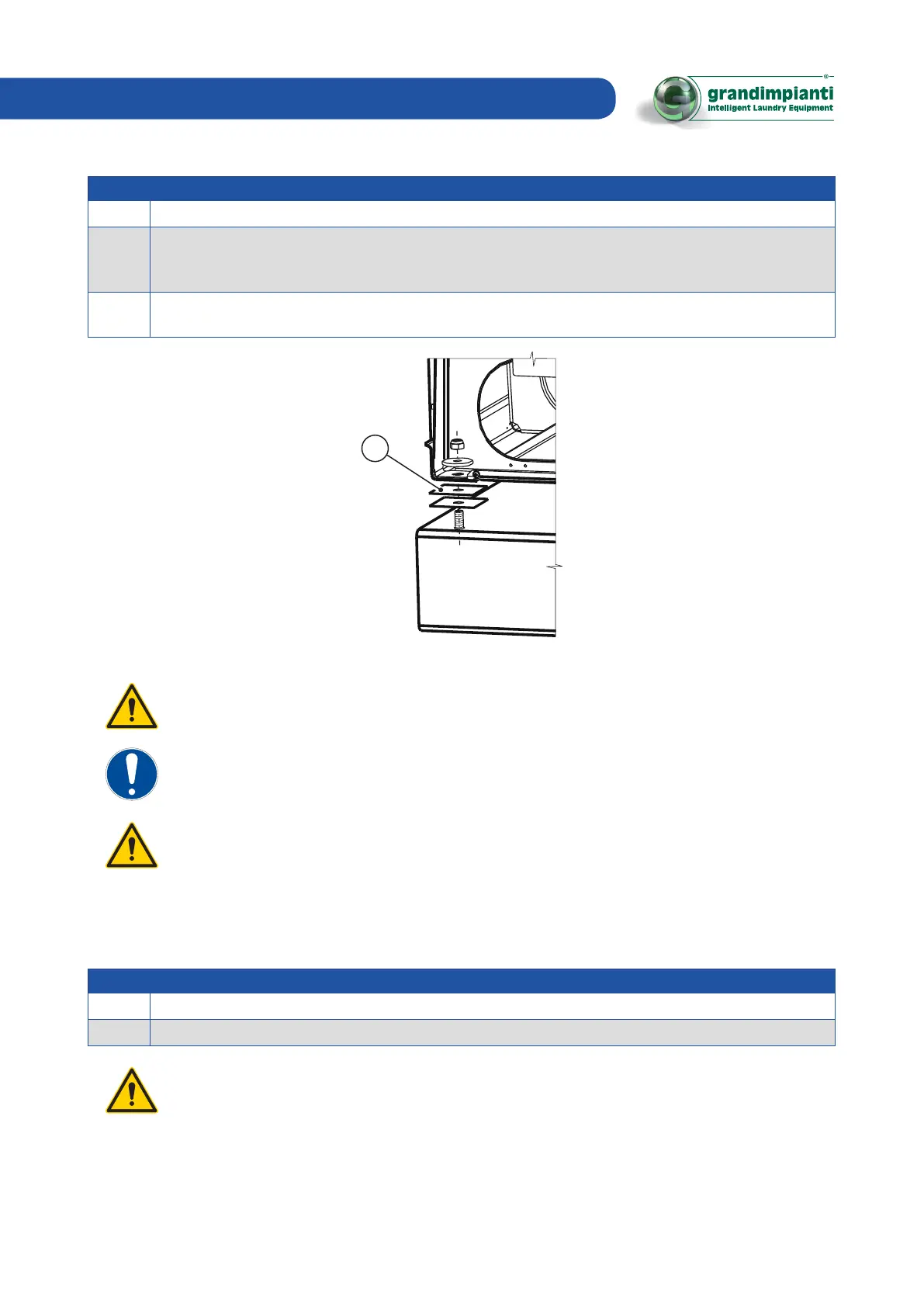

Then proceed to secure the device to the floor (or metal base, only for GWM/GWN) models, as described below:
Step Action
1 Place the appliance on the drilled holes.
2
Make sure the appliance has a steady, horizontal position in all corners. If this is not the case, balance the appliance by
inserting stainless steel supports or “A” galvanised spacers (not supplied) between the appliance frame and the floor.
Note: The support size must match the size of the appliance frame in correspondence of the fastening bolts (80x80mm)
3
Secure the appliance to the floor using M16 (mechanical or chemical) anchor bolts with a minimum length of 150 mm
(not supplied). Tighten the nuts with a torque of at least 100 Nm.
A
WARNING!
Tighten the bolts only after checking the appliance for actual stability and proper levelling.
IMPORTANT!
If the appliance is not secured to the floor, it may move and cause damage to people and/or things.
WARNING!
Always make sure that the appliance is properly levelled.
In case of subsequent movements, levelling and securing operations must always be performed.
Proceed to remove the brackets securing the drum during transport(2 brackets at the front and two at the rear) (only for
GWH models).
After removing the transport brackets:
Step Action
1 Reattach the front, central rear, lower rear and upper panels.
2 Make connections to the mains connections required.
WARNING!
Do not operate the appliance without having first removed the brackets.
