INSTALLATION, CONNECTIONS, AND ADJUSTMENTS
LIQUID DETERGENT INTRODUCTION PUMP CONNECTION (OPTIONAL)
WARNING!
The appliance connections must be carried out by a qualified installer, trained by the Manufacturer.

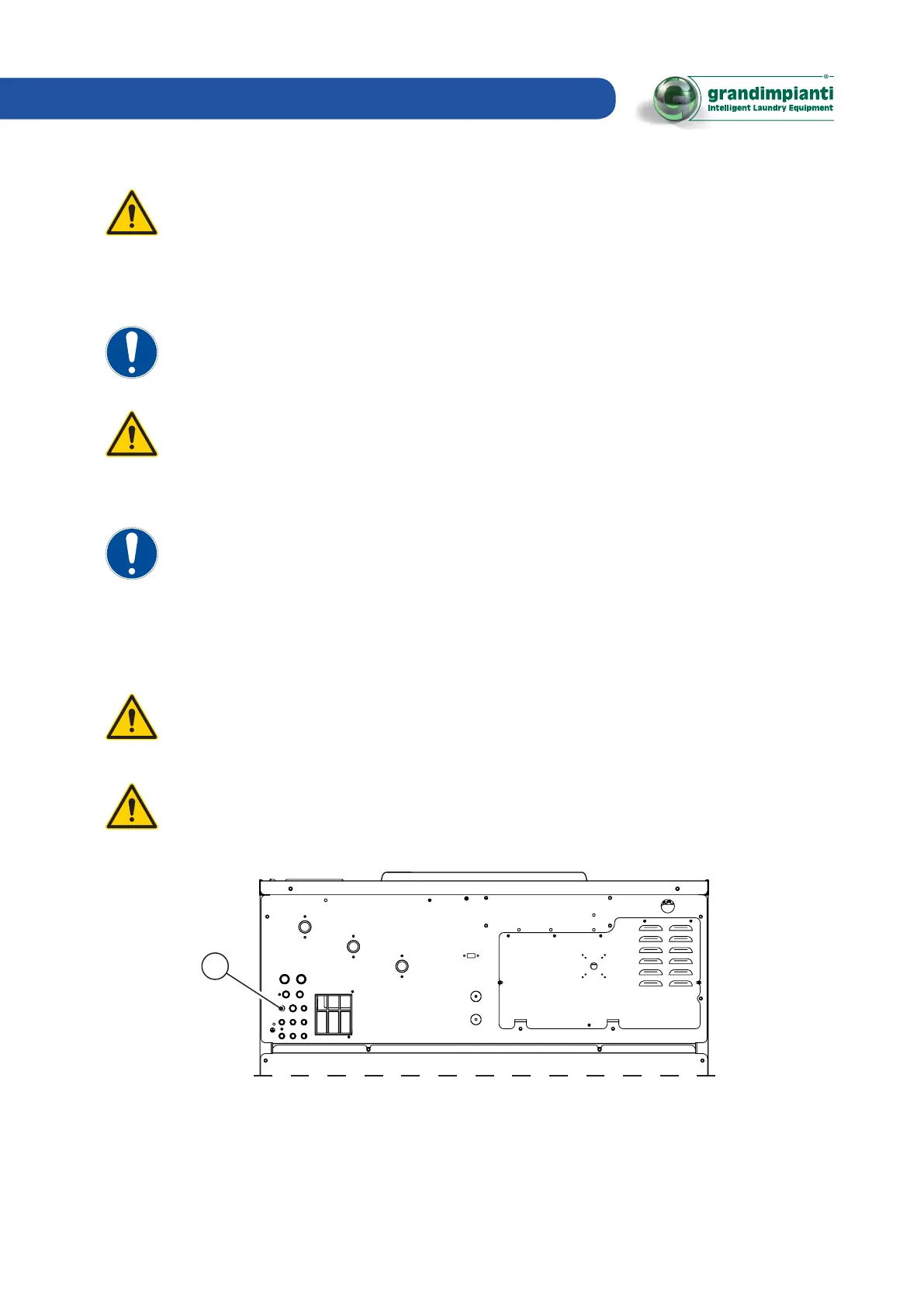

In the back of the device there are 13 inputs (1) for the hydraulic connection of the liquid detergent automatic dispensing system. Three
different diameters are available to allow the connection of the different sections of pipes that can be provided with the automatic
dispensing systems.
IMPORTANT!
Use pumps for liquid detergents with sufficient flow velocity, so that the required amount is conveyed
in a short time (less than 30 seconds).
WARNING!
Before connecting, remove with a tool the inner membrane plugging the hole to be used.
On the rear panel is a plastic tube connector for liquid detergent hoses. Depending on the number of pumps used for liquid detergents,
drill 8 mm Ø holes (max. 8) in the connecting section for each pump.
IMPORTANT!
Use the openings on the left for connecting the pumps.
The pumps resommended flow is 10-60 l/h.
In the connecting section there are three connecting pipes with an internal diameter of 12 mm. These connecting pipes are to be
used only for conveying liquid detergent mixed with water.
Drill 11.5 mm Ø holes in the pipes. These connecting pipes are normally closed. Drill holes only in the pipes to be used.
WARNING!
Before using the appliance, remove the particles produced by drilling as they may clog hoses and
holes.
WARNING!
Check that the hose connection is sufficiently tightened. Any leaks of chemical substances may cause
serious injury, and severe damage to the appliance. If one of the connecting pipes is open, close it
and cover the hole with the cap provided.
