Grandstream Networks GDS3710 Connection Guide

P a g e | 8
GDS3710 Input/output Connection Guide
J4
(Special)
2.0mm
1
GND
Wiegand Power
GND
Black
Both Input and Output
MUST be connected
2
WG_D1_OUT
Wiegand Output
Signal
Orange
GDS3710 function as Output
of Card Reader, Connect Pin
1, 2, 3
3
WG_D0_OUT
Brown
4
LED
Wiegand Output
LED Signal
Blue
For External Card Reader; Or
GDS3710 as Receiver Only
5
WG_D1_IN
Wiegand Input
Signal
White
For External Card Reader
Connect Pin 1,4,5,6,7,8
6
WG_D0_IN
Green
7
BEEP
Wiegand Output
BEEP Signal
Yellow
For External Reader Only
8
5V
Wiegand Power
Output
Red
For External Card Reader
Only.
12VDC powered External
Card Reader must use own
power source, can NOT use
this Pin.
Note:
Alarm In and Alarm Out are just electronic lock, they are either open to block the current or open to let the
current pass through, therefore a third party power supply is needed to power the device connected to the
GDS3710 via Alarm In or Alarm Out.

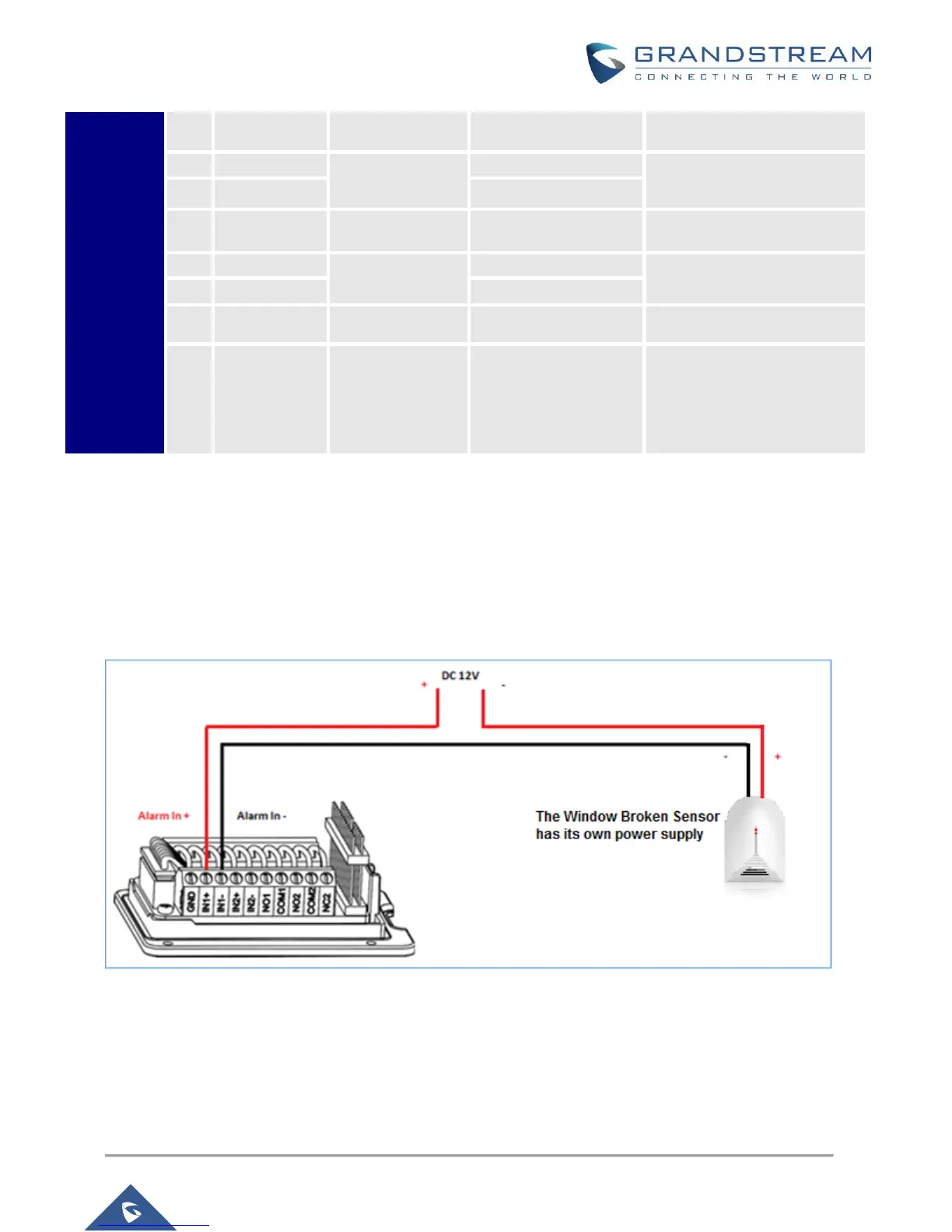

- Alarm In Connection Example
Connect Alarm (IN1+, IN1-) or (IN2+, IN2-) to appropriate wires in order to receive signal from the third
party device as shown below.
Figure 5: Alarm Input Example
- Alarm Out Connection Example
Connect Alarm (NO1, COM1) to appropriate wires in order to receive signal from the third party device as
shown below.
