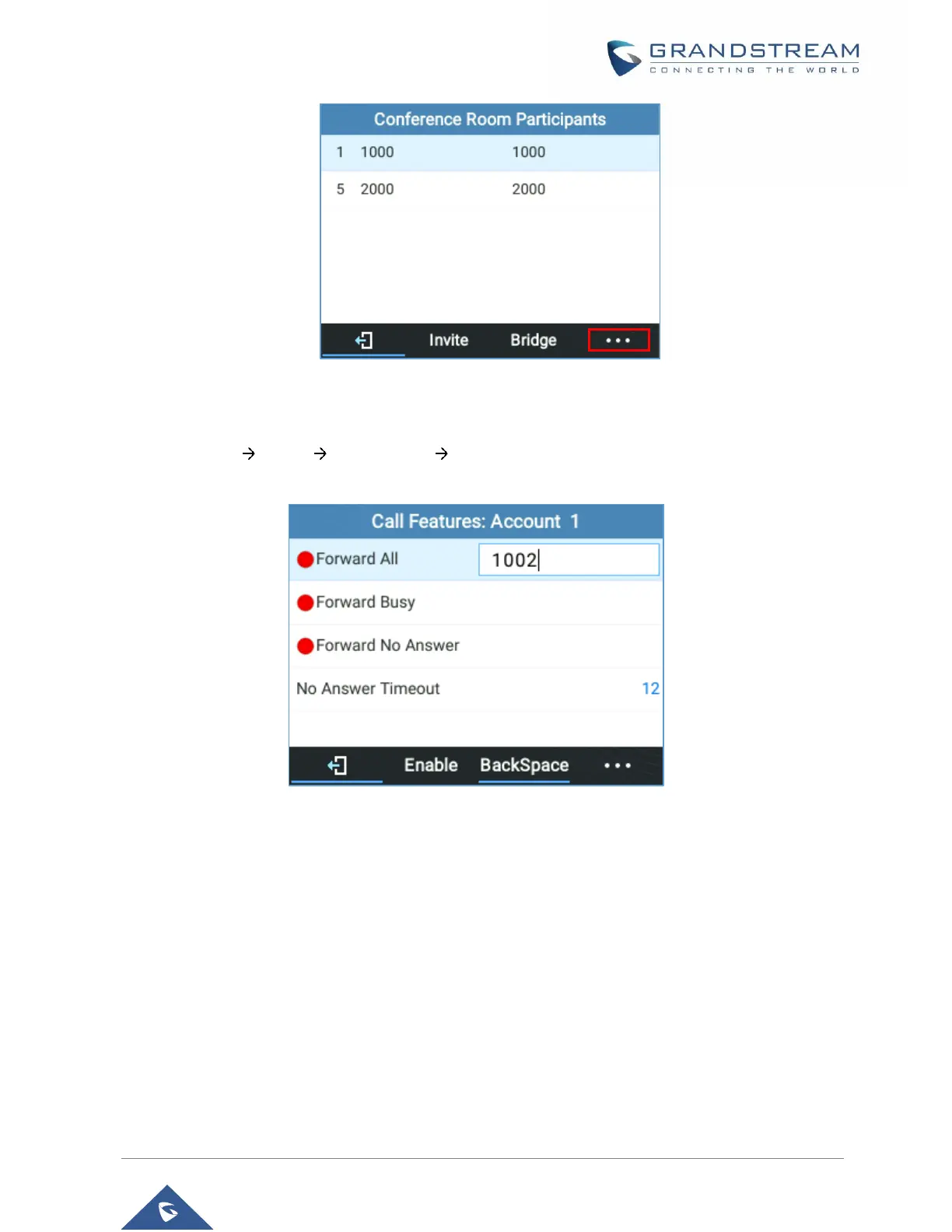

Figure 39 : UCM Conference Menu - More

Call Forwarding

Under Menu (OK) Phone Call Features Account X.

• When disabled the LCD screen will look like the following figure:

Figure 40: Disabled Call Forward

• When the feature is enabled, the phone’s LCD screen will show the following figure.

Main Page
