Grandstream Networks HT802 User Guide

P a g e | 13
HT802 User Guide
Table 2: Definition of the HT802 Connectors
Connecting HT802
The HT802 is designed for easy configuration and installation. To connect your HT802, please follow the
steps above:
1. Insert a standard RJ11 telephone cable into the p hone port and connect the other end of the
telephone cable to a standard touch-tone analog telephone.
2. Insert the Ethernet cable into the internet or LAN port of the HT802 and connect the other end
of the Ethernet cable to an uplink port (a router or a modem, etc.)
3. Insert the power adapter into the HT802 and connect it to a wall outlet.
4. The Power, Ethernet, and Phone LEDs will be solidly lit when the Phone Adapter is ready for use.
The HT802 Analog Telephone Adaptor is an all-in-one VoIP integrated device designed to be a total
solution for networks providing VoIP services with various VoIP features and functions.

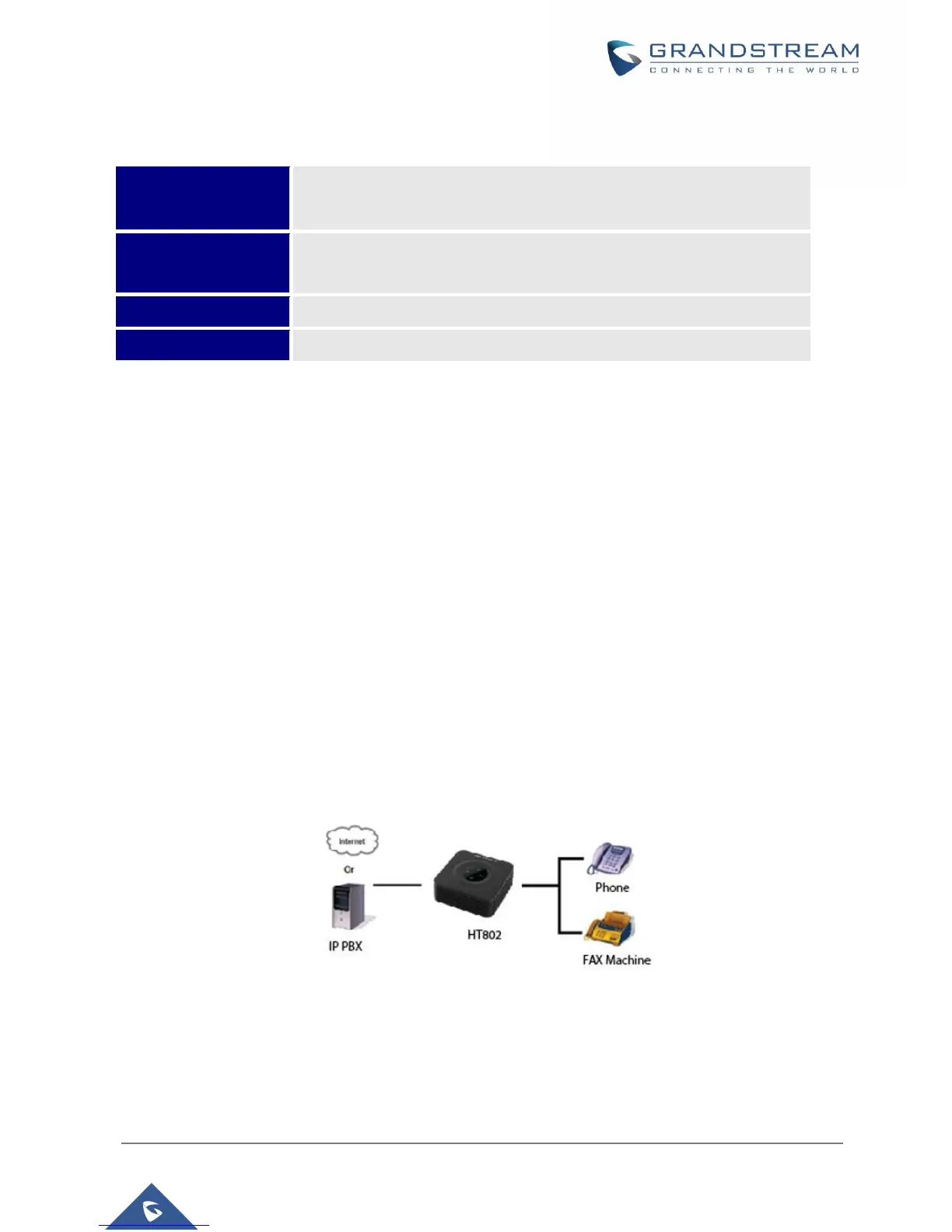

Figure 3: Connecting the HT802
Phone 1 & 2
Used to connect the analog phones / fax machines to the phone adapter
using an RJ-11 telephone cable.
Internet port
Used to connect the phone adapter to your router or gateway using an
Ethernet RJ45 network cable.
co
Micro USB Power
Connects the phone adapter to PSU (5V – 1A).
Reset
Factory reset button, press for 7 seconds to reset factory default settings.
