GXW410X CALL SETTINGS
Configure Unconditional Call Forward On GXW410X
On the GXW410X web GUI, go to the Settings->Channel Settings page, configure "Unconditional Call
Forward to VOIP" to the DID number 20000. This is the same number configured in UCM6XXX inbound
route dial pattern. In this example, we will use the SIP server for profile 1 (p1).

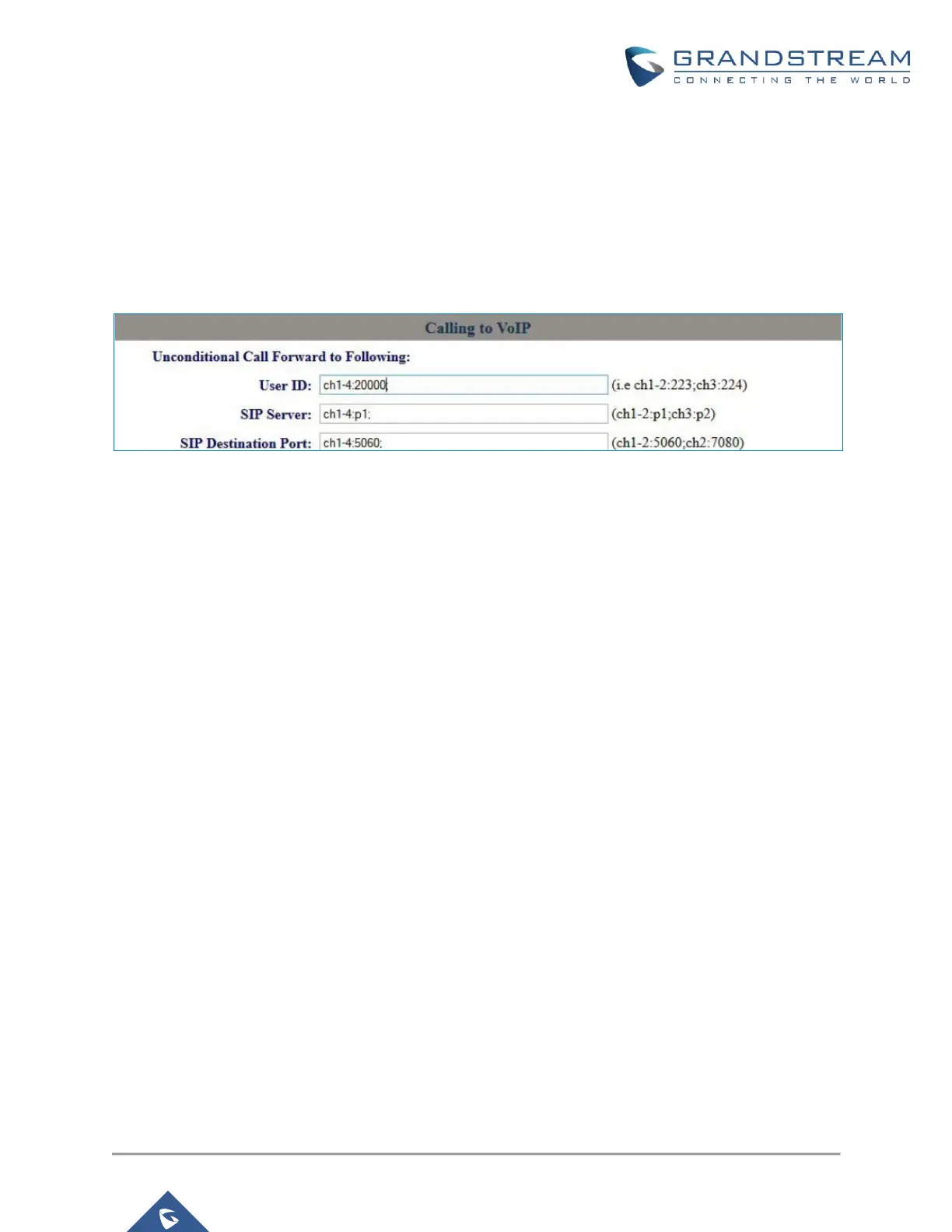

Figure 17: GXW410X - Call Forwarding
How to Dial
Once the GXW410X and the UCM6XXX are configured correctly, the inbound call and the outbound call
will be working as described below.
• Outbound call:
The extension registered to the UCM6XXX can dial prefix + PSTN number to reach outside numbers
in PSTN network, as defined in UCM6XXX outbound route.
• Inbound call:
The user from outside network can dial into the PSTN line's number (connected to GXW410X). And
then he/she will reach the IVR of the UCM6XXX. The IVR on UCM6XXX would allow the user to further
enter extension number or key pressing digit to reach the desired destination. The inbound call will go
through the inbound route set up on the UCM6XXX.
