For guidance on the installation of top outlet fuel tanks and
suction oil supply pipe sizing, refer to OFTEC Technical Book 3:
Storage and Supply, available for purchase from OFTEC.
If a two-pipe system is to be used, the following additional items
will be required:
Flexible fuel hose ⅜ʺ male x ¼ʺ female (product code:
RBS36 - 900 mm / product code: RBS36XS - 600mm)
⅜ʺ x ¼ʺ BSP adaptor (product code: Z3003602)
¼ʺ isolating valve (product code: ISOLATION1/4)
These are available to purchase from Grant UK.
3.1.5 SINGLE PIPE (SUCTION) SYSTEM WITH
DEAERATOR - (REFER TO FIGURE 3-3)
If the storage tank outlet is below the level of the burner oil pump,
an alternative to the two pipe (sub gravity) system is the single
pipe (suction) system using a deaerator, e.g. a ‘Tiger Loop’
device.
The deaerator creates a loop with the burner oil pump, with the oil
being circulated through the pump out to the deaerator and back
to the pump. Any air in the single pipe lift from the tank is removed
from the oil, collected in the deaerator and then discharged to
outside.
! WARNING !
To prevent any fuel vapour being discharged within
the building, the deaerator must be tted outside, in
accordance with BS 5410-1, unless it is specically
designed to be installed inside.
The de-aerator must be mounted vertically at the same level as
(or above) the burner oil pump. Refer to Figure 3-3.
1/4" BSP female
connections
Tiger Loop
SUPPLY
TO PUMP
RETURN
FROM PUMP
SUPPLY
FROM TANK

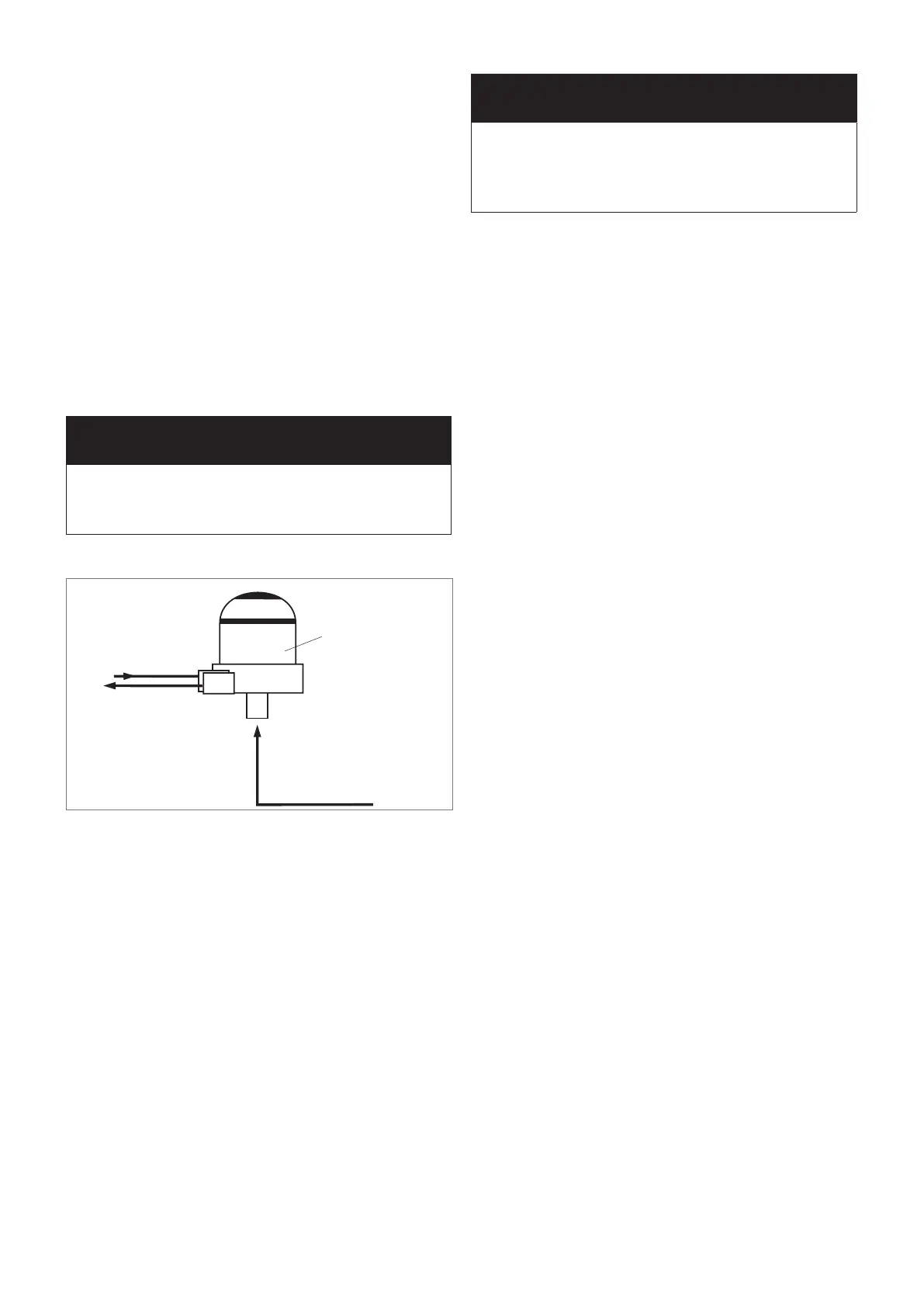

Figure 3-4: Tiger loop de-aeration device
An external deaerator must not be tted within 500 mm of a ue
terminal.
Always follow the manufacturers installation instructions supplied
with the deaerator.
To use a de-aertor, the following additional items will be required:
Flexible fuel hose ⅜ʺ male x ¼ʺ female (product code:
RBS36 - 900 mm / product code: RBS36XS - 600mm)
⅜ʺ x ¼ʺ BSP adaptor (product code: Z3003602)
¼ʺ isolating valve (product code: ISOLATION1/4)
These are available to purchase from Grant UK.
3.2 BURNER OIL CONNECTION
! WARNING !
The blanking plug supplied in the inlet (suction) port is
plastic and will not provide an oil tight seal when the pump
is running.
Ensure that the supply from the tank is connected to this
port and that the plastic plug is discarded.
The burner fuel pump is supplied factory set for use with a single
pipe (gravity) oil supply system.
For ease of access to the burner oil pump connections, the burner
should be removed from the boiler as follows:
1. Remove the red plastic burner cover.
Unscrew and remove the TWO fixing screws from
the red burner cover and remove the cover from the
burner.
2. Unscrew and remove the single burner fixing nut from the
stud on the burner flange (at the top of the burner) using a 13
mm spanner. Retain the fixing nut for re-fitting the burner.
3. Carefully withdraw the burner from the boiler.
Section 3: Oil Storage and Supply SystemPage 10
