2 Operating 2.2 Loading wash ware

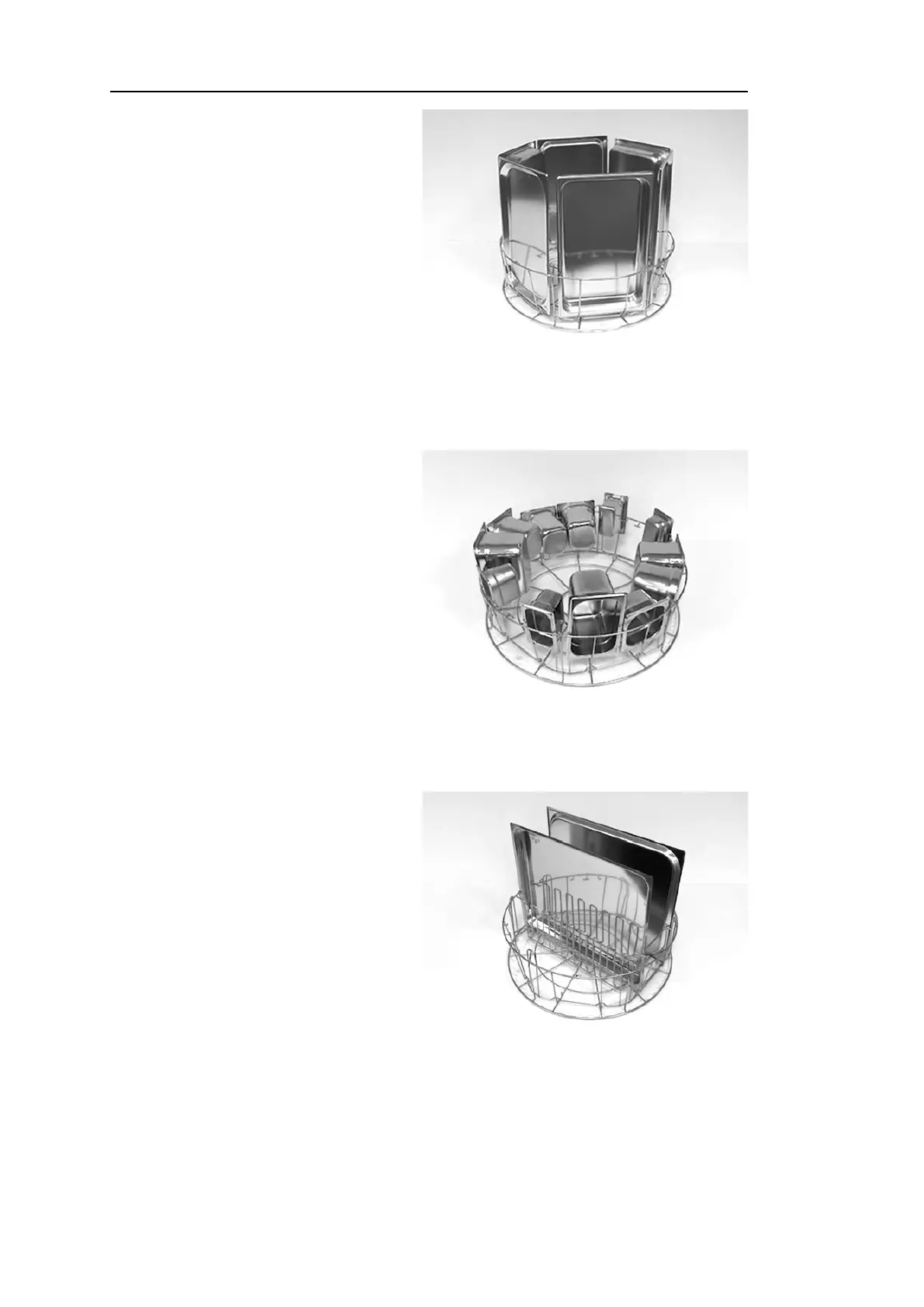

Fig. 10 Standard wash basket
Standard wash basket
(26426)
Capacity: 6 GN 1/1 65 mm or 3
GN 1/1 up to 200 mm + 3 GN 1/1
up to 65 mm. Equipped with
small hooks which enables up
to 12 small containers (1/4, 1/6,
1/9) to be loaded directly into
the wash basket.
See Fig. 10 Standard wash
basket
Fig. 11 Standard wash basket
Possible to load 6 x GN 1/3
Possible to load 12 x small GN
containers. Choose among GN
1/4, GN 1/6, GN 1/9.
See Fig. 11 Standard wash
basket
Fig. 12 Insert for trays with GN 2/1
Insert for trays (19992)
To be placed inside standard
wash basket (26426). Holds 2
GN 2/1 or, 6 baking trays
600x400 mm up to 20 mm
edge and 2 GN 1/1 sized trays,
up to 16 grids, up to 8 chopping
boards and GN 1/1 lids.
See Fig. 12 Insert for trays with
GN 2/1
22 Rev. 2021-09
