GRASS VALLEY KALEIDO-MX Hardware Description & Installation Manual

15
Kaleido-MX (3RU)
Hardware Description & Installation Manual
Input Modules

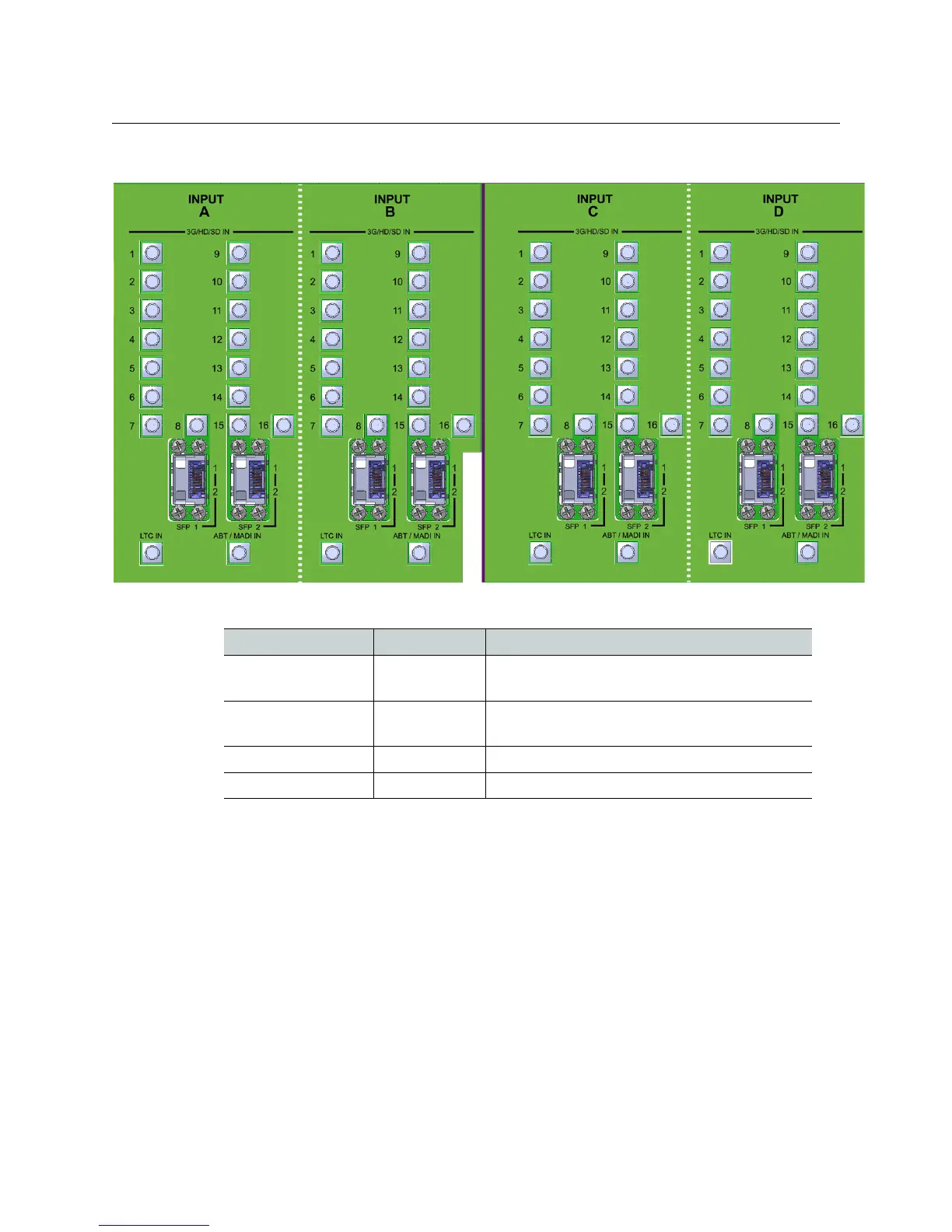

The following table lists the function of each connector associated with the input modules.
Connector label Connector type Function
3G/HD/SD IN 1 to
3G/HD/SD IN 16
DIN 1.0/2.3 SD-SDI, HD-SDI, or 3G-SDI video inputs
ABT/MADI IN DIN 1.0/2.3 Multiplexed audio from an external device
(Audio Bridge Terminal)
LTC IN DIN 1.0/2.3 Time code input
SFP 1 and SFP 2 — Optional ports. Not yet supported.
