Grasshopper 623T User Manual

36

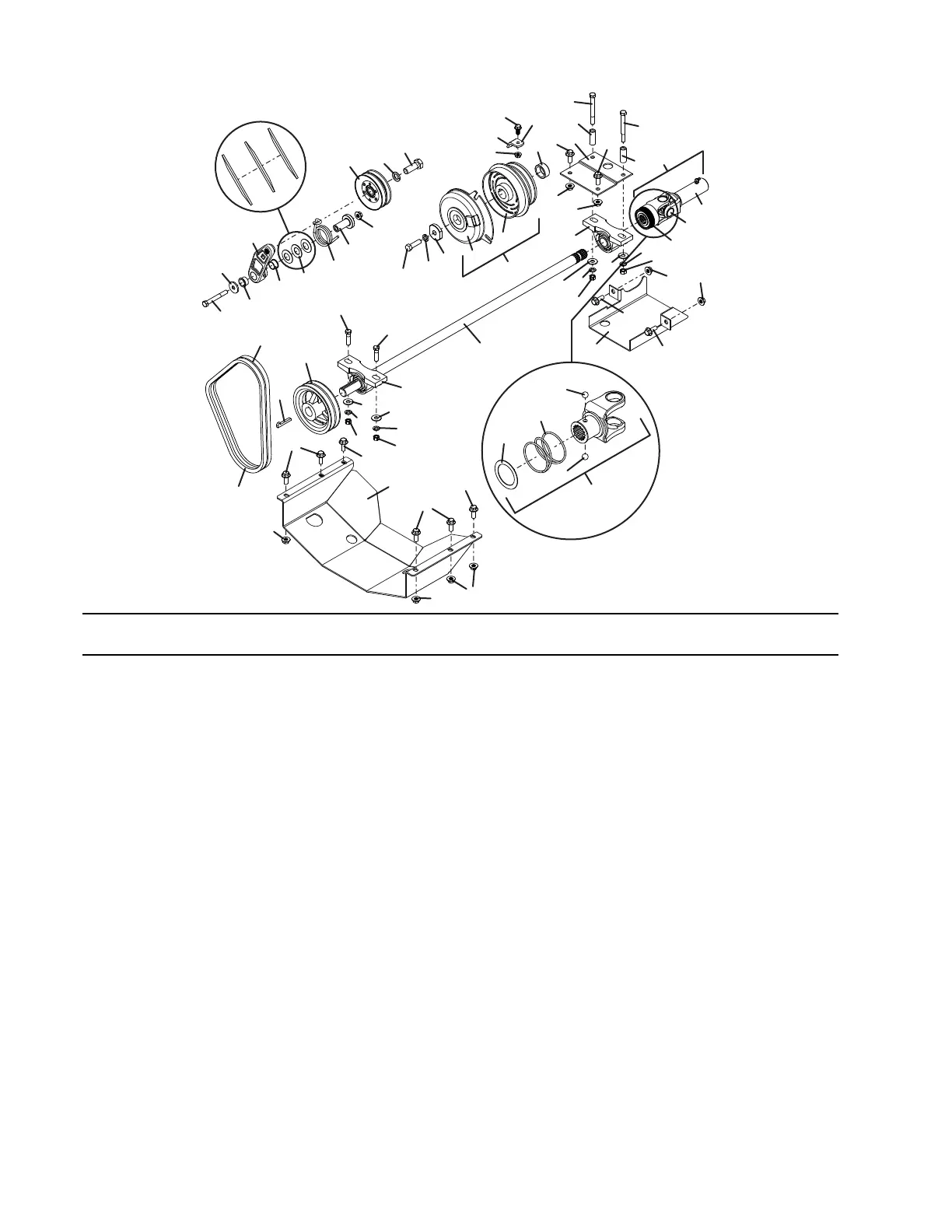

PTO SHAFT & CLUTCH ASSEMBLY
06071I
Item Order Description
No. No.
Item Order Description
No. No.
1 393758 Power Shaft
2 122044 Pillowblock Bearing
3 398914 Universal Half Sleeve – QD
(includes items 4 - 6)
4 401019 Splined Yoke - Quick Disconnect
(includes items 7 - 9)
5 121010 Cross & Bearing
6 401017 Yoke with Sleeve
7 263660 External Retainer
8 283525 Compression Spring
9 300014 Steel Ball
10 415650 Sheave
11 281588 Gib Key .25 x 1.5
12 388771 Electric Clutch
13 388875 Field Assembly w/Brake
14 388866 Armature & Rotor Assembly
15 902588 Spacer – 1.125 x .625
16 257039 Washer 1.75 x 1.5 Double D
17 257422 Lock Washer .437
18 243456 Bolt .437-20 x 1.5
19 732407 Anti-Rotation Bracket
20 422087 Clutch Bracket Cover
21 253192 Whiz Bolt .312-18 x .75
22 253035 Whiz Nut .312-18
23 824467 Idler Arm (includes items 24-26)
24 121756 Flange Bearing - Oilite
25 121651 Bearing Pedestal
26 257319 Washer - Spring
27 243360 Bolt .375-16 x 2.75
28 257040 Washer .375
29 253043 Whiz Nut .375-16
30 415610 Idler Pulley
31 243805 Bolt .625-11 x 1.75
32 257452 Lock Washer .625
33 644888 Sheave Guard
34 729287 Shield – PTO Shaft
35 253203 Whiz Bolt .375-16 x 1
36 243340 Bolt .375-16 x 1.5
37 381914 Belt
38 774020 Washer .406
39 257412 Lock Washer .375
40 254450 Nut .375-16
41 724910 Bearing Mount - Front
42 902271 Spacer
43 243375 Bolt .375-16 x 3.5
44 284428 Torsion Spring
45 253193 Whiz Bolt .312-18 x 1
06071I
43
42
41
35
35
15
43
3
42
21
19
20
31
32
22
30
29
25
44
26
24
23
38
24
27
37
18
17
16
13
14
12
6
5
4
39
40
29
29
35
35
34
29
29
2
28
40
39
28
9
8
7
9
4
36
36
10
11
2
28
39
40
28
39
40
45
45
33
45
45
22
37
22
22
1
