44

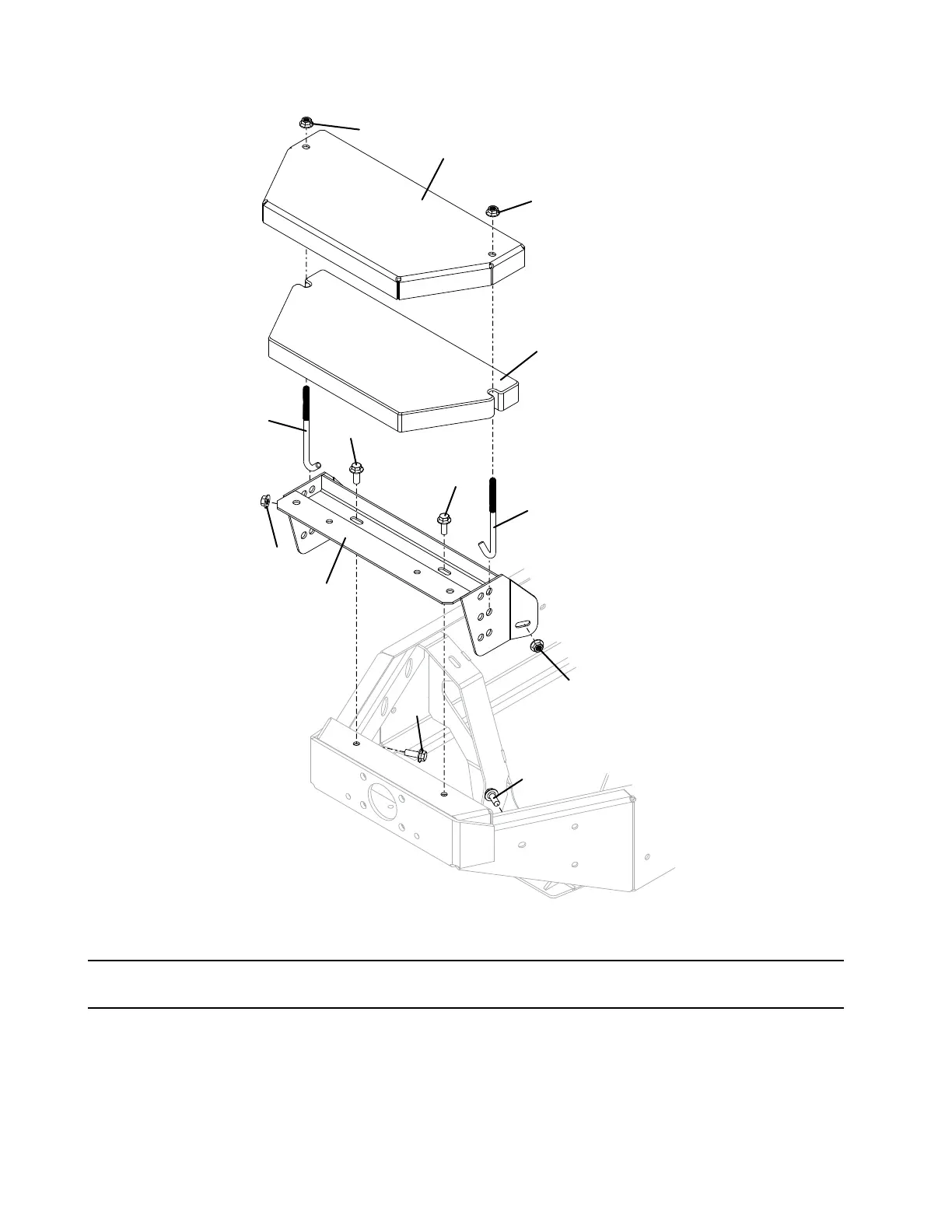

COUNTER
WEIGHT
MOUNT
KIT
503220
Counterweight Mount Kit
1
644915
W
eight Mount
2
729691
W
eight Cover
3
240151
Hook Bolt .375-16 x 6
Item
Order
Description
No.
No.
4
253203
Whiz Bolt .375-16 x 1
5
253043
Whiz Nut .375-16 Lg Flange
*6
503218
Counterweight - 50#
*
Not Included in Kit
Item
Order
Description
No.
No.
10133
1
2
3
3
4
4
4
4
5
5
5
6*
5
10133
43
45
Table of Contents
Default Chapter
3
Table of Contents
3
Specifications
5
Safety Symbols
6
Safety Decals
7
Safety Information
8
Training
8
Preparation
8
Fuel Handling Safety
8
Filling the Fuel Tank
9
Operational Safety
9
Maintenance Safety
10
Storing Safely
11
General Information
12
Measurement Conversion
13
Bolt Size and Tightening Recommendations
13
Operation
14
Controls and Switches
14
Pre-Start Check List
14
Mounting and Dismounting the Tractor - with Mower Deck
16
Mounting and Dismounting the Tractor - with All Other Attachments
16
Starting the Engine
16
Cold Weather Starting Tips
16
Uneven Terrain
17
Stopping the Engine
17
Moving Unit Without Power
18
Steering Lever Operation
18
Loading / Transporting Machine
20
Lubrication
21
Capacities
21
Tire Air Pressure
21
Hydrostatic Drive System
21
Crankcase Oil and Air Filter
21
Cooling System
21
Battery Maintenance
22
Checking Drive System Fluid Level
22
Changing Drive System Fluid and Filter
22
Lubrication and Service
21
Adjustments and Troubleshooting
23
Loss of Power in the Drive System
23
No Positive Neutral Position
23
Neutral Adjustment
23
Parking Brake Adjustment
23
Clutch Removal/Replacement
24
Clutch/Brake Burnishing
24
Engine Troubleshooting
24
Wiring Circuit Board Removal
24
Steering Lever Adjustment
25
Foot Rest Block Installation
25
Attaching SL96, SL98 or 33 Series Deck
25
Traction Kit Installation
26
Preparation
26
Adjusting Traction Spring Tension
26
Rear Weight Requirements
26
Removing Mower Deck from Traction Kit Equipped Tractor
26
Parts List and Illustration
28
Tractor Assembly
28
Drive Assembly
30
Brake Assembly
32
OPS & Seat Assembly
34
PTO Shaft & Clutch Assembly
36
Steering Assembly
37
Wiring Diagram
38
Tail Wheel Options
40
Traction Kit
42
Counterweight Mount Kit
44
Optional Limited Universal Harness
45
