37

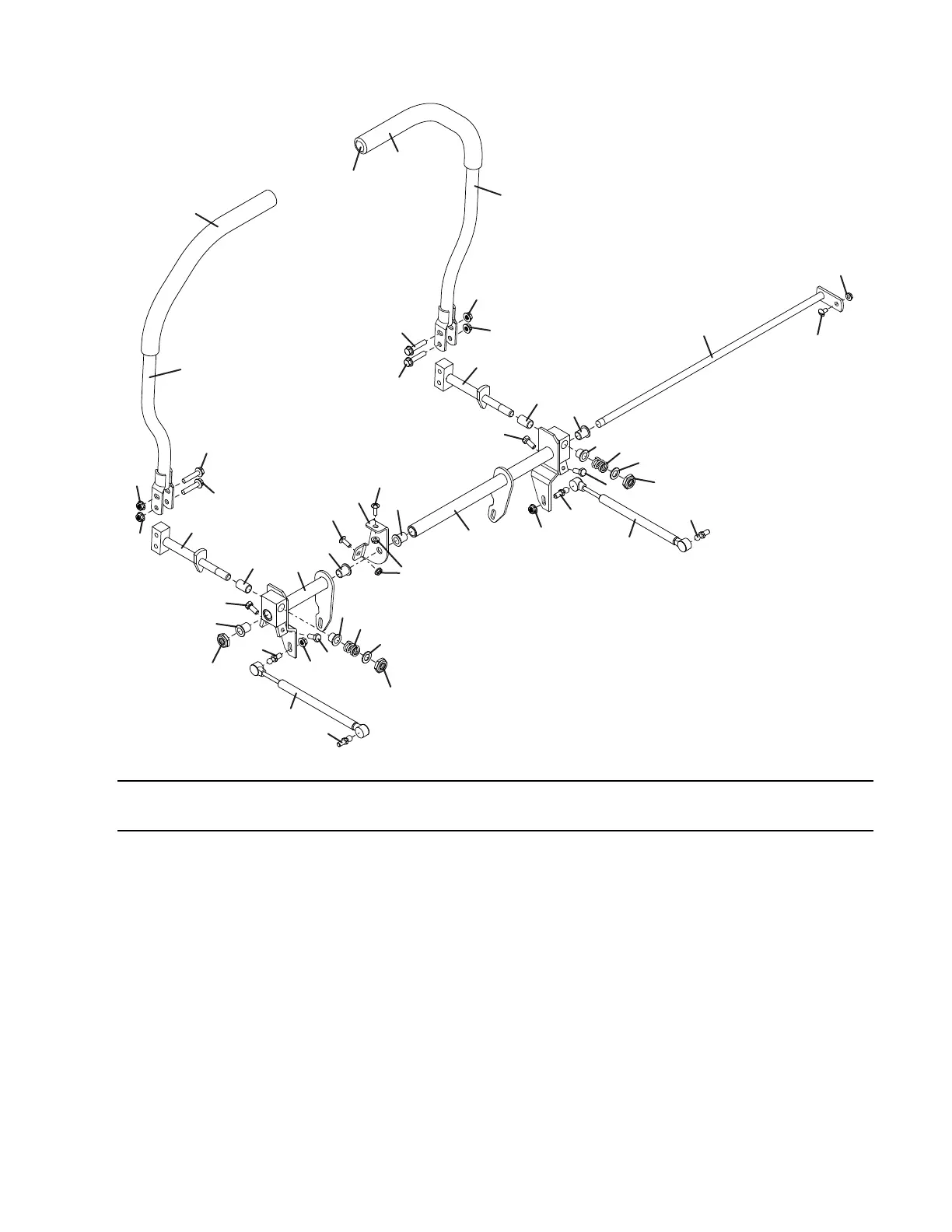

STEERING ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
01-13041A
Rev. 06-17
1 604777 Steering Lever Assembly
(includes items 5 & 6)
2 643926 Steering Lever Mount
3 253195 Whiz Bolt .312-18 x 1.5 Hex
4 253035 Whiz Nut .312-18
5 422179 Handle Grip - Foam
6 422095 Vinyl Cap
7 604854 Pivot w/Stop & Bearings Rt.
(includes items 9, 10, 19 & 20)
8 604855 Pivot w/Stop & Bearings Lt.
(includes items 9, 10, 19 & 20)
9 422559 Sleeve Bearing w/Flange
10 243197 Stop Bolt .312-18 x .75
11 257063 Nylon Washer
12 283324 Compression Spring
13 253470 Nut .5-13 Nylon Insert
14 644589 Steering Pivot
15 253176 Whiz Bolt .25-20 x .5 Truss
16 253025 Whiz Nut .25-20
17 285032 Damper with Ball Socket
18 265680 Ball Stud
19 422557 Sleeve Bearing
20 422556 Sleeve Bearing w/Flange
21 729701 Support - Steering Rod
22 253179 Whiz Bolt .25-20 x .75 Phil Truss
13041A
6
5
1
4
4
3
3
2
10
19
9
13
20
12
11
13
10
18
17
18
4
5
1
3
4
3
2
4
14
15
16
9
9
7
20
12
11
13
10
4
18
17
18
9
10
19
8
21
22
22
16
To Next Page
