Grasslin Towerchron QE1, QE2 - Internal Wiring Diagram

36

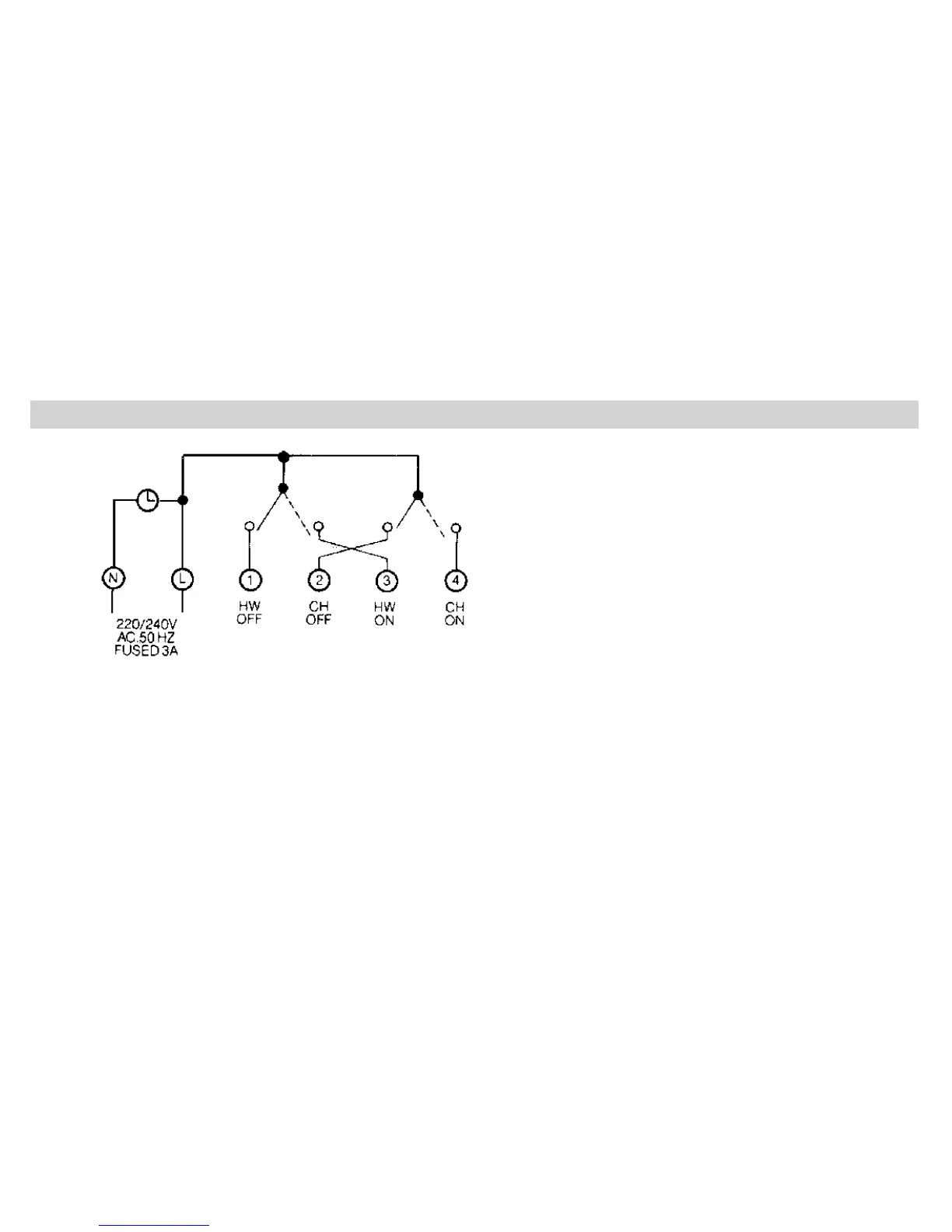

INTERNAL WIRING DIAGRAM (QE2)
NB • Carry out wiring installation using appropriate diagram as shown.
NB • Plug in unit and secure to the base by tightening fixing screw.
Important note:
For fully pumped systems the switch located at the rear of the “QE2” must be moved to the right - into the “fully
pumped” position
