Programming with HoTT transmitter
Operation of the GM GENIUS PRO speed controller is similar to
operation of the corresponding transmitter. You should read the
manual of your remote control system, especially the chapter "telem-
etry". The operation is done in the transmitter menu "Telemetry"
under the display "SETTING AND DATA VIEW".
Notice
The menus can be selected only when the transmitter and control-
ler are selected! After the receiver has been switched on, it may
take several seconds until the display becomes active - and can be
selected.

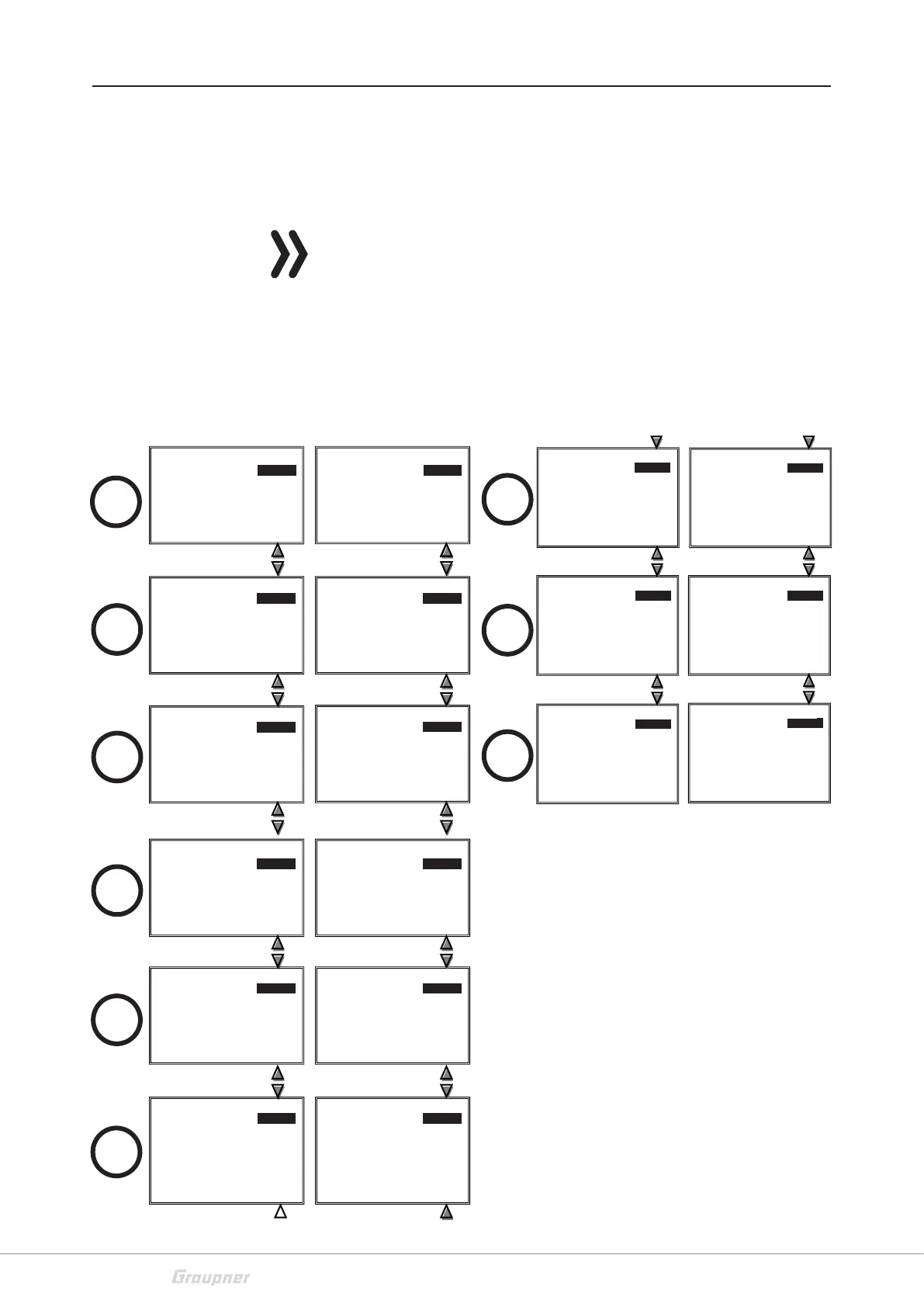

Display for settings of the speed controller
Sensor motor Hybrid motor
Depending on whether you have
selected the Hybrid or Sensor for
the motor type, different display
contents and setting options are
displayed
1
2
3
4
5
6
[E.S.C] *HYBRID<
User setup : Page 1
>MODEL : HYBRID
E.S.C save? No
Factory set? No
Ver:P 2.080
[E.S.C] *HYBRID<
>User Setup : Page 2
Battery : LiPo
Cut_off V. : Auto
Pwr. Curve : 5
Acceleration : 5
Start power : 0 %
Neutral W. : Wide
[E.S.C] *HYBRID<
>User Setup : Page 3
Boost Mode : OFF
Boost T. : 0
Turbo T. : + 0
Boost minRPM : 000
Boost maxRPM : 000
[E.S.C] *HYBRID<
>User Setup : Page 4
Turbo Delay : 0.20s
Turbo +Slope : 0.20s
Turbo -Slope : 0.20s
Motor Wiring : A-B-C
[E.S.C] *HYBRID<
>User Setup : Page 5
Boost - TH 20% : 0
Limit 40% : 0
60% : 0
80% : 0
100% : 0
[E.S.C] *HYBRID<
>User Setup : Page 6
Min-Brake : 30 %
Mid-Brake : 50 %
Mid-BrakeLoc : 50 %
Max-Brake : 100 %
Drag-Brake : 0 %
Soft-Brake : Sof t
[E.S.C] *SENSOR<
>User Setup : Page 2
Battery : LiPo
Cut_off V. : Auto
Pwr. Curve : 5
Acceleration : 5
Start power : 0 %
Neutral W. : Wide
[E.S.C] *SENSOR<
User setup : Page 1
>MODEL : SENSOR
E.S.C save? No
Factory set? No
Ver:P 2.080
[E.S.C] *SENSOR<
>User Setup : Page 3
Boost Mode : OFF
Boost T. : 0
Turbo T. : + 0
Boost minRPM : 000
Boost maxRPM : 000
[E.S.C] *SENSOR<
>User Setup : Page 4
Turbo Delay : 0.20s
Turbo +Slope : 0.20s
Turbo -Slope : 0.20s
Motor Wiring : A-B-C
[E.S.C] *SENSOR<
>User Setup : Page 5
Boost - TH 20% : 0
Limit 40% : 0
60% : 0
80% : 0
100% : 0
[E.S.C] *SENSOR<
>User Setup : Page 6
Min-Brake : 30 %
Mid-Brake : 50 %
Mid-BrakeLoc : 50 %
Max-Brake : 100 %
Drag-Brake : 0 %
Soft-Brake : Sof t
[E.S.C] *HYBRID<
>User Setup : Page 7
A.B.S Brake : off
Brk.Response : 0 %
Reverse Func : OneWay
Rev.Delay : 2.5 s
Max - Reverse: 100 %
BEC Volt : 6.0 V
[E.S.C] *HYBRID<
>User Setup : Page 8
MOTOR Freq. : 8 KHz
BRAKE Freq. : 1 KHz
Drag Freq. : 1 KHz
Direction : Norma l
St.Curr.Limit : Of f
Curr.Limit : Of f
[E.S.C] *HYBRID<
>User Setup : Page 9
ESC CutOff : 135°C
MOTOR CutOff : 135°C
Number-Pole : 2
Gear Ratio : 2.0:1
Tire dim. : 63 mm
units : Metric
[E.S.C] *SENSOR<
>User Setup : Page 7
A.B.S Brake : off
Brk.Response : 0 %
Reverse Func : OneWay
Rev.Delay : 2.5 s
Max - Reverse: 100 %
BEC Volt : 6.0 V
[E.S.C] *SENSOR<
>User Setup : Page 8
MOTOR Freq. : 8 KHz
BRAKE Freq. : 1 KHz
Drag Freq. : 1 KHz
Direction : Norma l
St.Curr.Limit : Of f
Curr.Limit : Of f
[E.S.C] *SENSOR<
>User Setup : Page 9
ESC CutOff : 135°C
MOTOR CutOff : 135°C
Number-Pole : 2
Gear Ratio : 2.0:1
Tire dim. : 63 mm
units : Metric
7
8
9
5
To Next Page
