Description of the transmitter

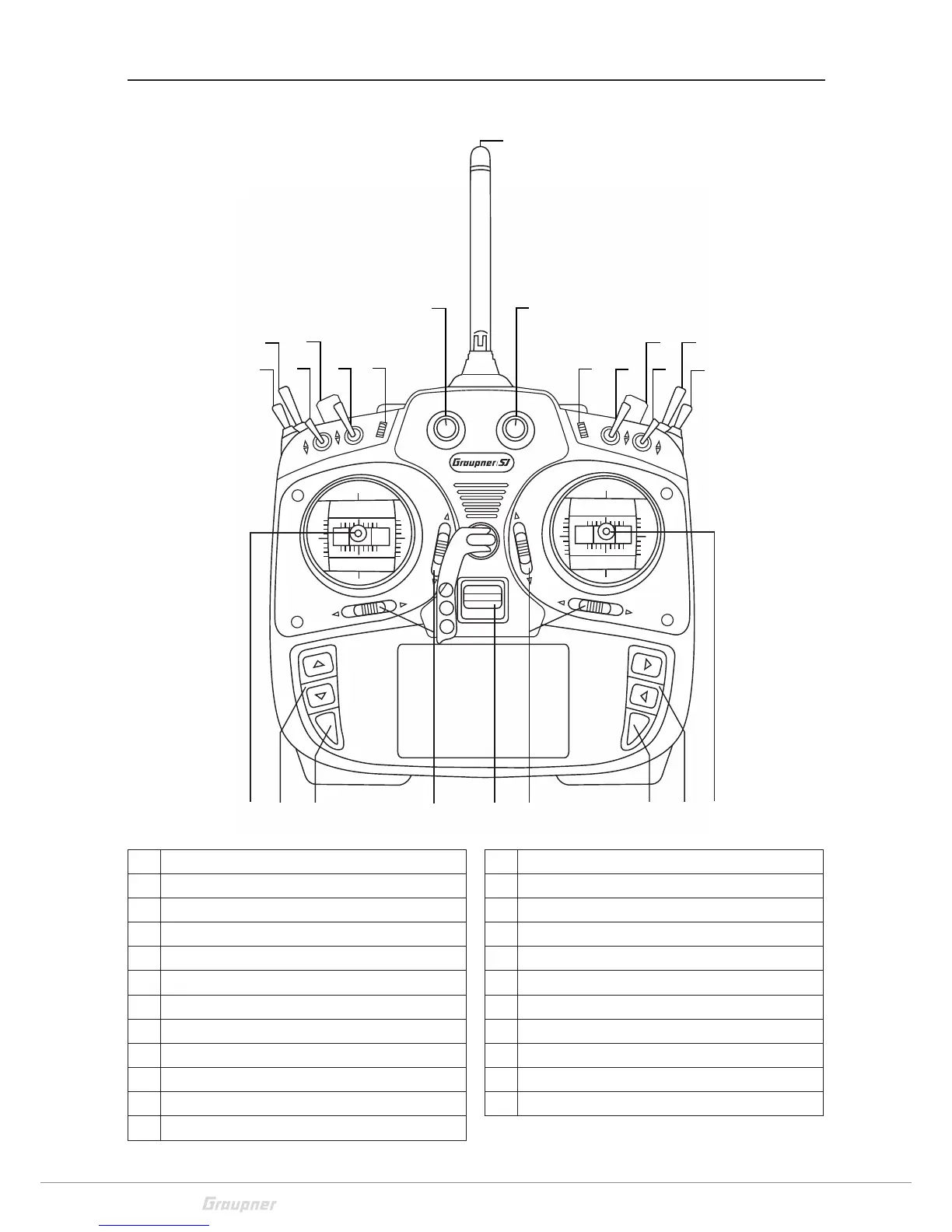

Control elements on the transmitter
12
9
1
2
3
4
5
10
13
12
23
8
6
7
11
14
1516
17
19
18
22
21
20
ESC
ENT
1 Antenna
2 Proportional dial DV3
3 INC/DEC buttons DT2
4 Switch SW 3
5 Proportional dial DV4
6 Switch SW 4
7 Switch SW 8
8 Switch SW 7
9 Right control stick
10 Alternative adjusting buttons
11 ENTER button
12 Trim
13 On/off switch
14 ESC button
15 Alternative selection buttons
16 Left control stick
17 Switch SW 5
18 Switch SW 6
19 Switch SW 1
20 Proportional dial DV1
21 Switch SW 2
22 INC/DEC buttons DT1
23 Proportional dial DV2
