FR - 9
Remove contents from carton carefully. Place
bagger hood and frame parts on cardboard to
help prevent scratches.
Package Contents:
Check the contents of your kit for the parts
listed below. See Figure 3.
ASSEMBLY
WARNING: AVOID INJURY.
Read and understand entire
Safety section before
proceeding.
Item Description Qty Part Number
1 Bagger
Assembly
1 05049200
2 Bagger Post 1 05065451
3 Right Bagger
Arm
1N/A
4 Left Bagger Arm 1 N/A
5 Bagger Hose 1 04588400
6Blower
Assembly
1
59215900
7 Right Bagger
Mount
1 05065200
8 Left Bagger
Mount
1 05065300
9 1/2-13” Top
Lock Flange Nut
8 06543600
10 1/2-13 x 4 1/2”
Hex Bolt
2 05900102
11 1/2 x 3/4”
Spacer
2 09357700
12 1/2-13” Spin
Lock Flange Nut
2 06543300
13 33/64 x 7/8” Flat
Steel Washer
2 06436600
14 Hose Adapter 1 04714700
15 5/16-18” Nyloc
Flange Nut
8 06545400
16 5/16-18 x 3/4”
Round Head
Square Neck
Bolt
2 06220800
17 5/16-18 x 1"
Round Head
Square Neck
Bolt
2 06200007
18 1/2-13 x 2 1/4”
Hex Bolt
2 05961000
19 1/2-13 x 1" Hex
Bolt
4 05947100
20 5/16-18 x 2 1/2”
Hex Bolt
4 05952600
21 11/32 x 11/16”
Flat Steel
Washer
4 06437200
Item Description Qty Part Number

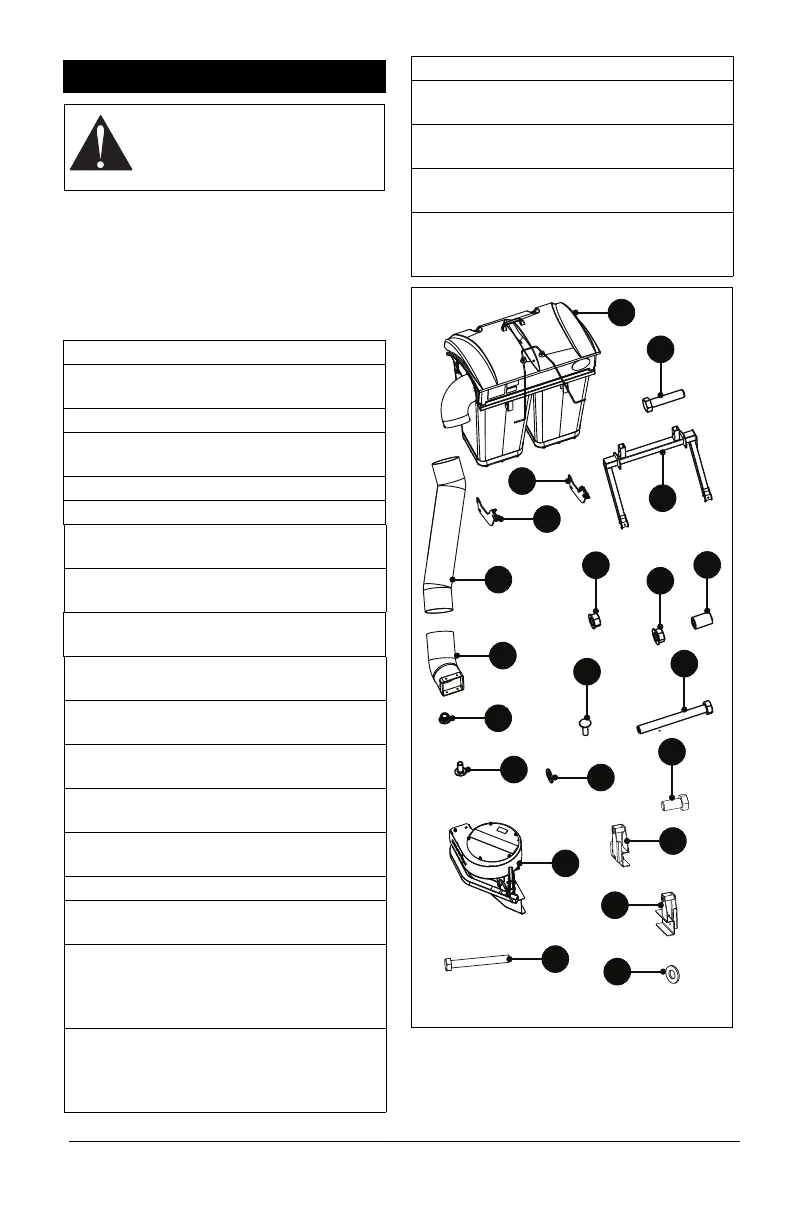

Figure 3
1
5
13
10
14
12
6
3
4
2
11
9
15
16
17
18
19
8
7
20
21
