FR - 14

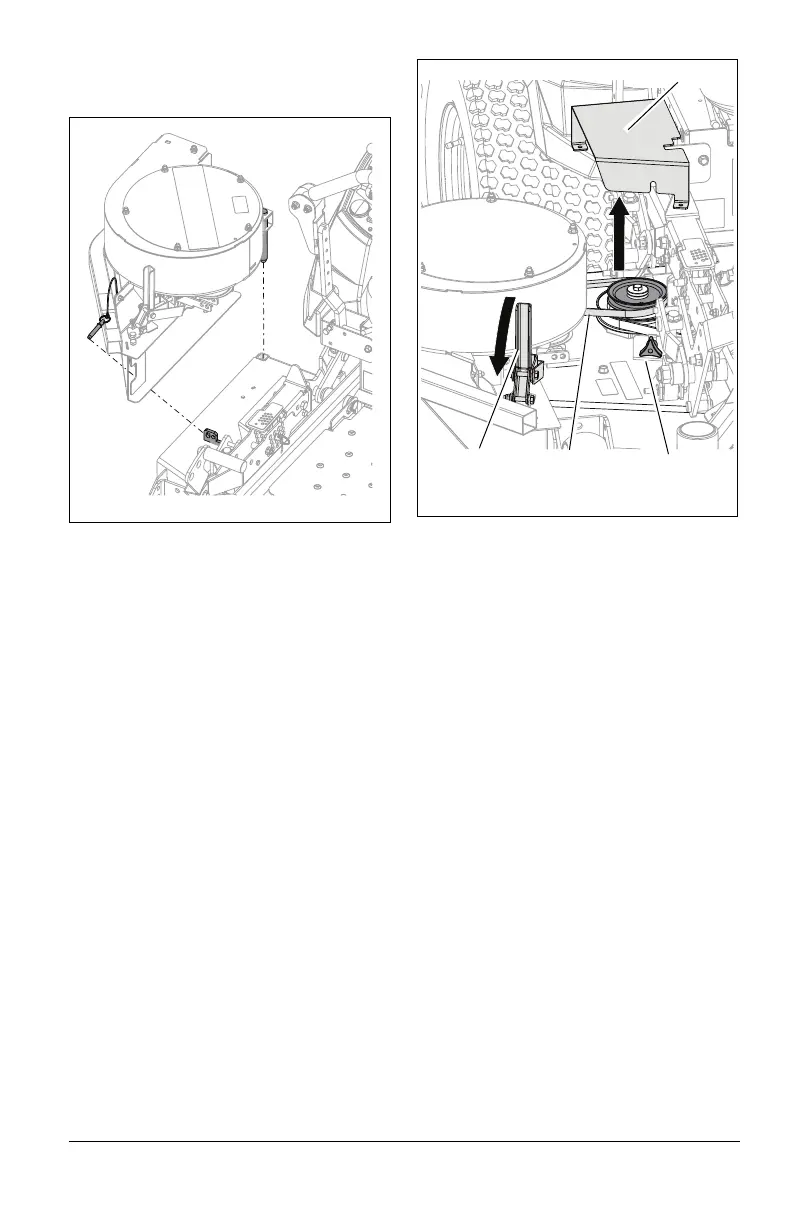

3. Install blower assembly on mower deck.
Install pin through bracket on mower
deck. See Figure 17.
INSTALL V-BELT ON DOUBLE
PULLEY
See Figure 18.
1. Remove wing knobs or hex nuts securing
belt cover to frame and remove belt
cover. Retain for reinstallation.
2. Place blower belt tensioner in released
position.
3. Install V-belt onto upper pulley of double
pulley.
4. Place blower belt tensioner in operating
position.
5. Reinstall belt cover.
INSTALL HOSE
See Figure 19.
1. Place mower deck in lowest position.
2. Install one end of hose (Item 5) onto hose
adapter.
3. Install opposite end of hose onto bagger
assembly (Item 1).
NOTICE: Hose must remain secured at all
mower deck heights.
Figure 18
Belt Cover
Wing Knobs
or Hex Bolts
V-belt
Tensioner
To Next Page
