Gravely 891007 - INSTALL BAGGER MOUNTS

FR - 10
INSTALL BAGGER MOUNTS
1. Remove and discard four hex bolts, four
washers, and four nyloc nuts from rear
bumper mounts. See Figure 4.
See Figure 5.
2. Install right bagger mount (item 7) onto
the rear bumper mount.
3. Install left bagger mount (item 8) onto the
rear bumper mount.
4. Secure left and right mounts using four
hex bolts (item 20), four flat steel washers
(item 21) and four nyloc nuts (item 15).
See Figure 6.
CAUTION: Deck-specific bagger
installation kit is required to
install and operate bagger. See
Installation Kits on page 19.

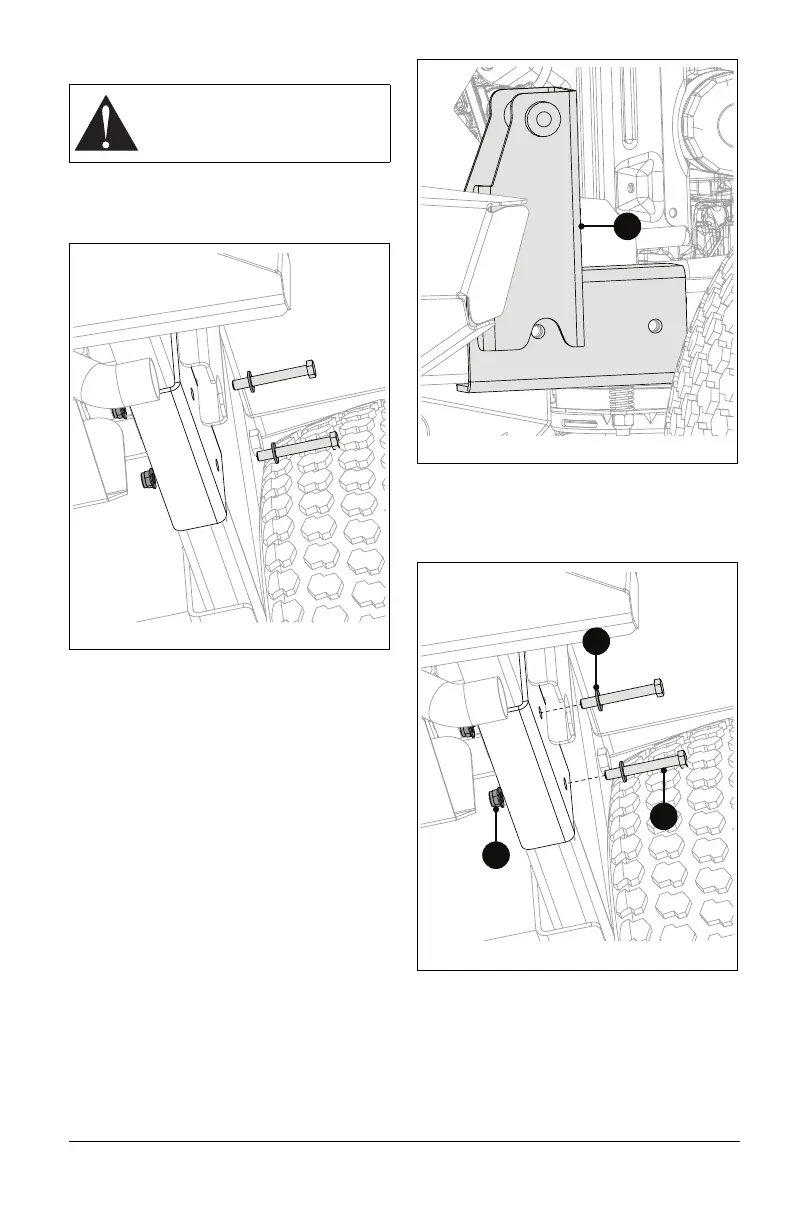

Figure 4
Figure 5
7
Figure 6
20
21
15
