Gravely 891007 - INSTALL V-BELT

FR - 12
7. If necessary for clearance, loosen the
tapping screw and rotate the ROPS
lanyard clip. See Figure 11.
8. Tighten all hardware.
9. Remove bags from bagger. Install bagger
frame to bagger post with two 1/2 x 2 1/4”
hex bolts (Item 18) and two 1/2” top lock
flange nuts (Item 9). See Figure 12.
INSTALL V-BELT
1. Place blower belt tensioner in released
position.
2. Install V-belt around split pulley on blower
assembly (Item 6) so that back side of
belt contacts idler pulley. See Figure 13.
3. Place blower belt tensioner in operating
position.

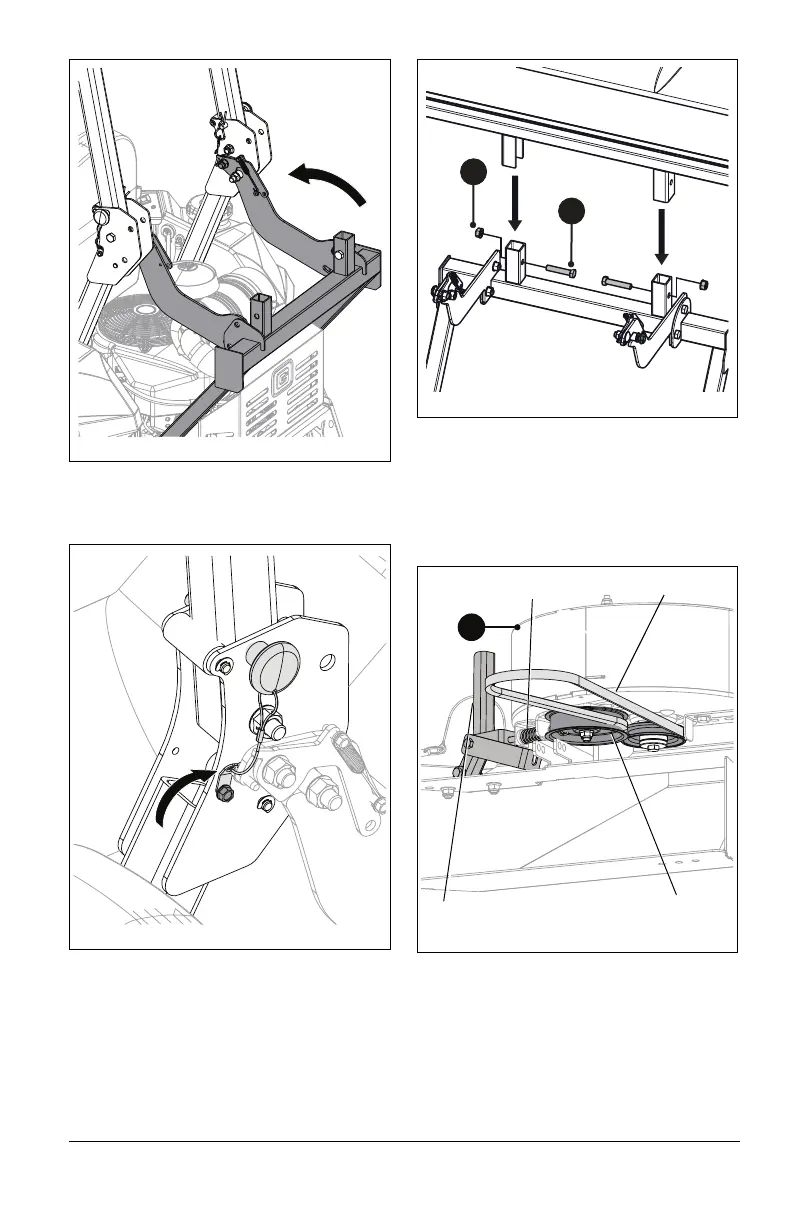

Figure 10
Figure 11
Figure 12
18
9
Figure 13
Idler Pulley
Compression Spring
V-belt
6
Tensioner
