INSTALL BAGS
1. Release bagger cover latch straps.
2. Lift bagger cover up to access bagger
frame.
3. Install grass bags. The smooth heat-
resistance surfaces of the mesh bags
must face the engine. See Figure 20.
4. Close cover and connect rubber straps.
INSTALL ROPE
1. Route one end of rope through hole in left
bagger arm and tie a knot to secure. See
Figure 21.
2. Route the untied end of rope through the
two eye bolts. See Figure 22.

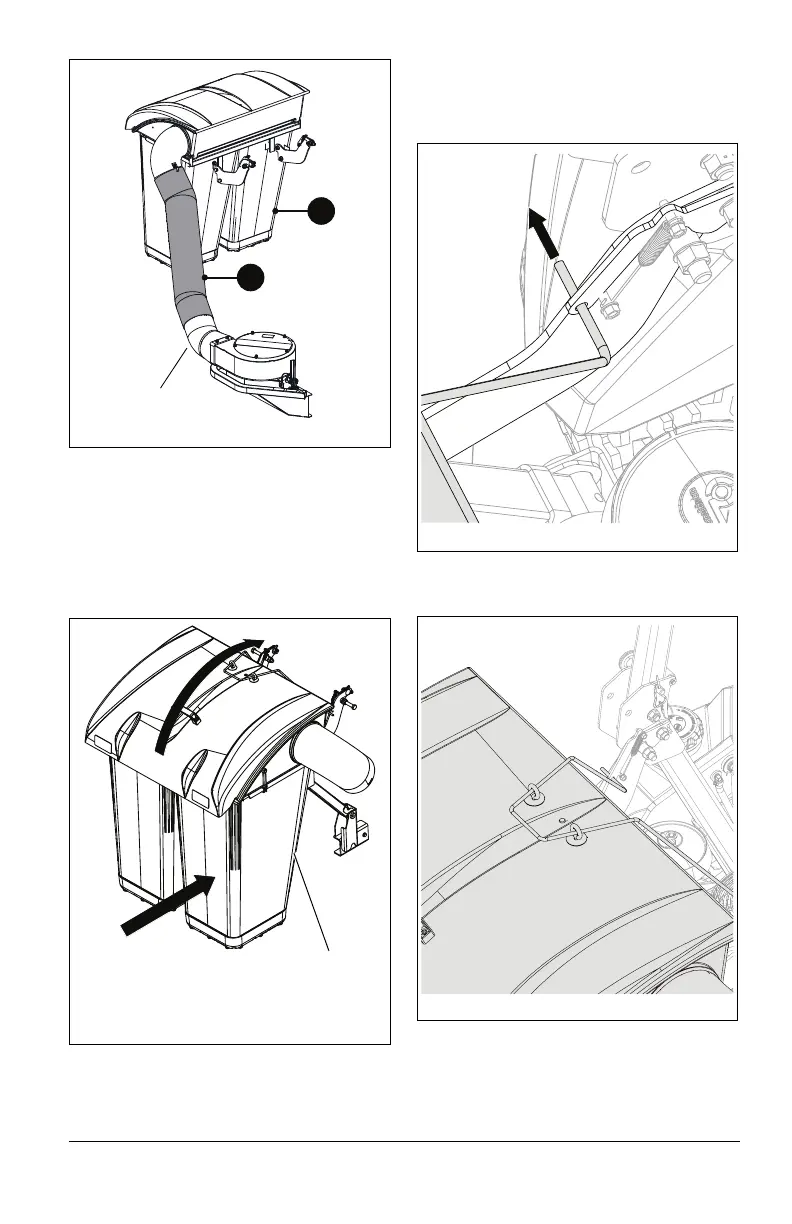

Figure 20
Smooth heat-
resistant side must
face engine
