NOTE:
(1)Above electrical wiring diagram only for your reference, it is subjected to the wiring diagram posted on the
machine.
(2)The swimming pool heat pump must be connected ground wire well, although the unit heat exchanger is
electrically isolated from the rest of the unit .Grounding the unit is still required to protect you against short
circuits inside the unit .Bonding is also required.
Disconnect: A disconnect means (circuit breaker, fused or un-fused switch) should be located within sight
of and readily accessible from the unit .This is common practice on commercial and residential heat pumps.
It prevents remotely-energizing unattended equipment and permits turning off power at the unit while the
unit is being serviced.
6.Operation

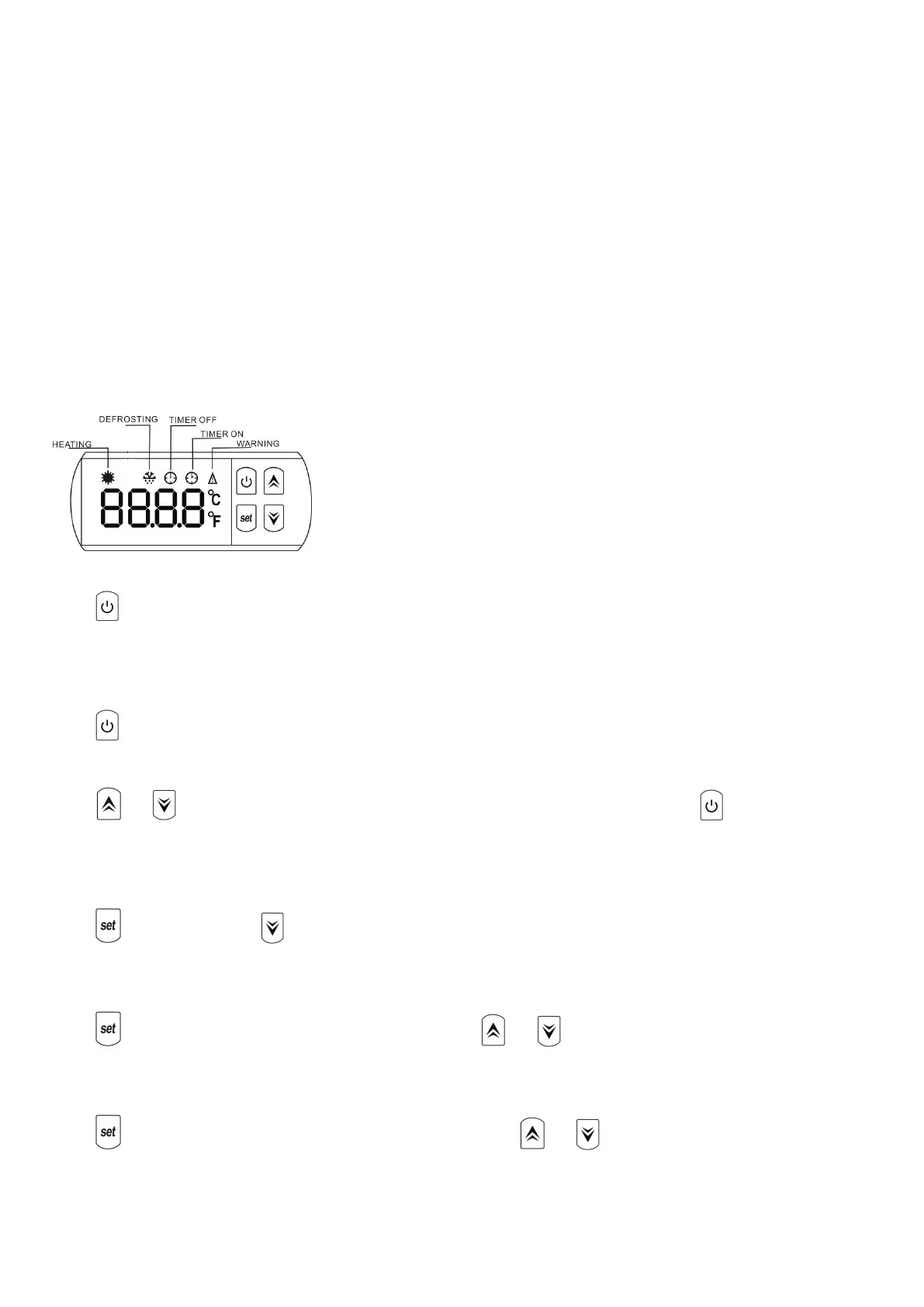

(1) Guide for operation
(2) Start the pool heat pump
Press to start the heat pump, the LED display will show the inlet water temperature and current working mode after
5s.
(3) Stop the pool heat pump
Press once again to stop the heat pump, the LED display shows ‘OFF’
(4) Water temperature setting
Press or to set the desired water in temperature in current working mode, then Press to save setting and
exit.
(5) TIME setting
Press button ,then press to enter into “ TIME “ display ;
** HOUR SETTING**
Press again to “HOUR” setting , “HH” flashed ,then press or to adjust the HOUR from 0 to 23 ;
**MINUTE SETTING**
Press to enter into MINUTE setting ,”MM” flashed , then press or to adjust the MINUTE from 0 to 59.
(6) TIMER ON Setting
