D Series Modular Air-cooled Scroll Chillers
Service Manual
Accumulator
Note: Be sure to recover the refrigerant, prepare proper devices and tools and keep a good ventilation.

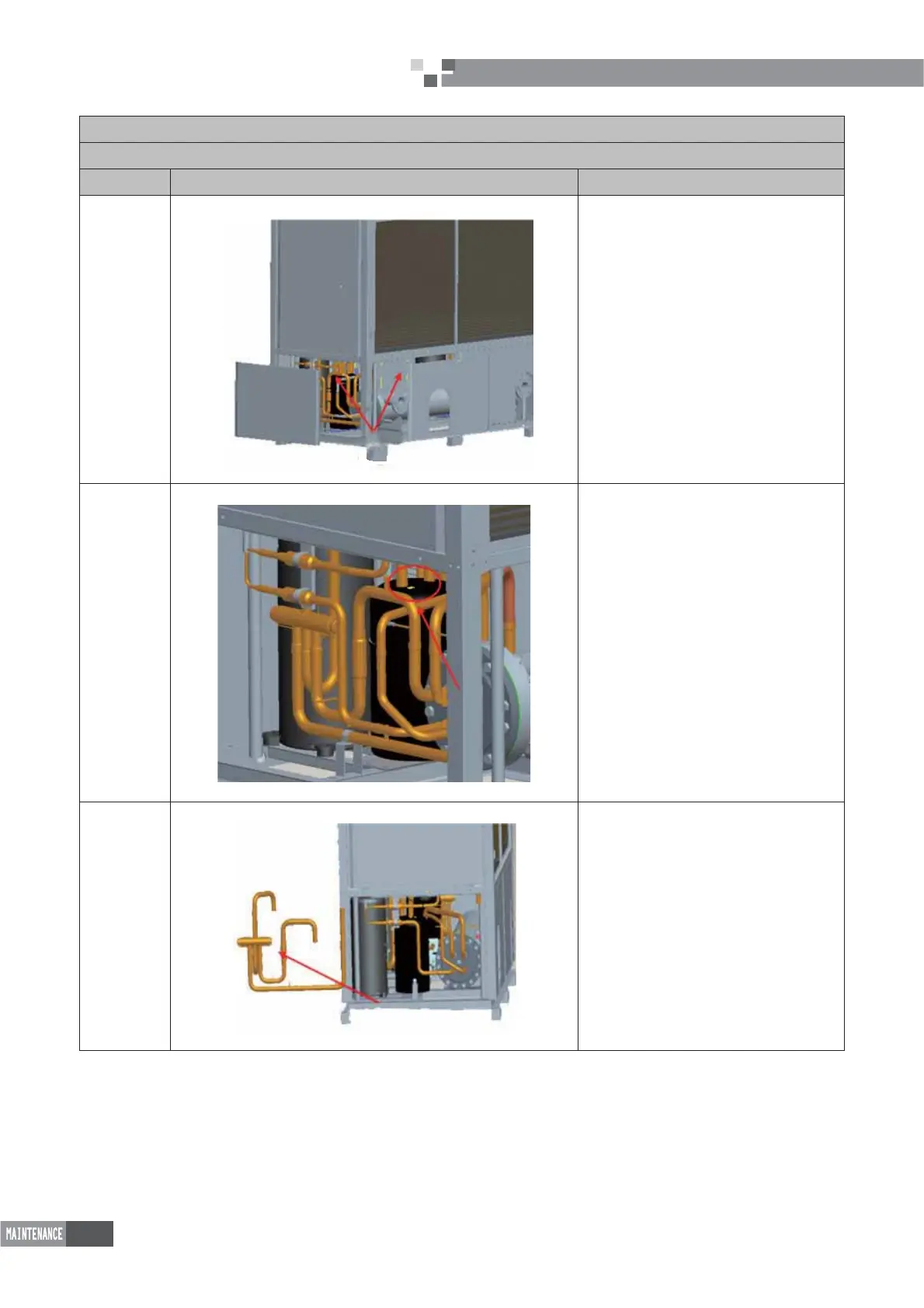

Steps Graphic Representation Instructions
1. Remove
the panel as
shown in the
ULJKW¿JXUH
panels
ƹ
Remove the panel as shown in the left
¿JXUHZLWKDVFUHZGULYHU
2. Disconnect
the
connection
pipe of the
accumulator
accumulator
ƹ
Unbrazer the connection pipe of the
accumulator.
3. Remove
the 4-way
valve
assembly if
necessary
4-way valve assemly
ƹ
Unbraze the 4-way valve assembly.
