Gree D Series Service Manual

41
D Series Modular Air-cooled Scroll Chillers
Service Manual
6KHOODQGWXEH+HDW([FKDQJHU
1RWH&KHFNWKHZDWHUV\VWHPDQGEHVXUHWKHVKHOODQGWXEHKHDWH[FKDQJHUVKDOOEHUHSODFHG$QGWKHQFXWRIIWKHSRZHUDQGUHFRYHU
the refrigerant.

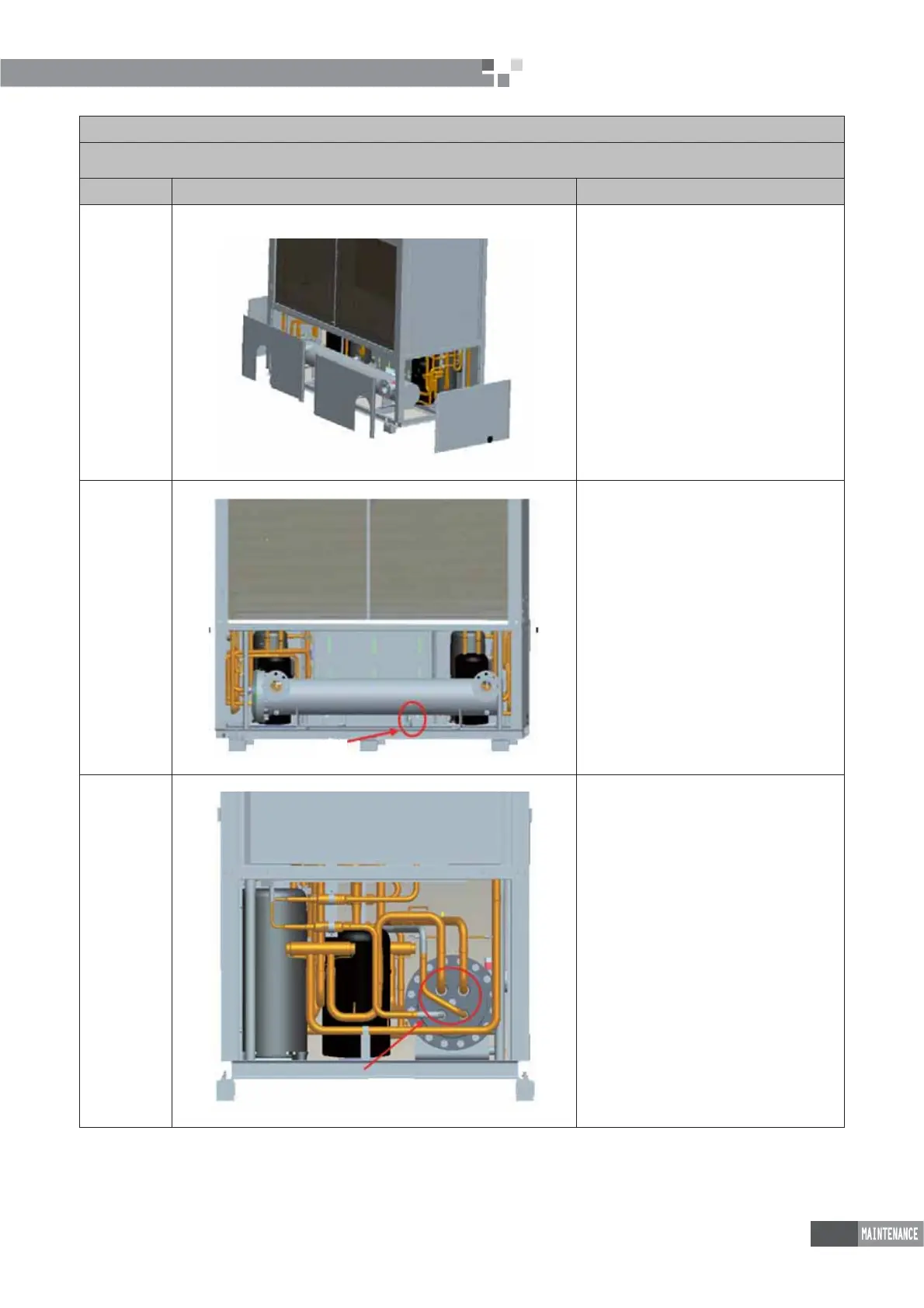

Steps Graphic Representation Instructions
1. Remove
the panel as
shown in the
ULJKW¿JXUH
ƹ
Remove four panels around the heat
H[FKDQJHUDQGWKHIUDPHLQ IURQWRIWKH
blind plug.
2. Loosen
the pipeline
connectors
and remove
the panel
outside of
the heat
H[FKDQJHU
Ⳇา
Blind plug
ƹ
Remove the pipeline
ƹ
Remove the metal sheets located
underside with a screwdriver.
ƹ
Loosen the blind plug and drain the water
inside the pipeline.
3. Unbraze
the pipeline
connecting
the heat
H[FKDQJHU
(Different heat
H[FKDQJHUV
vary in
structure so
it is better to
remember the
piping location
to prevent
misconnection
ƹ
Wrap the cooper pipe with wet cloth.
ƹ
Unbraze the pipelines connecting the heat
H[FKDQJHU
