6 Electric Control Cabinet

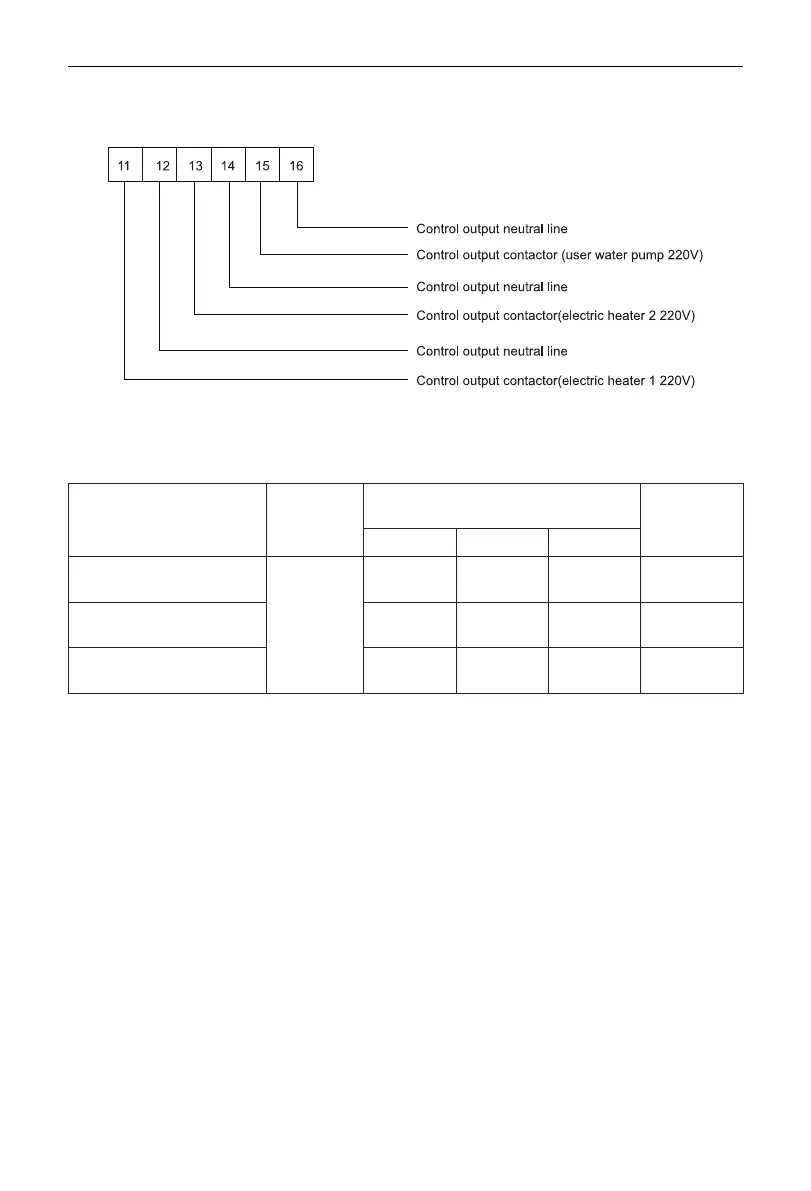

6.1 Wiring for Output Control Lines
Note:
The output control lines of the auxiliary electric heater 1, auxiliary electric heater 2 and the water pump
AC contactor are allowed to the terminal boards 11/12/13/14/15/16 of any module.
6.2 Specication of Power Cord and Air Switch
Model Power Supply
Min. sectional area of
the power cable (mm
2
)
Capability of
the Air Switch
(A)
Live Line Neutral Line Earth Line
LSQWRF65M/NaD-M(FB01)
380-400V 3N
50Hz
16 16 16 63
LSQWRF130M/NaD-M(FB01) 50 25 25 125
LSQWRF160M/NaD-M(FB01) 70 35 35 160
Notes:
(a) The specications of the breaker and power cable listed in the table above are determined based on
the maximum power (maximum amps) of the unit.
(b) The specications of the power cable listed in the table above are applied to the conduit-guarded multi-
wire copper cable (like, JYV copper cable, consisting of PV insulated wires and a PVC cable jacket)
used at 40
℃
and resistible to 90
℃
(see IEC60364-5-523:1999). If the working condition changes, they
should be modied according to the related national standard.
(c) The specications of the breaker listed in the table above are applied to the breaker with the working
temperature at 40
℃
. If the working condition changes, they should be modied according to the related
national standard.
