(3) Digital Inputs and Outputs

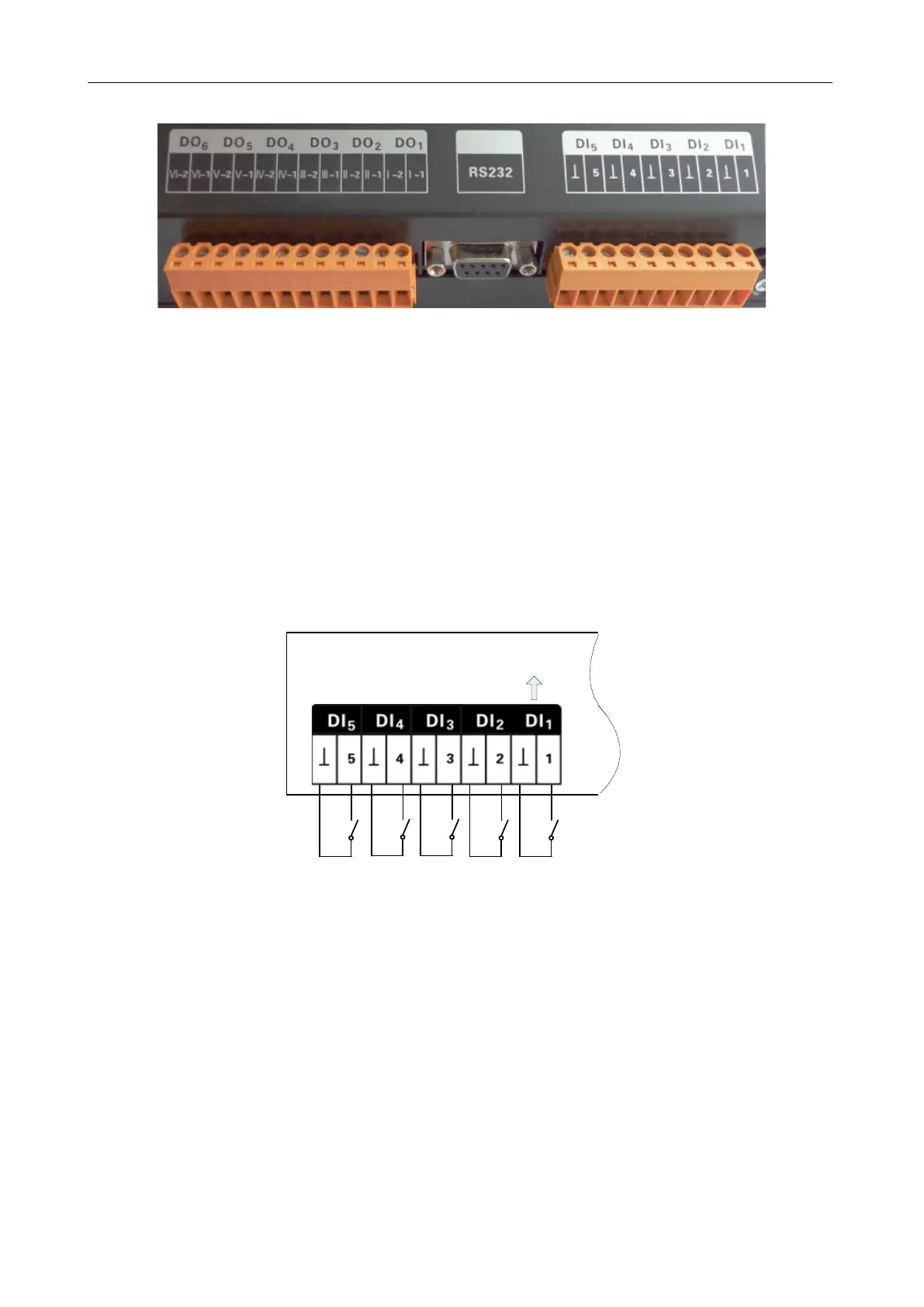

This gateway supports five DIs (digital inputs) and five DOs (digital outputs). There is another
reserved digital output DO 6.
DI1...DI5
Digital inputs: binary (0/1) digital signals, applicable to passive inputs.
DI 1: it is defined for the fire alarm input. When K1 is short circuited, DI 1 will input the binary signal
―1‖, which indicates that the Modbus gateway will stop the whole air conditioning system at once. When
K1 is opened, DI 1 will input the binary signal ―0‖, which indicates the whole system will resume the
normal operation.
DI2...DI5: they will be defined by the user.
E.g.: when K5 is closed, DI 5 will input the binary signal ―1‖ and input the binary signal ―0‖ when it is
opened.
DO1...DO5
Digital outputs: relay outputs, normally open contacts.
Maximum allowable power: 250VAC,3A; 30VDC,3A
E.g.: when DO 5 is input the binary signal ―1‖, its two contacts will be closed; when DO 5 is input the
binary signal ―0‖, its two contacts will be opened.
