GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
342
2.1.6 Software Debug
This part describes how to debug the software after it is successfully installed and the client can
communicate with the server (LAN-based access). For detailed software debug procedure, please refer
to the Help of the software.

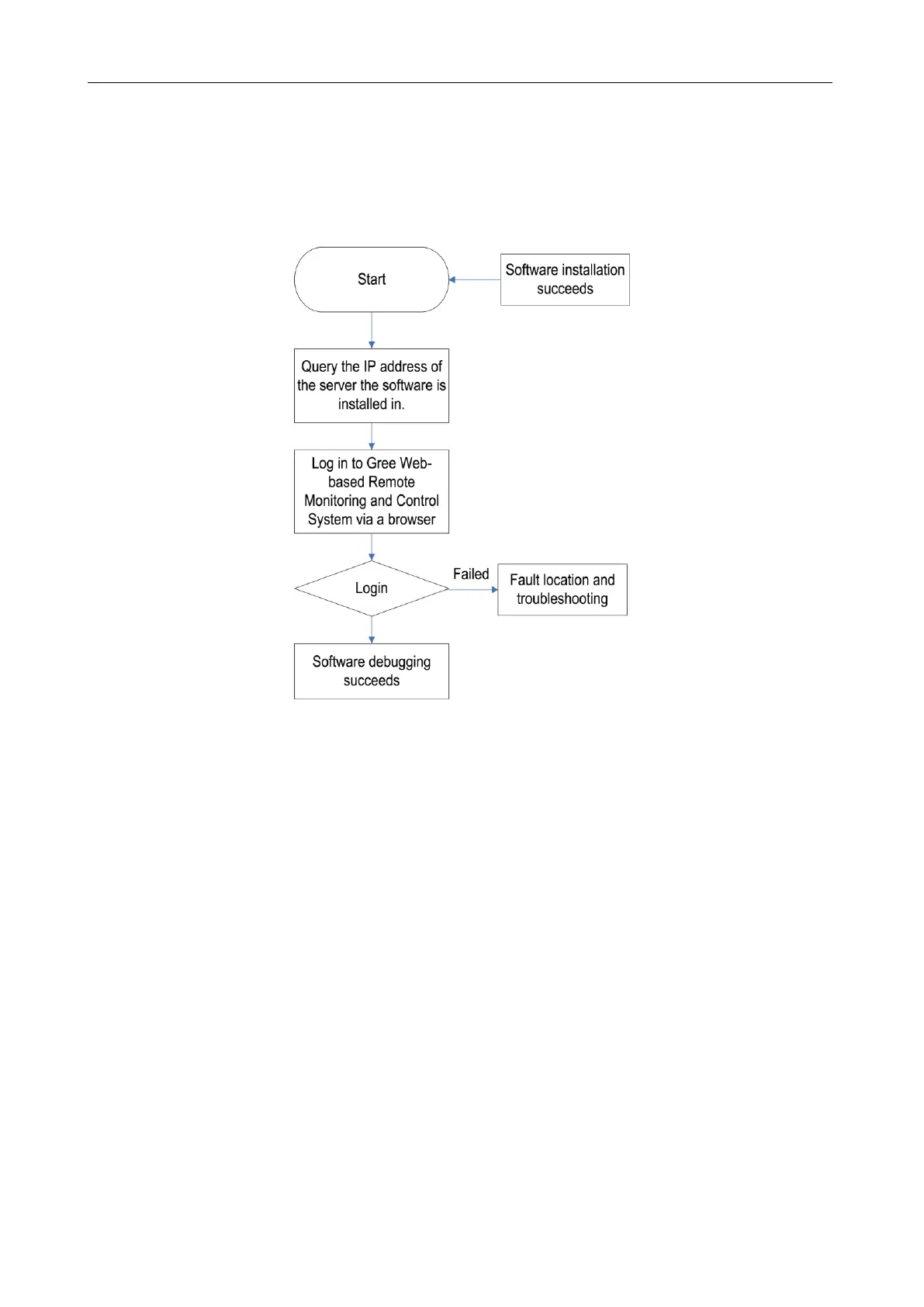

2.1.6.1 Debug Flowchart
This is a simplified software debug procedure. For details, read the following section.
2.1.6.2 Debug Procedure
1. Querying IP address of the server the software is installed in
The IP address of the server PC can be queried via the Network Neighborhood.
a. Right click ―Network Neighborhood‖ and choose ―Properties‖. ―Network Connect‖ page appears.
