GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
371

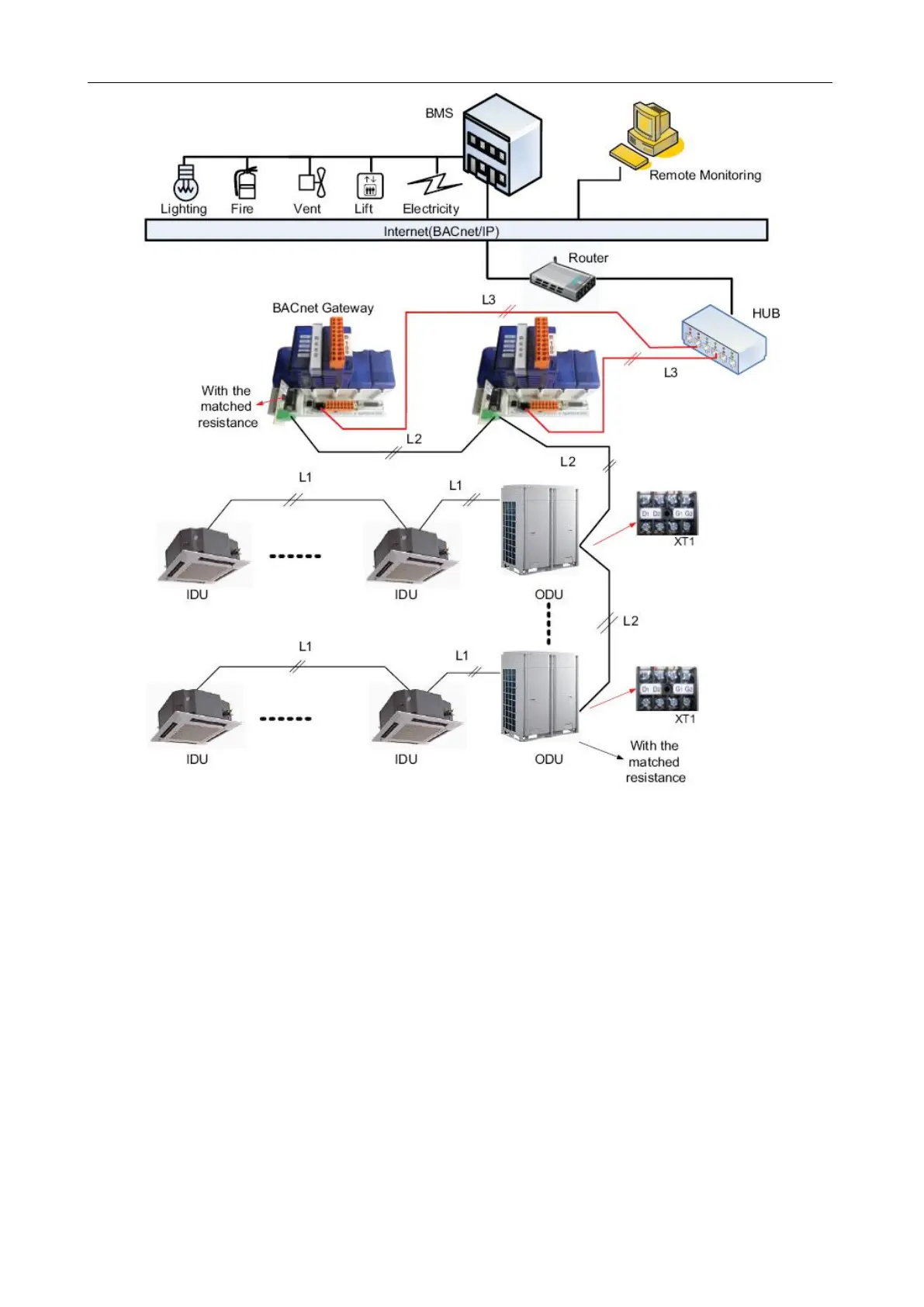

In the network above, L3 is the line for RJ45 and L2 is the twisted pair line.
Note: the total length of L2 can not exceed 500 m and a matched resistance shall be added at both
ends.
2.2.4. Hardware
2.2.4.1 BACnet Product Overview
BACnet gateway kits MG30-24/D2(B) are intended to realize the data exchange between the air
conditioning unit and BAS, and providing 8 I/Os (four inputs are E0, E1. E/A2, E/A3 and four outputs are
E/A4, E/A5, A6, A7). E0 is the fire alarm interface. The status of other I/Os is mapped to the specific
objects of the BACnet/IP bus and is defined by the user.
(1)BACnet Gateway TCP/IP (Default)
IP Address: 192.168.1.150;
Subnet Mask: 255.255.255.0;
