Gree GMV-120WM/B-F Service Manual

GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
53
Single module unit
Basic Module

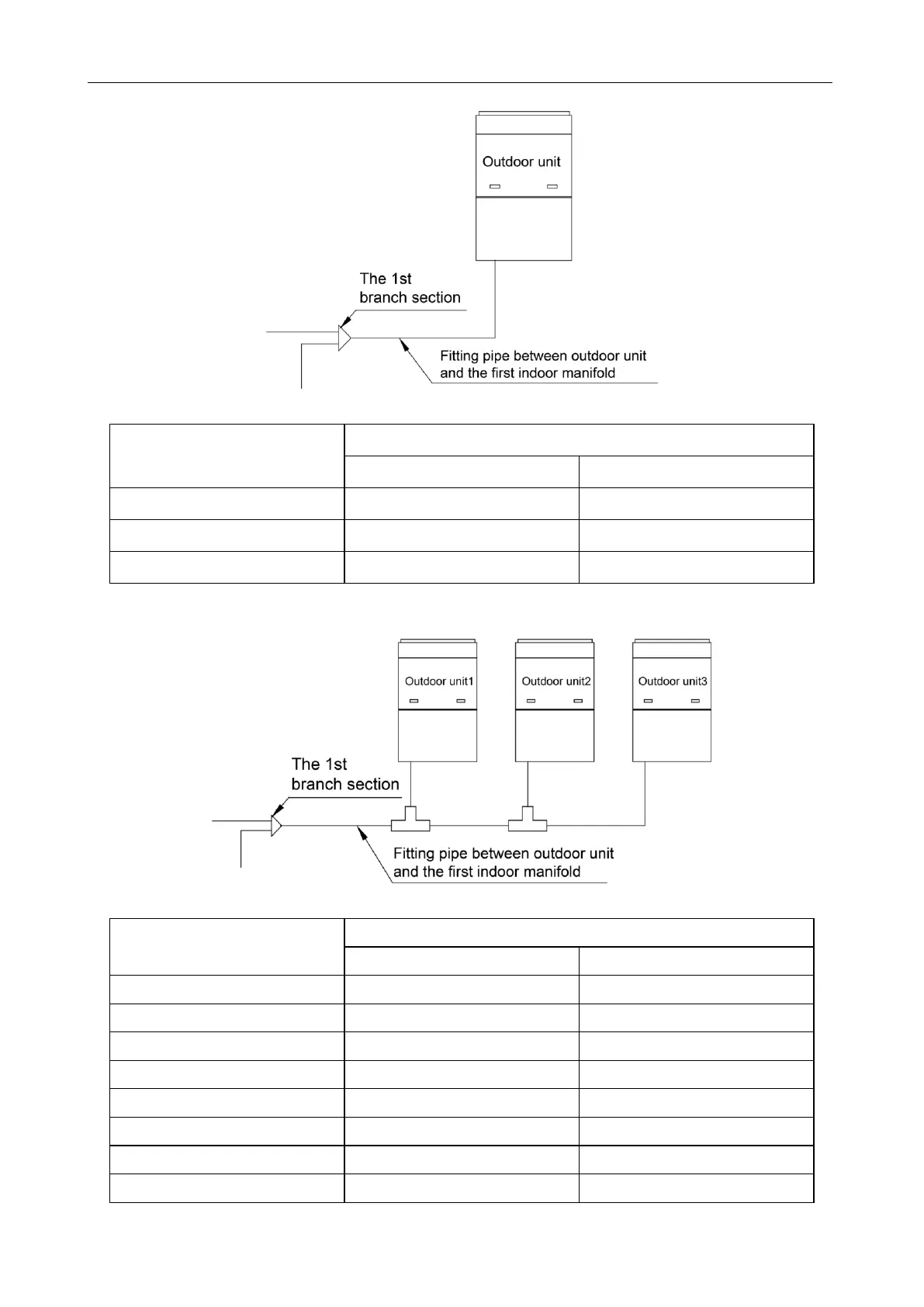

Pipe between ODU and the first branch of IDU
Gas Pipe mm(inch)
Liquid Pipe mm(inch)
GMV-72WM/B-F(U)
Φ19.05(3/4)
Φ9.52(3/8)
GMV-96WM/B-F(U)
Φ22.2(7/8)
Φ9.52(3/8)
GMV-120WM/B-F(U)
Φ28.6(1-1/8)
Φ12.7(1/2)
For multiple modules, the piping from ODU to the first branch of IDU is based on the total rated
capacity of outdoor modules.
Total rated capacity of outdoor
modules (multi-modular system)
Pipe between ODU and the first branch of IDU
Gas pipe size mm(inch)
Liquid pipe size mm(inch)
GMV-144WM/B-F(U)
Φ28.6(1-1/8)
Φ12.7(1/2)
GMV-168WM/B-F(U)
Φ28.6(1-1/8)
Φ15.9(5/8)
GMV-192WM/B-F(U)
Φ28.6(1-1/8)
Φ15.9(5/8)
GMV-216WM/B-F(U)
Φ28.6(1-1/8)
Φ15.9(5/8)
GMV-240WM/B-F(U)
Ф34.9(1-3/8)
Φ15.9(5/8)
GMV-264WM/B-F(U)
Ф34.9(1-3/8)
Ф19.05(3/4)
GMV-288WM/B-F(U)
Ф34.9(1-3/8)
Ф19.05(3/4)
GMV-312WM/B-F(U)
Ф34.9(1-3/8)
Ф19.05(3/4)
