Gree GMV-120WM/B-F Service Manual

GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
56

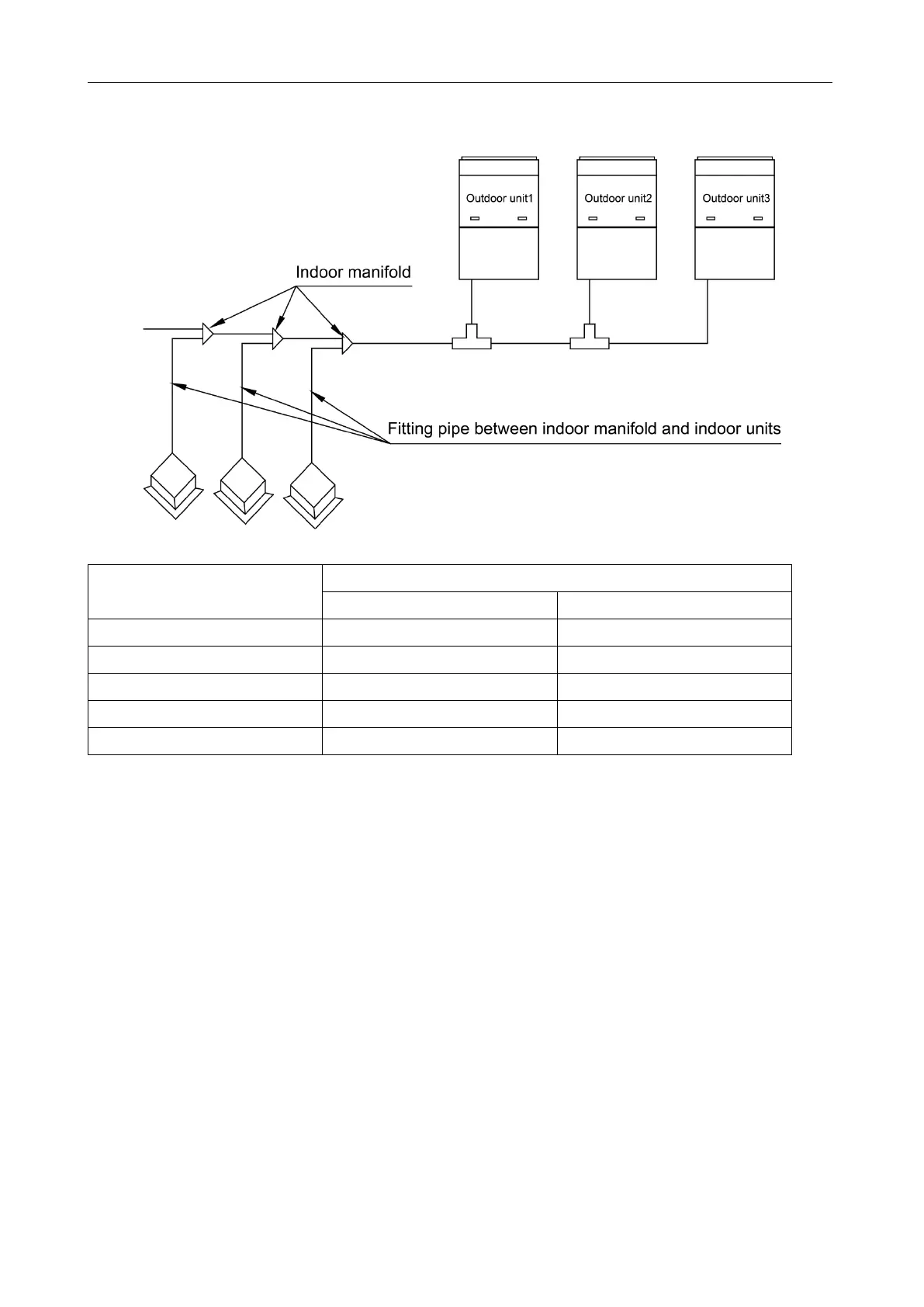

5.5.7 Fitting pipe between indoor unit and manifold
Manifold should be matched with fitting pipe of indoor unit.
Rated capacity of indoor unit
C(Btu/h)
Pipe between indoor branch and IDU
Gas Pipe mm(inch)
Liquid Pipe mm(inch)
C
≤
7500
Φ9.52(3/8)
Φ6.35(1/4)
7500
＜
C
≤
17100
Φ12.7(1/2)
Φ6.35(1/4)
17100
＜
C
≤
48500
Φ15.9(5/8)
Φ9.52(3/8)
48500
＜
C
≤
54600
Φ19.05(3/4)
Φ9.52(3/8)
54600
＜
C
≤
95500
Φ22.2(7/8)
Φ9.52(3/8)
