GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
77
based on the combination form of ODUs. For details, see the description on unit capacity configuration.
7.2.3 Procedure for Installing the Power Cable
(1) Knock off the knockouts used for threading the external power cable, fit the threading rubber ring
to the hole, and thread the power cable through the hole. Connect L1, L2, L3,of the power cable, and the
grounding cable to L1, L2, L3, on the power terminal block and the grounding screw next to the terminal
block respectively.
(2) Fasten and fix the power cable with ties (support heads).

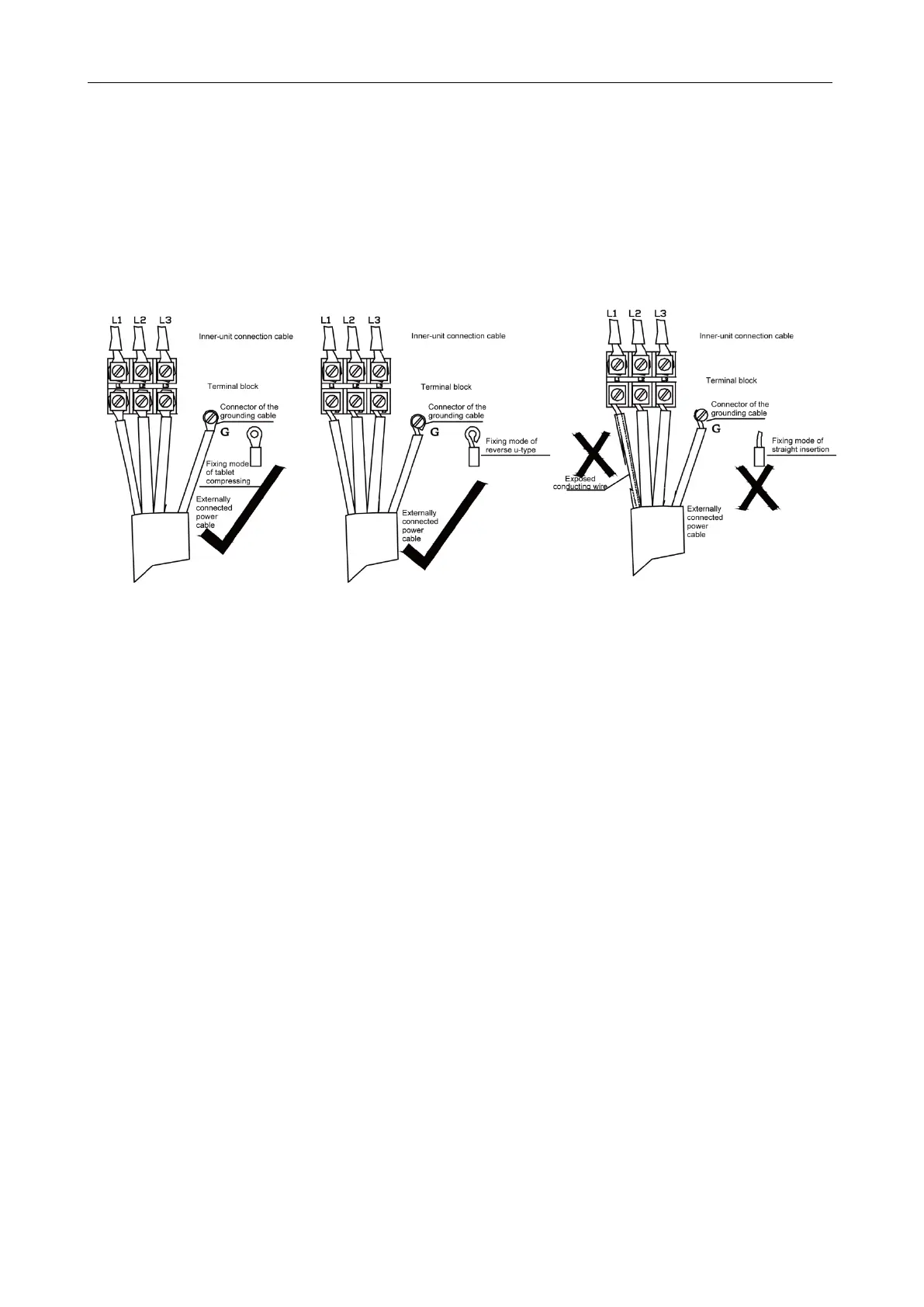

(3) Lay the power cable and communication cable for the ODU according to the following figures.
