7.3.3 Communication Cable Connection Method and Procedure
7.3.3.1 Communication cable connection between the IDUs and ODUs
The communication cable between the IDUs and ODUs is connected via interface D1/D2 on the
terminal block XT2. Connection modes for the single-module system and multi-module system are
shown in the following figures.

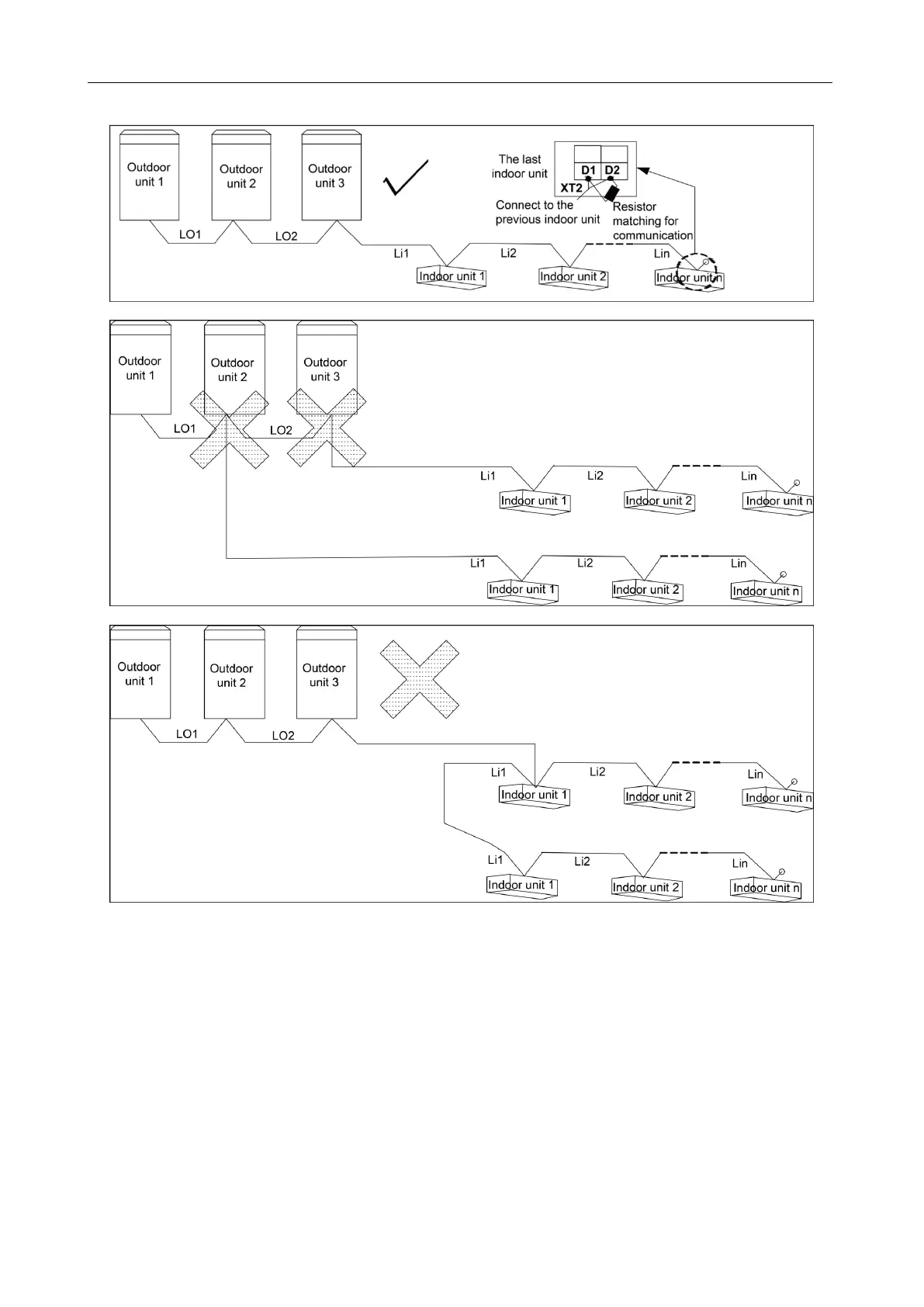

Communication cable connection for the single-module system:
