Gree GMV-120WM/B-F

GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
85
Indoor Unit Type
Model of Remote
Receiving LED Panel
Connection Wire
Type
Main Board Interface of
Corresponding Indoor Unit
Air duct-type indoor unit
JS05
Inter-board connecting
line (17 cores)
Dsp1 (interconnected to the 8-core
interface)
Dsp2 (interconnected to the 9-core
interface)
IDU type
Connection wire
Main board interface of corresponding IDU

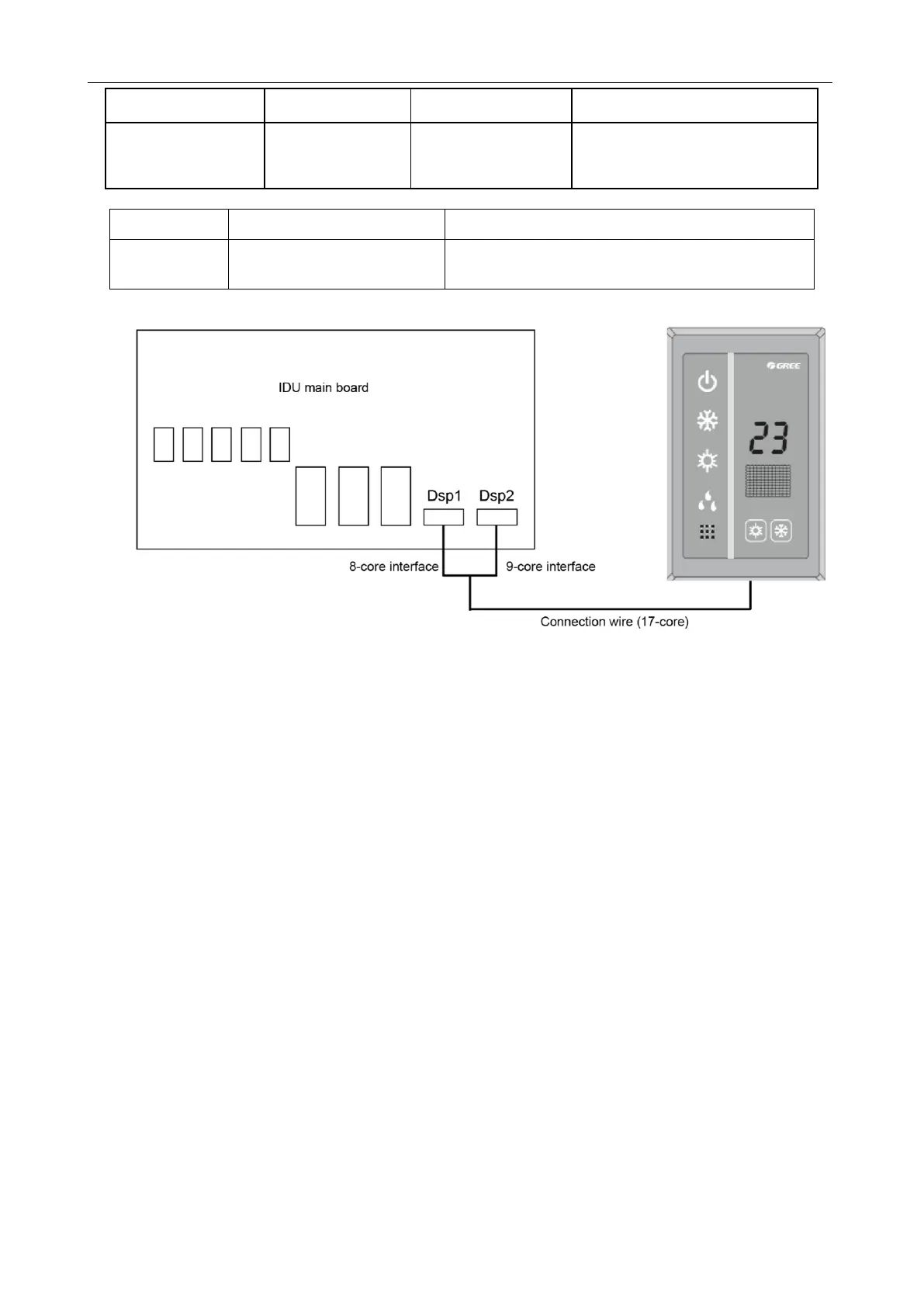

Duct type IDU
Between boards (17-core)
Dsp1 (direct to 8-core interface)
Dsp2 (direct to 9-core interface)
NOTICE!
① The wired controller and remote receiving LED panel can be used at the same time.
② Note to select a remote controller when a remote receiving LED panel is used.
