Gree GMV-24WL/C-T Service Manual

GREE DC Inverter Side Discharge VRF Ⅱ for North America
128
Removal operation of compressor
Remark: Before removing the compressor, please make sure that there’s no refrigerant inside the pipeline and the
power is disconnected.
Process
Operation Instruction

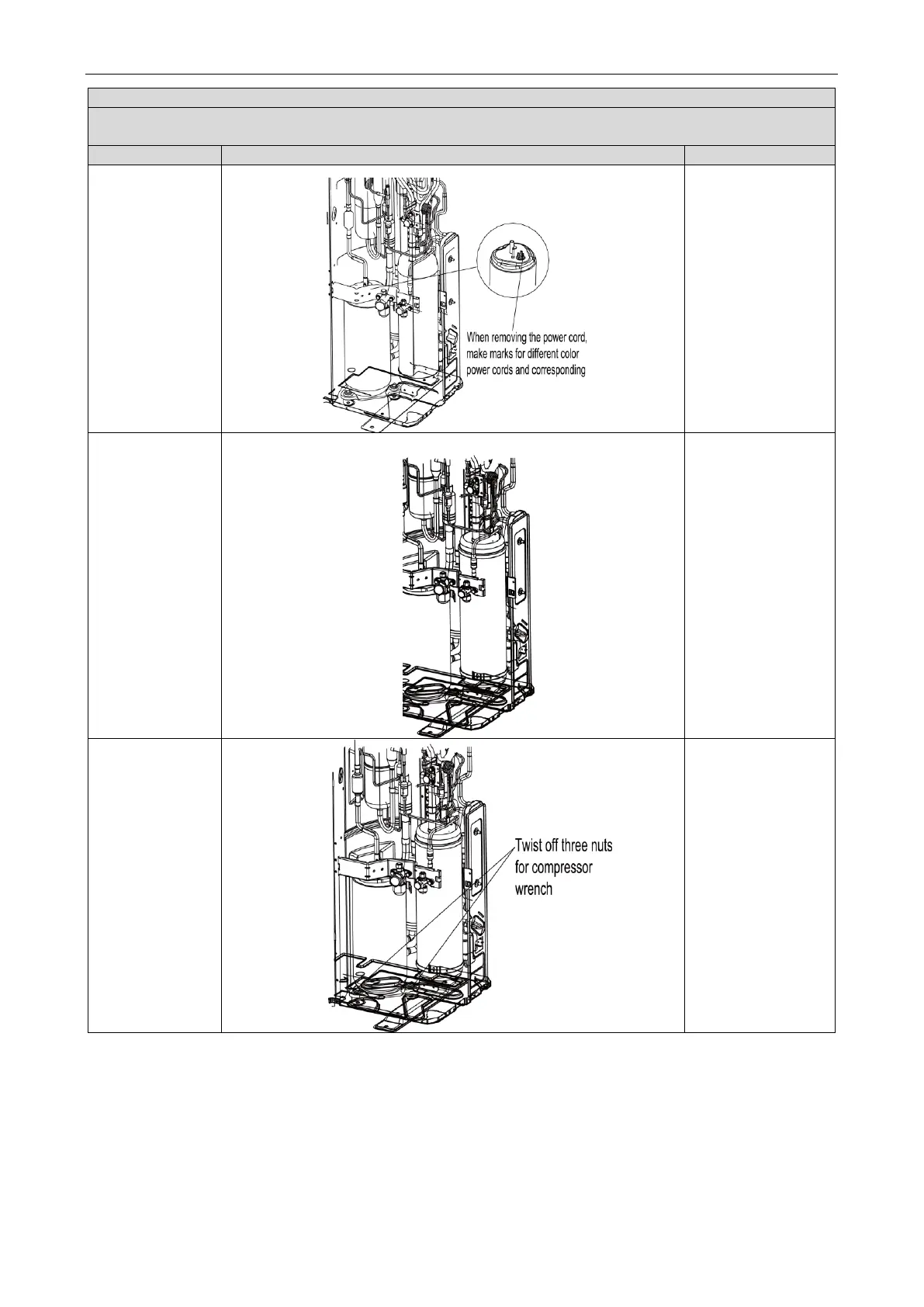

1. Remove wiring
cover of
compressor
Loose screws fiixng
the compressor with
screwdriver
Then pull out the
power cord
Note: When
removing the power
cord, make marks for
different color power
cords and
corresponding wiring
terminals for wrong
terminal.
2. Disconnect
compressor and
connected
pipeline
Weld suction pipe
and discharge pipe of
compressor
then pull out the
connection pipe from
the compressor
Note: During welding
process, do not let
the flame burn out
other parts.
3. Loose nuts
fixing the foot of
compressor
Twist off the nuts for
compressor with
wrench
