GREE DC Inverter Side Discharge VRF Ⅱ for North America
143
(3) Model: GMV-36WL/C-T(U)
、
GMV-48WL/C-T(U)

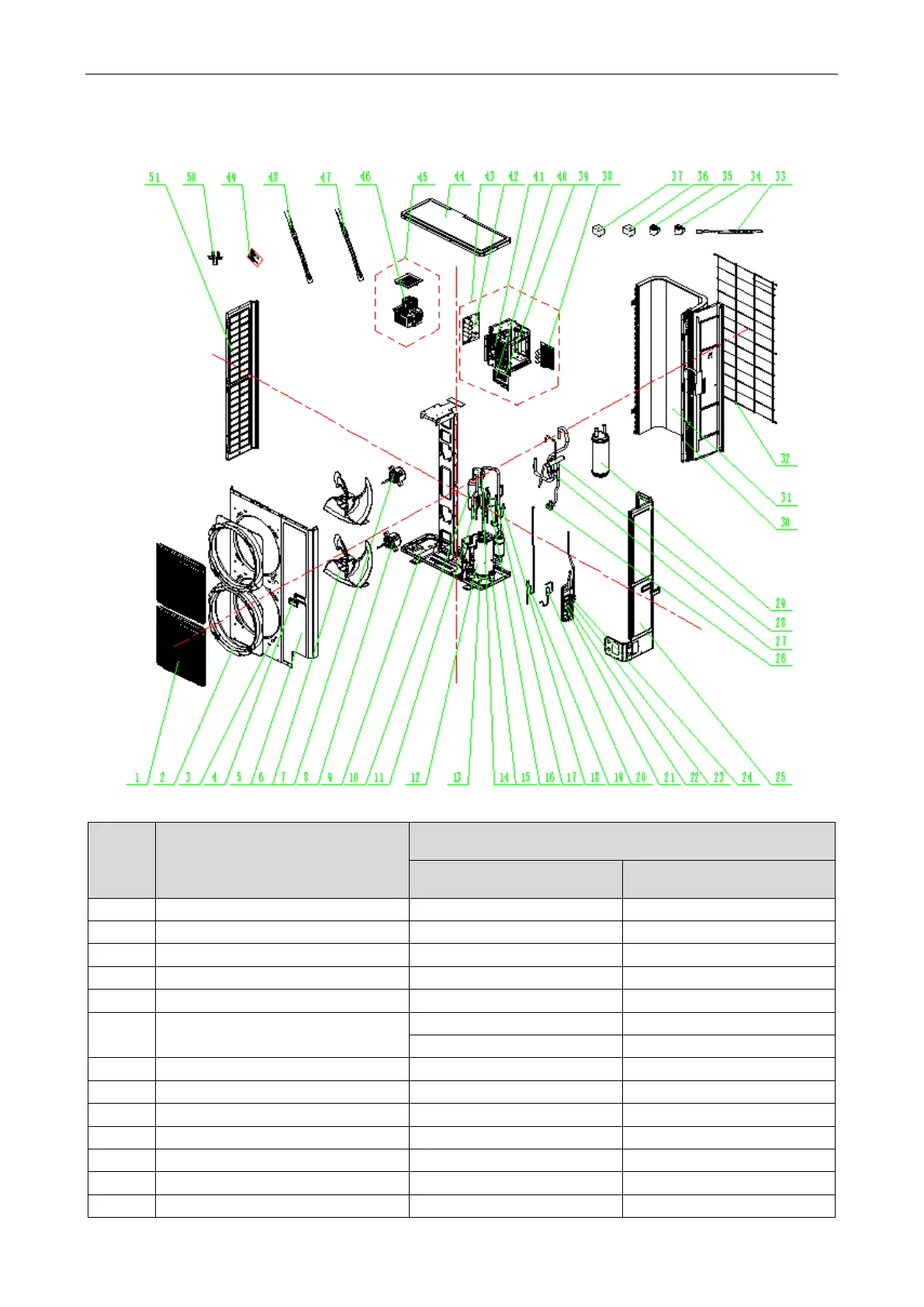

Exploded view
Parts list
NO.
Name of Part
GMV-36WL/C-T(U)
GMV-48WL/C-T(U)
Product Code
CN850W1070
CN850W1080
1
Front Grill
01314100013
1
2
Diversion Circle
06123401
1
3
Cabinet
390002060018
1
4
Handle
765152128
1
5
Front Side Plate
765100047
1
6
7
Axial Flow Fan
Brushless DC Motor
43120122
1
01394100545
1
8
Brushless DC Motor
01264100008
1
9
Chassis
100002068219
1
10
Oil Separator
300027060121
1
11
Strainer
300027060346
1
12
Compressor and Fittings
42200000001501
1
13
Compressor Gasket
422000060004
1
14
Pressure Sensor
300020000003
1
