Insulate the pipe clamp and the drain hose using heat insulation sponge.

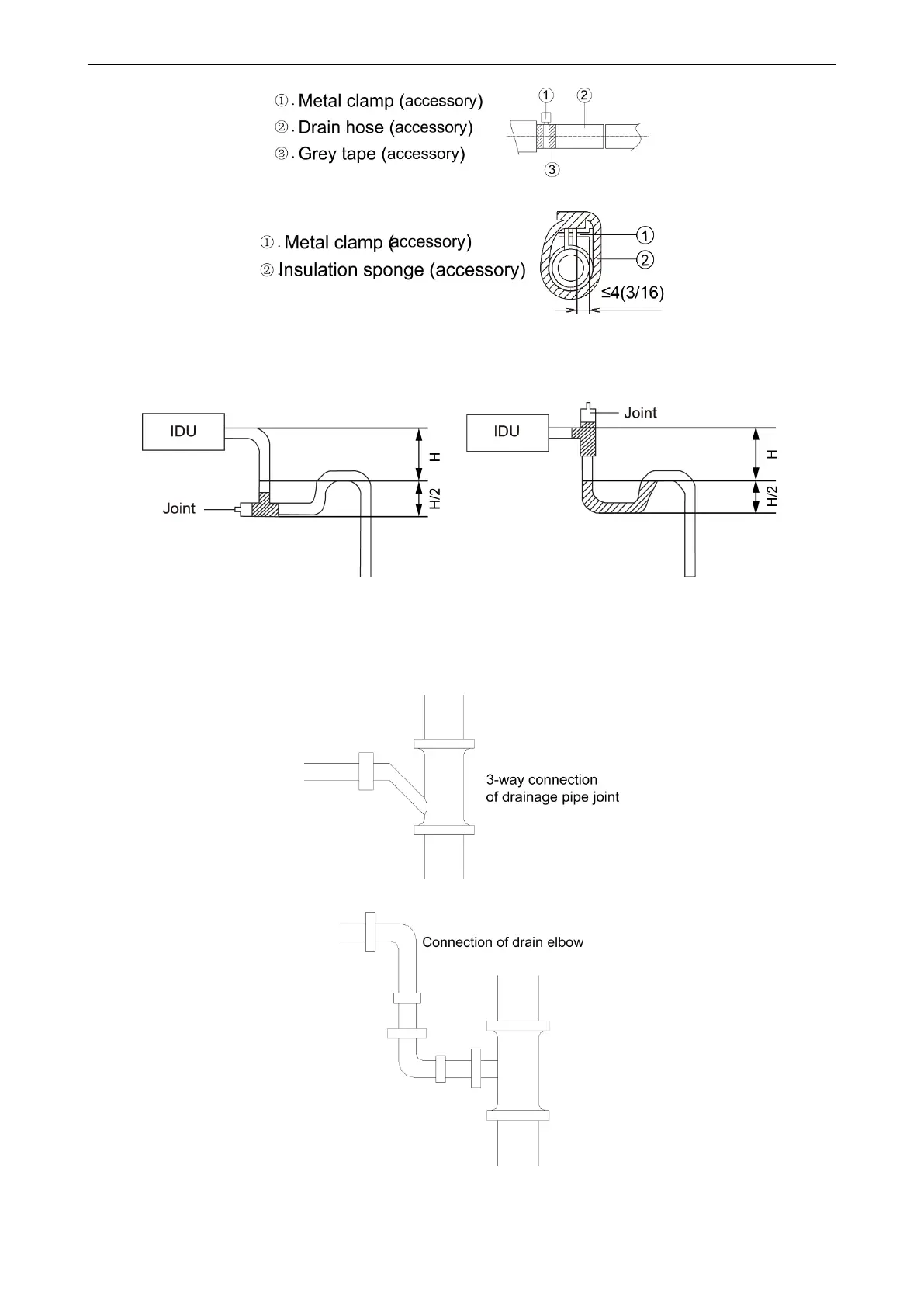

Install water trap as shown below.
Install one water trap for each unit.
Installation of water trap shall consider easy cleaning in the future.
Connection of drainage branch pipe to the standpipe or horizontal pipe of drainage main pipe
The horizontal pipe cannot be connected to the vertical pipe at a same height. It can be
connected in a manner as shown below:
NO.1: 3-way connection of drainage pipe joint
NO.2: Connection of drain elbow
NO.3: Connection of horizontal pipe
