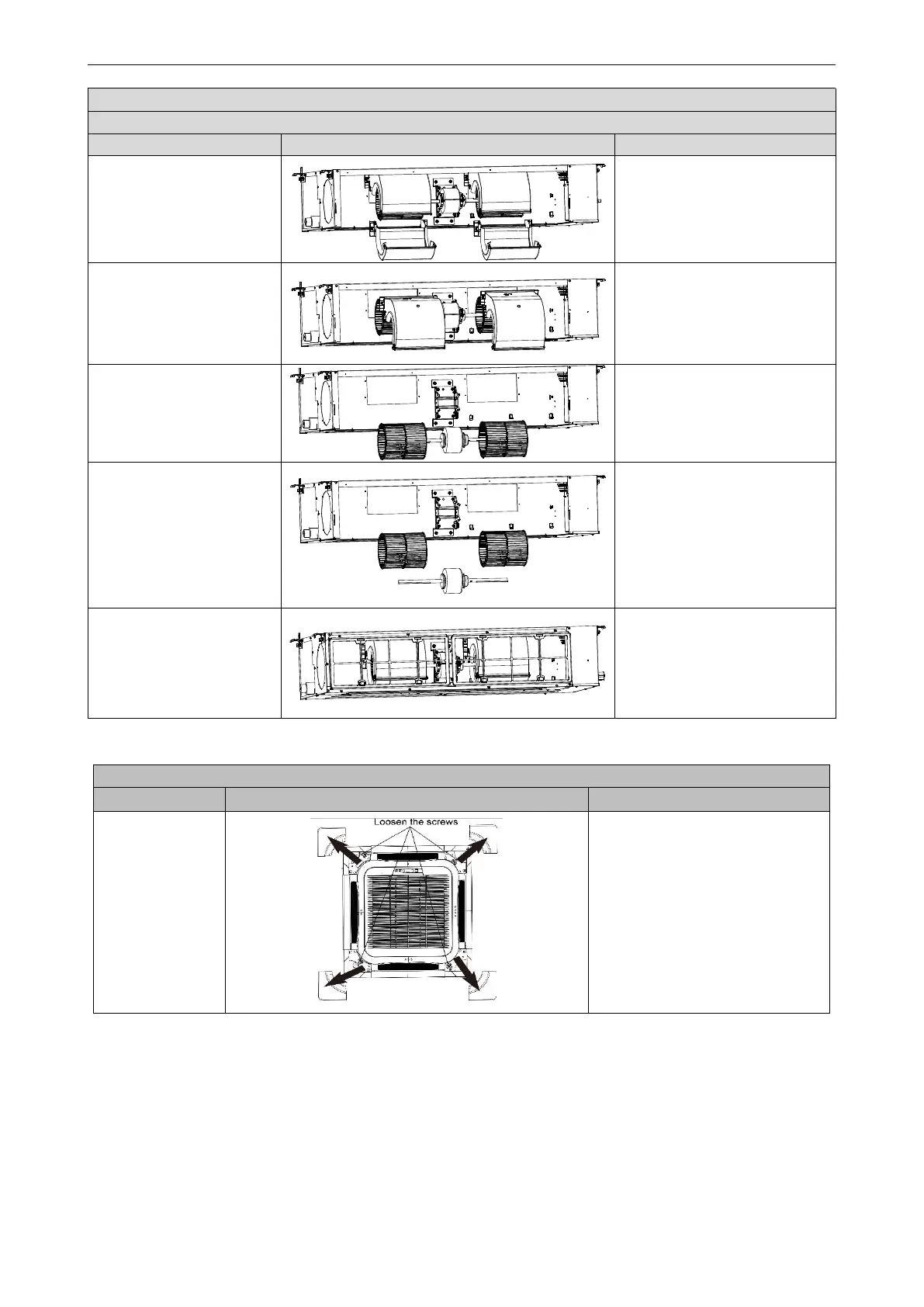

Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
4. Remove the rear volute
casing.
●Loosen the fasteners that
connect the rear volute casing
with the front volute casing and
remove the rear volute casing.
5. Remove the front volute
casing.
●Use a screwdriver to unscrew
the front volute casing and then
remove the volute casing.
6. Loosen the centrifugal fan
and motor.
●Use a hexagon to unscrew the
centrifugal fan and loosen the
fasteners of the motor.
7. Remove the motor.
●Remove the motor from the
support and remove the
centrifugal fan from the motor
axle. Then, remove the motor.
●For motors that are
accompanied with supports, the
supports need removing as well.
8. Install a new motor.
●Assemble units based on the
reverse order of this procedure
and power on the units for test.
4.15 360°Air Discharge Compact Casssette Type Indoor Unit
Motor and fan
Step
Diagram
Operation Procedure
1. Remove the
front panel.
●Turn off the power supply of indoor
unit.
●Push the 4 corner plates in the
directions shown by the arrows.
●Loosen the screws and remove the
front panel.
