Motor and fan
Precondition: The power supply has been disconnected.
Procedures
Diagrams
Operating Instructions
(4) Reinstall
the fan.

Place the motor at the proper
position.

Tighten screws fixing the motor
and fan blades.

Tighten screw bolts fixing the
motor bracket.

After the installation,
reassemble the unit as before.
4.13 1-way Cassette Type Indoor Unit

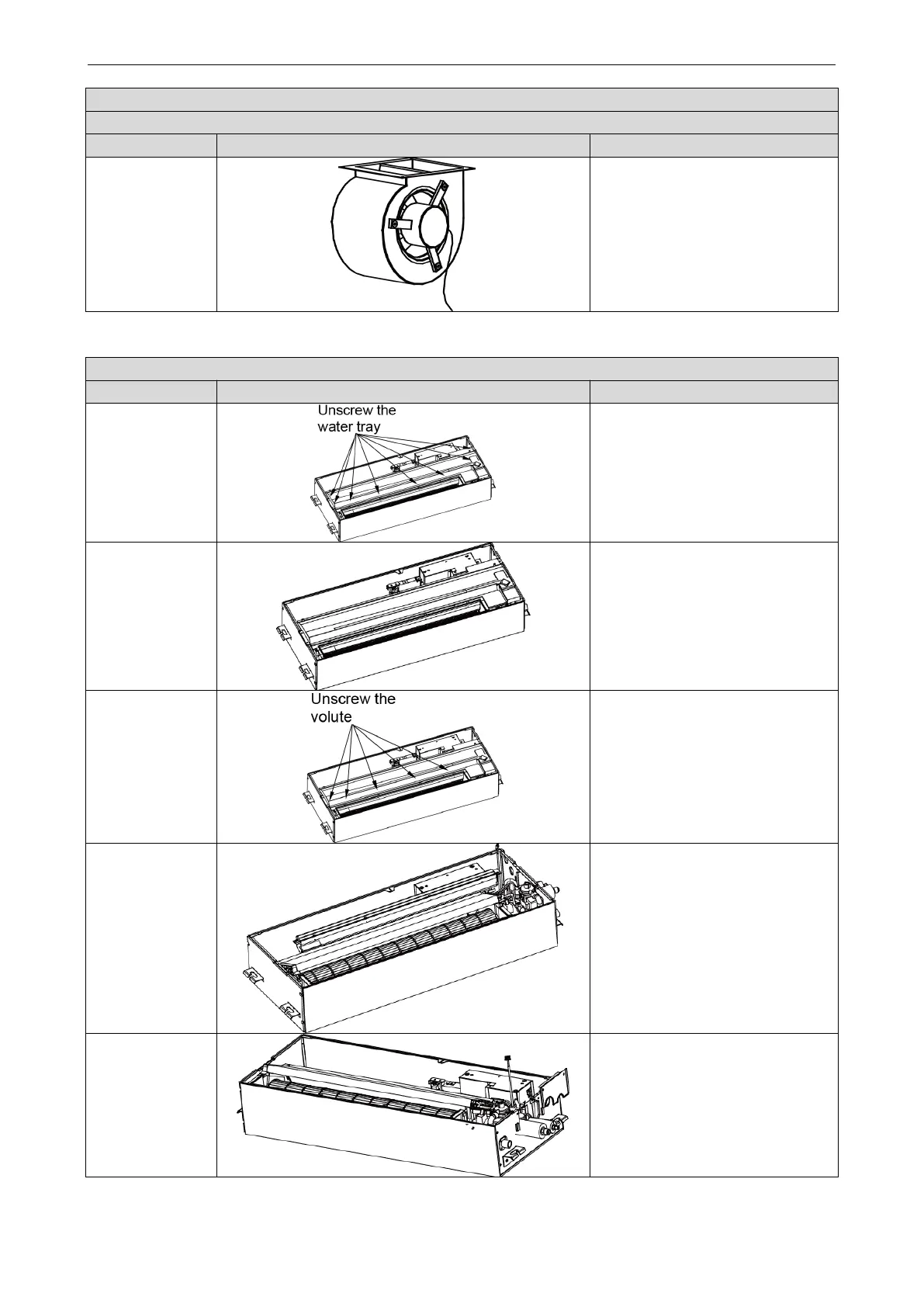

Motor and fan
Step
Diagram
Operation Procedure
(1) Unscrew
the water
tray.

Use a screwdriver to unscrew
the water tray.
(2) Remove
the water
tray.

Remove the water tray.
(3) Unscrew
the volute
tongue.

Use a screwdriver to unscrew
the volute tongue.
(4) Remove
the volute
tongue.

Remove the volute tongue.
(5) Unscrew
the outlet
board.

Use a screwdriver to unscrew
the outlet board and then
remove the board.
