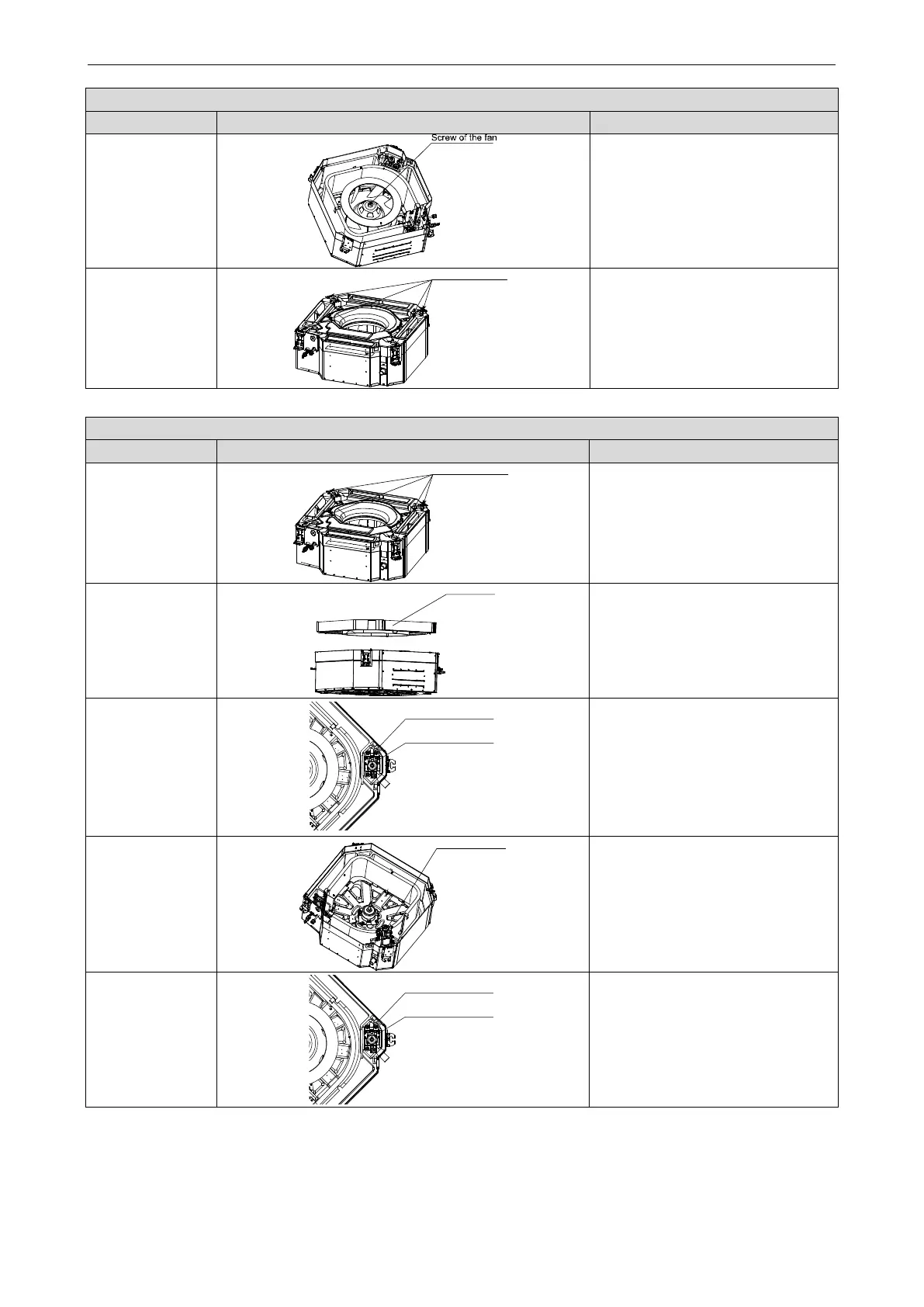

GREE Multi Variable Air Conditioners Indoor Unit
163
Motor and fan
Step
Diagram
Operation Procedure
(8) Install and
screw the
centrifugal
fan.
Install the centrifugal fan and
use a wrench to screw the
centrifugal fan.
(9) Install and
screw the
water tray.
Tighten the screws
Use a screwdriver to screw the
water tray.
Pump
Step
Diagram
Operation Procedure
(1) Unscrew
the water
tray.
Loosen the screws
Use a screwdriver to unscrew
the water tray.
(2) Remove
the water
tray.
Water tray
Replace the water tray.
(3) Remove
the
drainage
duct and
unscrew the
pump.
2.Unscrew the outlet pipe
1.Remove the drainge duct
Remove the drainage duct and
use a screwdriver to unscrew
the pump.
(4) Replace the
pump.
Replace the pump
Replace the pump.
(5) Connect
the
drainage
duct and
screw the
new pump.
1.Screw the outlet pipe
2.Screw the drainge duct
Connect the drainage duct and
use a screwdriver to screw the
new pump.
