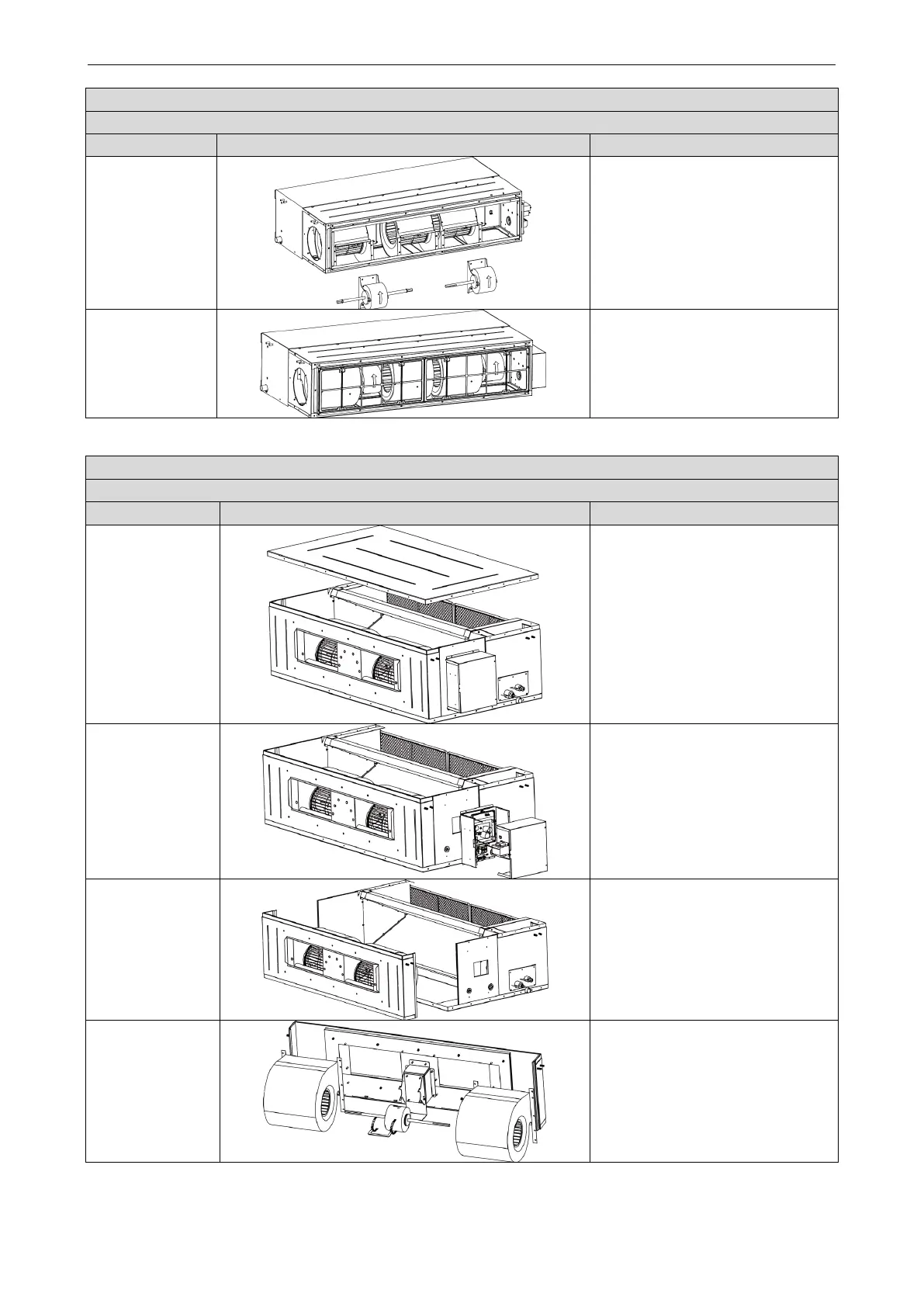

Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
(4) Remove
the motor.

Remove the motor from the
support and remove the louver
from the motor axle. Then,
remove the motor.
(5) Install a
new motor.

Assemble units based on the
reverse order of this procedure
and power on the units for test.
GMV-NDX54P/A-T(U) / GMV-NDX72P/A-T(U) / GMV-NDX96P/A-T(U)
Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
(1) Remove the
cover plate
component.

Use a screwdriver to unscrew
the cover plate component.
(2) Remove the
line connecting
to the motor.

Use a screwdriver to unscrew
the electric box cover.

Remove from the master board
the line connecting to the motor
and remove the tie.
(3) Disassemble
the centrifugal
fan.

Use a screwdriver to unscrew
the centrifugal fan.
(4) Remove the
centrifugal fan.

Use a hexagon to unscrew the
centrifugal fan and remove the
centrifugal fan from the motor
axle.
